Gelcoat repair kits: do they actually work, and which type fits your damage?

Gelcoat repair kits work - for the right job. The honest answer is that three fundamentally different product types all carry the "gelcoat repair kit" label, and each has a narrow window where it performs well and a much wider window where it falls short. Pick the wrong type for your damage and you spend a Saturday doing work that either fails in a season or never looks right from the start. Pick the right one and a chip or gouge that has been staring at you for two years disappears in an afternoon.

This guide covers the three kit families, what each genuinely handles, and the stop-lines where a kit stops being the right tool. For a head-to-head product comparison with price and color-count columns, our gelcoat repair guide covers the full process and specific brands side by side.

The three kit families

Walk down any chandlery aisle and the kits look similar: squeeze tubes or small cans, some pigment, a catalyst or hardener. Under that surface similarity are three completely different chemistries with different cure behaviors, different maximum repair depths, and different finish expectations.

Pre-mixed squeeze kits (MagicEzy style)

These are single-component products - no mixing, no catalyst to measure, no pot life countdown. MagicEzy 9 Second Chip Fix is the category reference: a pre-catalyzed urethane-hybrid filler that comes in a squeeze tube and air-cures without PVA or wax. The application instructions call for overfilling the damage, then leveling with the included tool held at 90 degrees with a very light touch. For deep chips, the protocol is to build up in 6mm (1/4-inch) layers with a 2-hour wait at 70°F between each layer; maximum strength arrives at 14 days.

The format comes in 11 colors. The notable quirk: the product cures matte. Achieving a gloss finish requires a separate top-coat product (the same brand makes a Hairline Fix designed for that purpose). That extra step is easy to miss when you buy the kit.

Where squeeze kits earn their keep: anything smaller than roughly a quarter - surface chips, dock-rash dings, hairline stress marks on the surface layer. They are genuinely fast, require almost no setup, and are forgiving of first-time users. Where they fall apart: large gouges where multiple layers compound the color-inconsistency risk, and any damage that has reached the structural laminate underneath, where this category does nothing for the laminate.

Pigmented polyester gelcoat kits (TotalBoat, Interlux style)

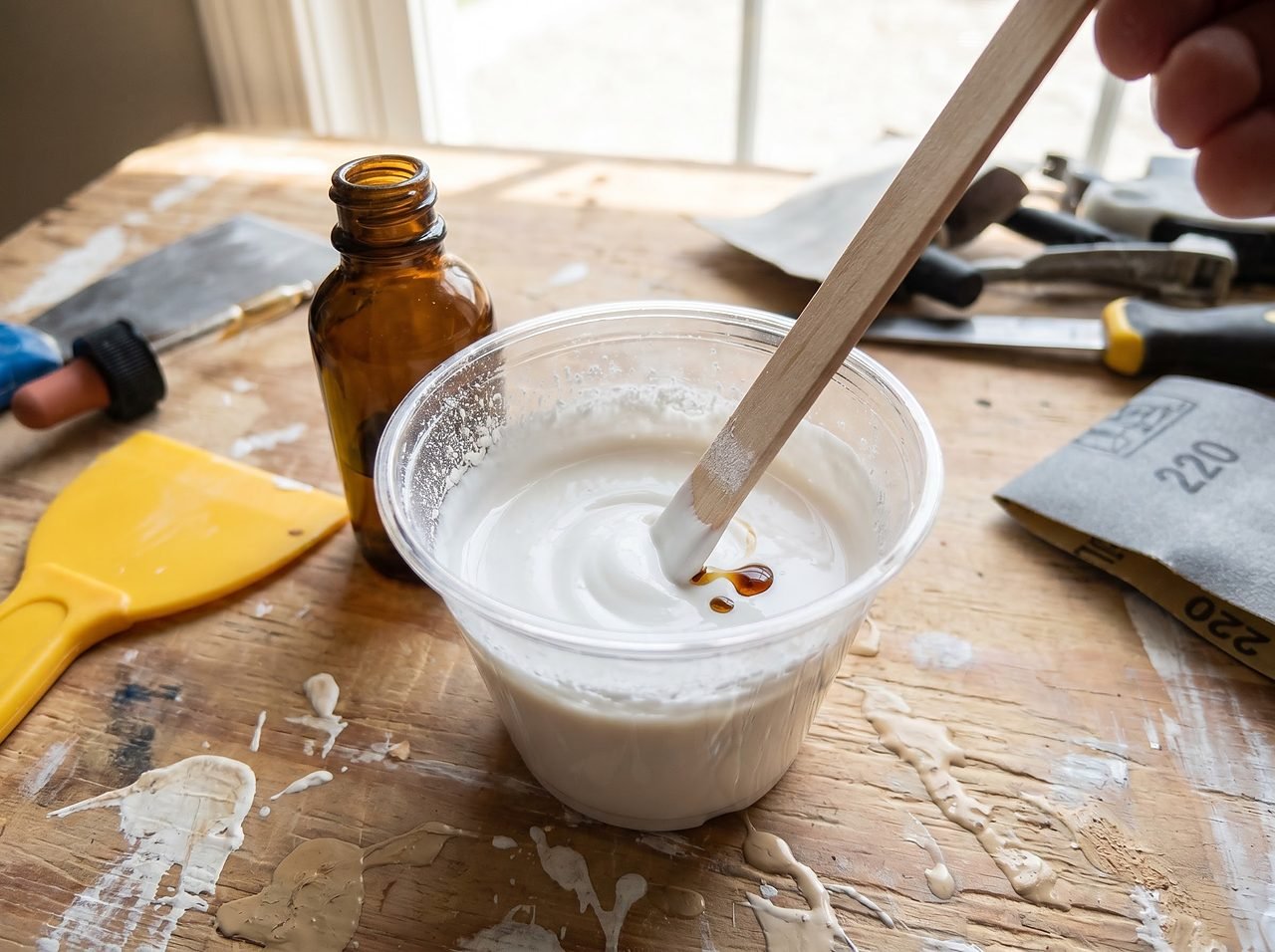

These are two-part systems: pigmented polyester resin plus an MEKP catalyst you add yourself. TotalBoat's gelcoat calls for 2% MEKP (roughly 14-16 drops per ounce) at 77°F, giving a working time of 10-15 minutes and a gel time of 8-12 minutes. At cooler temperatures the catalyst percentage shifts - as low as 1% to extend working time, up to 3% in cold conditions to keep the reaction moving. Application temperature range is 50-95°F, with 70-80°F the sweet spot.

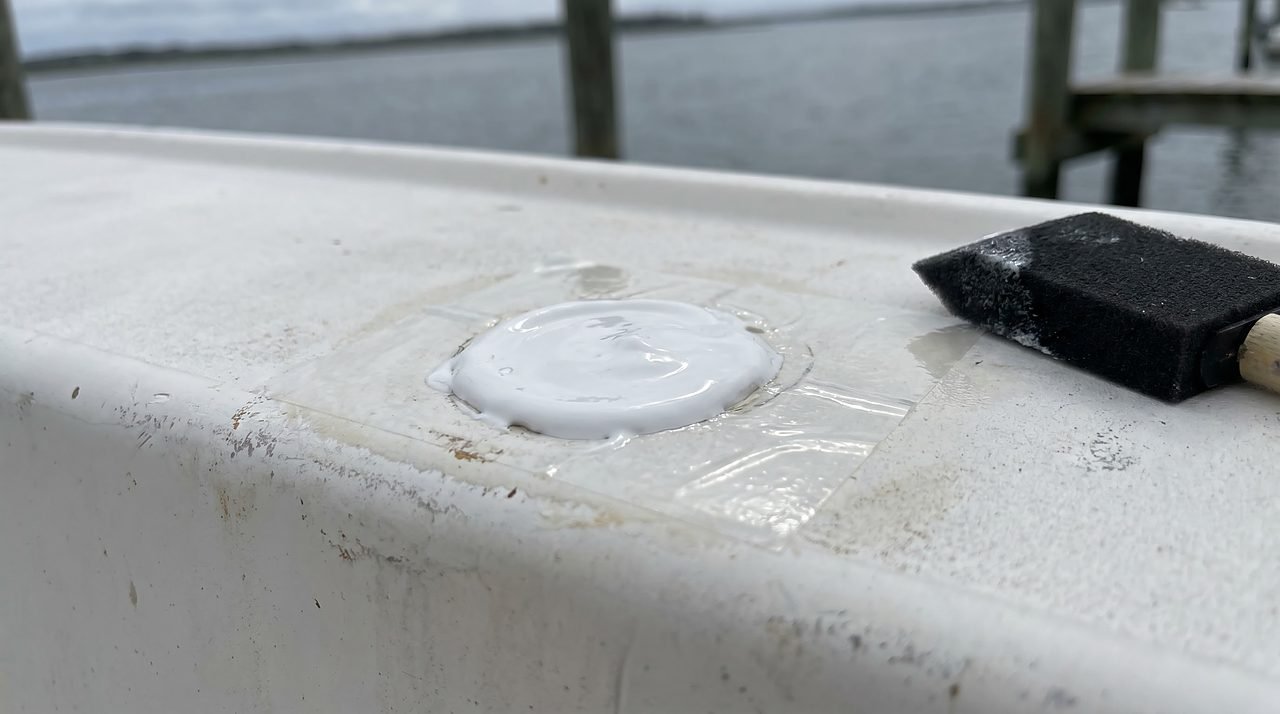

The single most common reason these kits fail: skipping the air-inhibition step on the final coat. Polyester resin is air-inhibited, meaning the surface layer stays tacky when it cures exposed to air. Three approaches solve this. Duratec Clear Hi-Gloss Additive mixed into the gelcoat at a 1:1 ratio is the approach preferred for marine use because it also improves gloss. Styrene wax added at 5% on the final coat only causes paraffin to migrate to the surface on cure and form a tack-free barrier - this layer requires 400-grit sanding for a gloss result. PVA release film sprayed onto the gelcoat immediately after application blocks air contact and washes off with soap and water after cure. Skipping all three is why newly patched gelcoat sits permanently tacky on boats across every marina. Our guide on fixing tacky gelcoat covers remediation for exactly this failure.

Proper wet-film thickness is 25 mils, curing to 18-22 mils. For deeper fill, a thickening agent (silica or talc powder mixed into the catalyzed gelcoat) converts the liquid to a paste that stays in place without sagging on vertical surfaces. Without the thickener, liquid gelcoat simply runs out of a vertical gouge before it gels.

These kits handle a much wider damage range than squeeze kits: chips through the full gelcoat layer, surface-level spider cracks that need opening and filling, and any area where you want genuine gelcoat chemistry on the repair surface. They are the correct choice for cosmetic surface work on a polyester hull. The repair guide on deep gelcoat gouge repair walks through the full prep and filling sequence for larger damage.

Two-part epoxy fills (MarineTex style)

MarineTex is a 5:1 (by volume) epoxy putty - 5 parts resin, 1 part hardener. At 72°F the working time is 30 minutes when spread thin on a mixing board; a concentrated mass generates its own heat and may reduce that to 15-20 minutes. Full cure is 24 hours at 72°F and 48 hours at 60°F. Application below 55°F is not recommended. Maximum applied thickness is 1.5 inches. The white formulation accepts coloring agents at up to 5%, though the gray version is intended for machinery rather than cosmetic hull work.

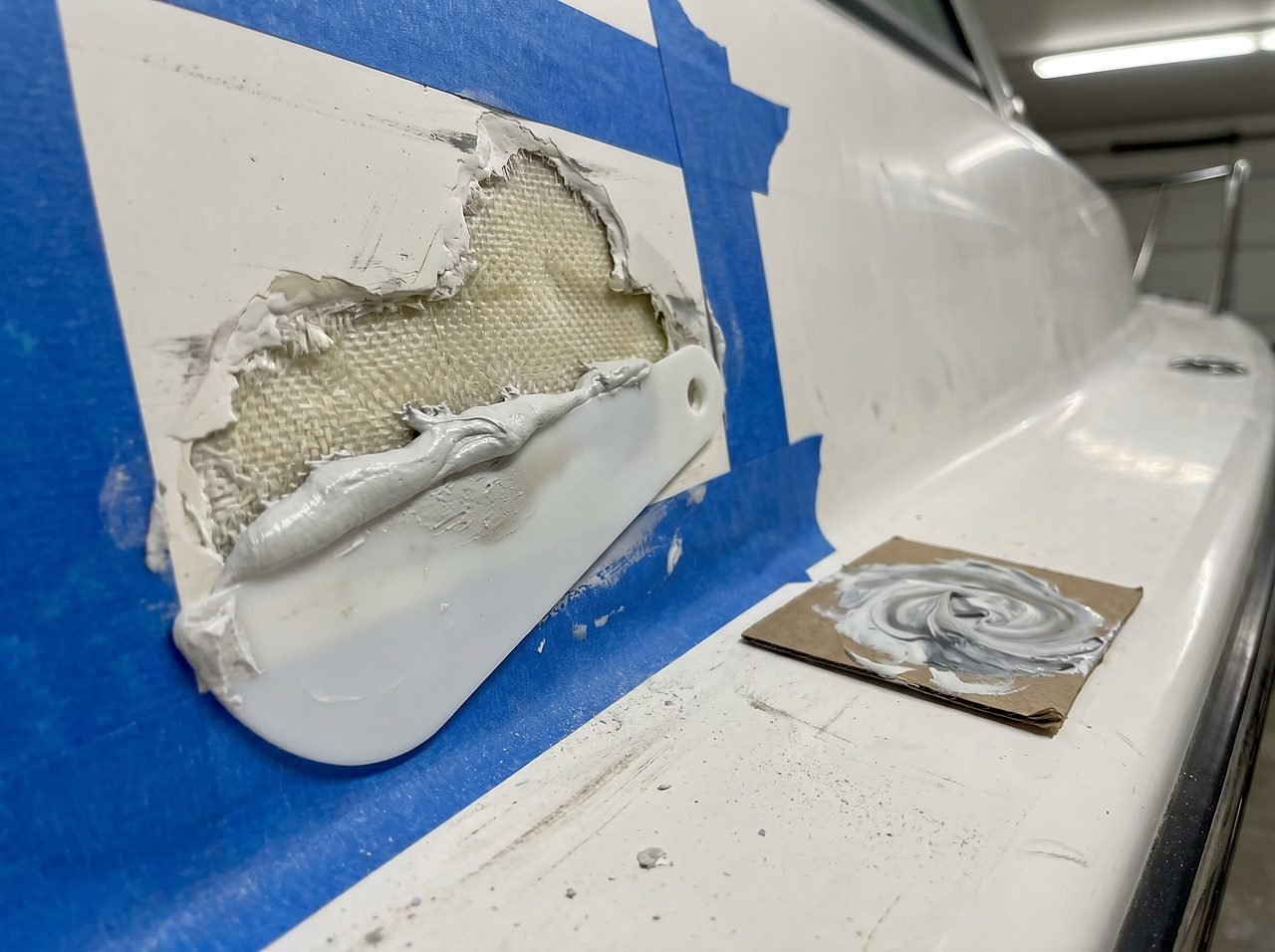

MarineTex and similar epoxy fills are primarily structural fillers. They bond well to fiberglass, wood, and metal, and they are genuinely waterproof below the waterline. They are the correct choice when you are rebuilding material - filling a deep gouge that reaches the laminate, repairing osmotic blister craters after grinding, or stabilizing a crack with some structural depth. For through-holes and bridging damage with fiberglass cloth, an epoxy putty like this is the right foundation.

The critical limit: polyester gelcoat does not form a chemical bond to cured epoxy. The incompatibility runs one direction - epoxy bonds readily to cured polyester, but polyester applied over cured epoxy cannot chemically cross-link. The reason is amine blush: as epoxy cures, it releases a waxy, water-soluble residue that migrates to the surface and prevents the polyester gelcoat from curing properly over it. The result is gelcoat that eventually cracks, blisters, or peels in sheets. Some repair guides report that properly prepared, fully cured, and thoroughly washed WEST SYSTEM epoxy - on above-waterline, dry-sailed or trailered hulls - can accept sprayed gelcoat with mechanical bonding adequate for topside use. That is a specific technique with specific conditions, not a general rule. For standard kit users: if you fill with epoxy, finish with paint or a compatible epoxy topcoat, not with a polyester gelcoat kit on top.

The decision table: kit type by damage type

The chemistry differences matter most at the moment you pick a kit off the shelf. Use this grid before opening anything:

Color match: the part every kit overpromises

Every kit claims color matching. None of them - at any price - can overcome the physics of UV-faded gelcoat on a boat that has spent years in the sun.

Sun exposure, oxidation, polishing history, and cleaning chemistry all shift a hull's apparent color over time. A fresh color from a factory code looks too bright against a hull that has faded. White is the worst case: bright white, off-white, cream, ivory, and gray-white look nearly identical on a chart and noticeably different on a hull in direct sunlight. Dark colors present a different problem - the cured color is darker than the wet color, so test batches cured on scrap plastic are essential before committing to the hull.

The best color-match protocol with a pigmented polyester kit: clean and compound a small area adjacent to the damage first, so you are matching to the unoxidized hull color rather than the weathered surface. Mix micro-batches with pigment, cure each sample fully, and compare to the cleaned area in natural daylight. That sequence still only gets you close on anything older than three to four seasons. For color matching gelcoat on older hulls where the repair must be invisible, the full matching process - with spectrophotometry or a professional color-match service - is covered in our dedicated guide.

A practical ceiling for kit color work: repairs smaller than roughly a credit card, in inconspicuous locations (hull undersides, below the waterline stripe, interior compartments), are forgiving because the eye does not scrutinize them closely. A repair the size of your palm on the topsides of a dark-colored hull is where DIY color match breaks down for most owners, regardless of kit quality.

Temperature and cure: where kits quietly fail

The most consistent source of failed kit repairs is temperature, not technique. Both kit families have temperature floors below which the chemistry stops working properly.

Pigmented polyester gelcoat kits need 50°F minimum (70-80°F for reliable results). Below 50°F, catalysis slows so severely that the gelcoat may stay wet for hours before eventually developing an incomplete cure that never fully hardens. Above 95°F, pot life collapses: the 10-15 minute working time at 77°F becomes a fraction of that in summer heat, and the gelcoat can gel in the mixing cup before it reaches the hull.

Epoxy fills like MarineTex have a harder floor: application below 55°F is not recommended. At 60°F, the cure time doubles from 24 hours to 48 hours. Higher temperatures accelerate the exotherm in both chemistries, though in different ways. With MarineTex epoxy, a concentrated mass in the mixing cup generates its own heat and can shorten the working window from 30 minutes to 15-20 minutes. With polyester gelcoat, a large pooled mass (well beyond kit-scale quantities) can generate enough heat to burn through a plastic cup and accelerate cure dramatically - which is why both product types call for working in small batches and spreading material thin rather than letting it pool.

Working in direct sun compounds every one of these problems. A hull surface in August sun can be 130°F even when the air temperature reads 85°F. Mix in the shade, apply to a surface you have cooled with a wet rag, and work early morning if the temperature is at the margin.

Structural damage: where all kits hit their wall

A gelcoat repair kit - any type - is a surface tool. When damage reaches the structural laminate, filling the cosmetic layer on top does not solve the structural problem. It hides it.

Spider cracks are direct water-intrusion pathways. Left untreated and merely filled at the surface, they allow water into the laminate, which leads to osmotic blistering, delamination, and structural softening over seasons. If a crack on the hull flexes slightly when you press it, if there is soft or hollow sound when you tap around it, or if you can see woven fabric at the bottom of the damage, the structural laminate is involved. That is not a kit repair - that is a repair that warrants a professional assessment before any material goes in.

The correct stop-line: once you examine the base of a deep gouge and find laminate, do not cosmetically fill and walk away. Assess the laminate extent first - probe the area around the damage for soft spots and tap for hollow sound. Proceeding with surface gelcoat on top of compromised laminate wastes the kit and gives you a repair that fails at the worst possible time.

Frequently asked questions

Can I apply a gelcoat kit over a previous epoxy repair?

Not safely as a general rule. Polyester gelcoat does not chemically bond to cured epoxy. The epoxy releases amine blush during cure - a waxy surface residue - that prevents proper gelcoat adhesion. The result is a surface that cracks or peels. If your substrate is epoxy, finish with a compatible epoxy topcoat or marine enamel rather than a polyester gelcoat kit. WEST SYSTEM's own testing found that properly prepared, dry-sailed above-waterline repairs can work with mechanical bonding, but that is a specific technique, not a general permission.

How long before a gelcoat kit repair is watertight?

Pigmented polyester gelcoat kits are tack-free (with correct PVA or wax) in a few hours at 70-80°F, but full cure for immersion is typically 24-48 hours at room temperature. MarineTex epoxy fill needs 24 hours at 72°F minimum before the repair can go in the water. Pre-mixed squeeze kits achieve maximum strength at 14 days - avoid heavy contact in the first 48 hours. Cooler temperatures extend all of these timelines.

Why is my kit repair still tacky after 24 hours?

Almost certainly an air-inhibition failure on a polyester gelcoat kit. The surface of catalyzed polyester gelcoat exposed to air will never fully cure - it stays permanently tacky. You needed PVA film, Duratec Hi-Gloss Additive, or styrene wax on the final coat. The fix is to sand the tacky surface down to solid material, re-apply with the correct air-inhibition step, and cure properly this time. Our tacky gelcoat fix guide covers the remediation steps.

Do gelcoat repair kits work below the waterline?

Pigmented polyester gelcoat for surface-level cosmetic repairs works below the waterline on a polyester hull. Epoxy fills like MarineTex are waterproof and rated for below-waterline structural repairs. Pre-mixed squeeze kits are surface products intended for above-waterline cosmetic repairs - use appropriate epoxy fill products for anything below the waterline where water pressure and marine growth are constant factors.
