How to repair gelcoat: the complete DIY guide from diagnosis to buff-out

Most gelcoat damage on a fiberglass boat is DIY-able if you can answer one question first: does the crack go all the way through the gelcoat into the laminate beneath, or does it stop at the surface? Damage that stays in the gelcoat layer - spider cracks, chips, shallow gouges - follows a straightforward fill-sand-buff sequence that any careful owner can complete with an afternoon and about $60-120 in materials. Damage that reaches the structural fiberglass is a different job, and the distinction matters enough that every repair should start with a 30-second test before you pick up a grinder.

One thing to settle up front, because it changes how you think about the small stuff: spider cracks are not just a looks problem. Each hairline crack is an open seam through the gelcoat, and water wicks down into it. Over seasons, that moisture works into the fiberglass laminate beneath, where it can seed osmotic blistering and, eventually, delamination - and a freeze-thaw cycle pries the crack wider every winter. That is the real reason you grind and seal a spider crack instead of waxing over it. The repair technique stays in the gelcoat layer, but the urgency is structural: you are closing a water path into the hull, not touching up paint.

This guide walks the full spectrum: how to read what you have, which material goes where, and the exact sequence from V-grind to final polish. For the five most common specific problems - spider cracks, color matching, tacky surfaces that won't cure, osmotic blisters, and deep structural gouges - we link out to the dedicated spoke guides that go deeper on each.

Diagnose before you repair: the tap test and the surface vs. structural split

Clean the damaged area with soap and water, then dry it completely. Good light matters here; direct sun at a low angle reveals crazing and hairline cracks that disappear under overhead fluorescents.

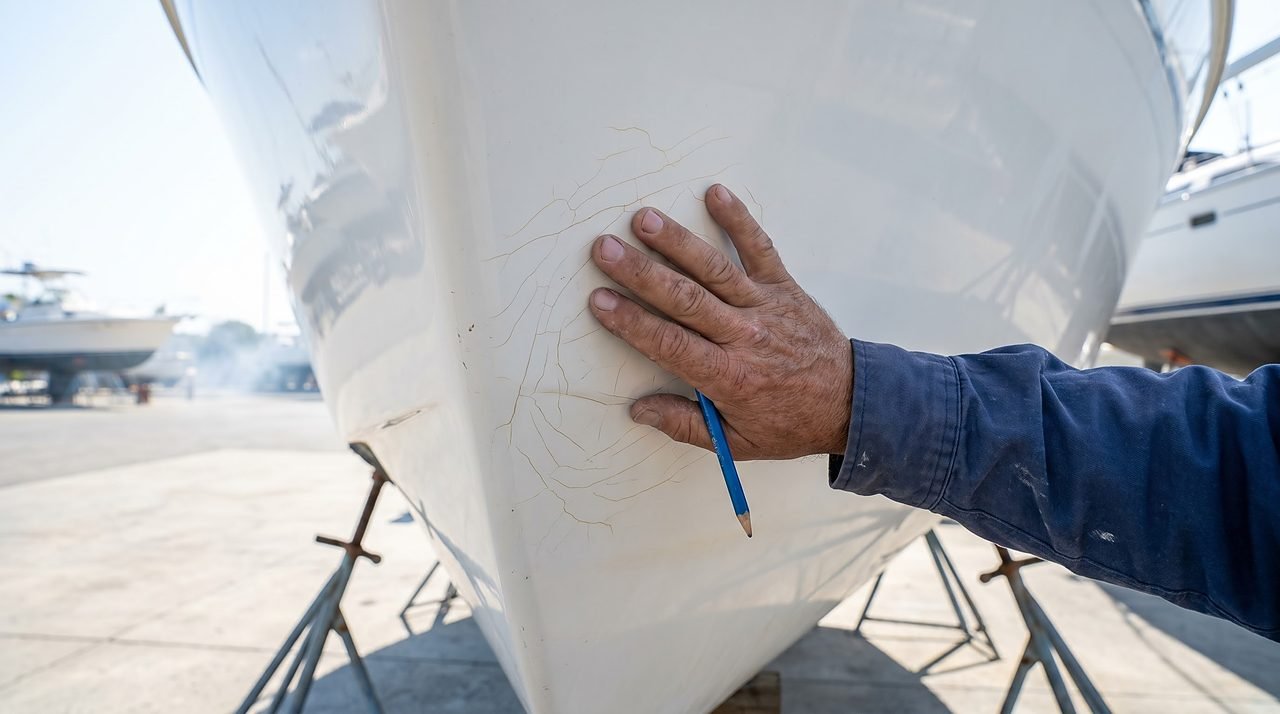

Once the surface is dry, rap the hull firmly with a coin or the butt of a screwdriver handle every two or three inches in a grid pattern around the damage. Solid, healthy laminate returns a sharp, almost ringing sound. A dull thud or a flat, papery tone means the fiberglass layers have separated - there is a void between them. Mark every hollow-sounding spot with a grease pencil. According to Fiberglass Warehouse's damage assessment guidance, delaminated area almost always extends beyond the visible crack boundary, so map the full hollow zone, not just the part you can see.

That tap test result sets your repair path. Read it carefully, because a sharp sound answers only one question - it rules out delamination - and a web of fine spider cracks over perfectly solid laminate will still tap sharp while quietly wicking water in. A sharp sound means you do not have a structural rebuild on your hands; it does not mean the cracks are harmless or that you can leave them. They still get opened and sealed.

• All sharp, solid sounds, crack stays within the gelcoat layer: a surface repair - fill, sand, buff. You own this job. Sharp does not equal "leave it": open and seal the cracks anyway, because that is what keeps water out of the laminate.
• Hollow spots anywhere near the damage, or the panel flexes when you press it: the laminate is compromised. Structural repair comes first - fiberglass cloth and epoxy to rebuild the layers - then a gelcoat finish coat on top. At this level, a marine fiberglass technician is worth the call unless you have laminating experience.
• Blisters below the waterline, especially clustered ones with a sour or acidic smell when punctured: osmotic damage. Our osmotic blister repair guide covers the full peeling, drying, and barrier-coat sequence that blistering requires.

One more distinction worth making: stress cracks run in a single straight or curved line and often follow a hard impact or flex point (a cleat base, a corner radius). They tend to go deeper than the shallow surface spider cracks above and can reach the laminate. If a crack is clearly directional and you can feel any panel flex near it, treat it as structural until the tap test proves otherwise.

Gelcoat or epoxy: which material does what

These two products are not interchangeable, and mixing them up is the single most expensive mistake in DIY gelcoat work.

Polyester gelcoat is the correct choice for any repair that stays within the gelcoat layer - spider cracks, chips, shallow gouges, surface crazing. It is UV-stable and pigmentable, which is why it forms the finish coat on fiberglass boats to begin with. It is also permeable to moisture, which is why it should not be used as a structural rebuild material below the waterline.

Epoxy resin is the correct choice for structural laminate repair: rebuilding missing fiberglass layers, filling deep gouges that reach the cloth, and applying an epoxy barrier coat below the waterline. Epoxy bonds better, resists moisture better, and is far stronger under stress than polyester. West System's adhesion testing found that polyester gelcoat bonds to a properly prepared cured epoxy surface as reliably as it does to a cured polyester laminate - so the correct sequence for a structural repair is: epoxy rebuild first, then polyester gelcoat finish coat over the top once the epoxy is fully cured and sanded.

The incompatibility runs one direction only. Polyester cannot achieve a chemical bond to cured epoxy - only a mechanical one - which is why surface prep before applying gelcoat over an epoxy repair is non-negotiable. Any amine blush (the waxy film left by some epoxy hardeners as they cure) must be washed off with water and a Scotch-Brite pad before you sand, or the gelcoat will not stick. For a side-by-side breakdown of these two materials across repair scenarios, the gelcoat vs. epoxy comparison covers the full decision tree.

Below the waterline: check the laminate is dry before you seal it

This is the step amateurs skip and pros never do. Any repair below the waterline - a blister, a gouge that reaches the cloth, or any spot you are about to cover with an epoxy barrier coat - has to be on dry laminate. Whatever moisture is still in the fiberglass when you coat over it gets trapped behind the new barrier with nowhere to go, and that is exactly how a small blister job comes back worse a season later. West System's blister-repair guidance frames the whole job around monitoring and reducing the laminate's moisture before it is sealed, and warns that coating a wet hull simply locks the water in.

How to check it in practice:

• Open it up and let it dry. Grinding out the blister or gouge exposes the wet laminate to air so it can dry. Drying is slow - often weeks of haul-out, not an afternoon - and warmth, airflow, and low humidity all speed it up. Do not rush it.
• Verify with a moisture meter, do not eyeball it. A laminate that feels dry on the surface can still be wet inside. A marine moisture meter reads the moisture in the laminate; you want a low, stable reading that has stopped dropping over several days before you coat. Industry barrier-coat practice targets a genuinely dry hull (commonly cited as roughly the low single-digit percent range on a meter) rather than a fixed number that fits every meter and boat.
• Watch for weeping. If a ground-out blister keeps weeping fluid, the laminate is still wet. Coat it now and you have sealed the problem in.

If the moisture will not come down, or the wet area is widespread, that is the signal to bring in a yard - this is the make-or-break step in osmotic repair, and our osmotic blister repair guide walks the full peel-dry-meter-coat sequence.

The repair sequence for surface gelcoat damage

This sequence applies to spider cracks, chips, and shallow gouges where the tap test is solid and no structural rebuild is needed. Worth repeating once: even though every step here stays in the gelcoat layer, you are sealing a water path into the laminate, not just smoothing a blemish - so do not skip the small ones.

Step 1: open the damage

A hairline crack that you fill flat will re-open. The crack needs to be widened into a V-shaped channel so the new gelcoat has enough volume and surface area to grip. Use a Dremel with a pointed carbide bit, or the tip of a utility knife for fine cracks. Work the groove through the full length of the crack, angling the tool at about 60 degrees on each side to form the V. Stop when you reach solid material - do not grind into the fiberglass weave unless the crack already went there.

For chips and gouges, sand the interior with 80-grit to roughen the surface, then give it a light solvent wipe to lift sanding dust. Use a clean, lint-free cloth and wipe in one direction only, folding to a fresh face on each pass - dragging a loaded cloth back and forth just smears dust and can leave a film. Let the solvent flash off completely (give it a few minutes; the surface should look and smell dry) before you mix anything, because trapped solvent under fresh gelcoat causes adhesion and cure problems. One caution so a quick read does not lead you astray: acetone is for clearing sanding dust, not for removing amine blush from an epoxy repair. Blush is water-soluble and comes off with plain water and a Scotch-Brite pad, as covered in the epoxy section below - wiping it with acetone just spreads it around.

Step 2: mix and apply gelcoat

Temperature matters here. TotalBoat's technical data specifies an ideal working range of 70-80 F (acceptable 50-95 F); below 60 F the catalyst slows significantly and the surface may stay tacky for hours. Above 90 F the pot life shrinks to minutes.

For small repairs, use a gelcoat paste (pre-thickened for vertical surfaces) rather than spraying. Mix only what you can apply in 10-15 minutes. The standard MEKP catalyst ratio across marine gelcoat brands falls in the 1.5-2% range - for example, Fibre Glast specifies 1.5% as their standard, while TotalBoat specifies 2% for their product. Always follow the technical data sheet (TDS) for the specific gelcoat you are using; do not treat 1.5-2% as a universal sliding scale. As a general direction within that brand-specific range: a slightly higher ratio speeds cure in cooler weather, and a lower ratio gives more working time in the heat.

Apply the gelcoat with a disposable brush or plastic spreader, slightly overfilling the repair so you have material to sand back level. Work it firmly into the V-groove to avoid air pockets at the base.

Step 3: block air inhibition (the step most owners skip)

Polyester gelcoat cures by a chemical reaction that oxygen disrupts. Leave the surface open to air and it will cure to a permanent tack - soft, sticky, and impossible to sand. Three options prevent this:

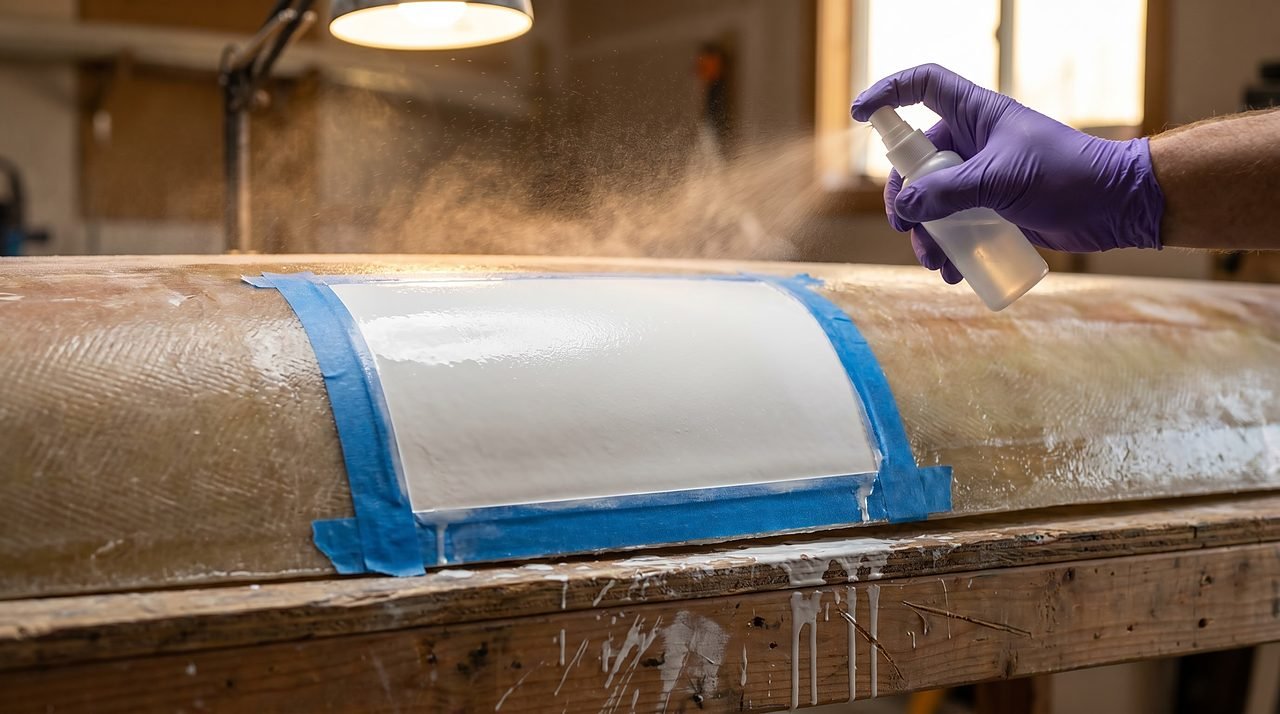

• PVA release film: spray a thin coat of polyvinyl alcohol over the wet gelcoat immediately after application. It forms a film that blocks air contact; once the gelcoat cures, the PVA washes off with soap and water. This is the most accessible option for spot repairs.
• Waxed gelcoat formulation: some gelcoat products come pre-formulated with paraffin wax, which rises to the surface during cure and seals the reaction from air on its own. Read the label before buying.
• Duratec Hi-Gloss additive: mixed into the gelcoat before catalyzing - the mixing ratio and MEKP adjustment (commonly cited as 1:1 and 1.75% MEKP respectively) are product-specific numbers; verify against the Duratec TDS for your batch before mixing. Preferred for boat repairs above the waterline; improves gloss retention and impact resistance alongside the air-inhibition function.

If your finished repair feels tacky and will not harden, that is almost always the cause. The gelcoat tacky surface fix guide covers recovery options when it happens.

Step 4: cure, then sand

Allow at least 24 hours before wet-sanding, regardless of how firm the surface feels. Gelcoat continues to harden internally well past surface cure, and sanding too early loads the sandpaper and risks pulling material out of the repair.

Before the first stroke, mask a border of blue tape a few millimeters out around the repair on all sides. This is the single most important habit for sanding a polished hull: the tape line catches your block before it rides out onto the surrounding factory gelcoat, and burning through that thin original layer at the edges is the most common DIY failure on a finished boat. Original gelcoat is often only 15-20 mils thick, and it does not grow back - once you cut through to the laminate at the perimeter, you have turned a small repair into a much larger one.

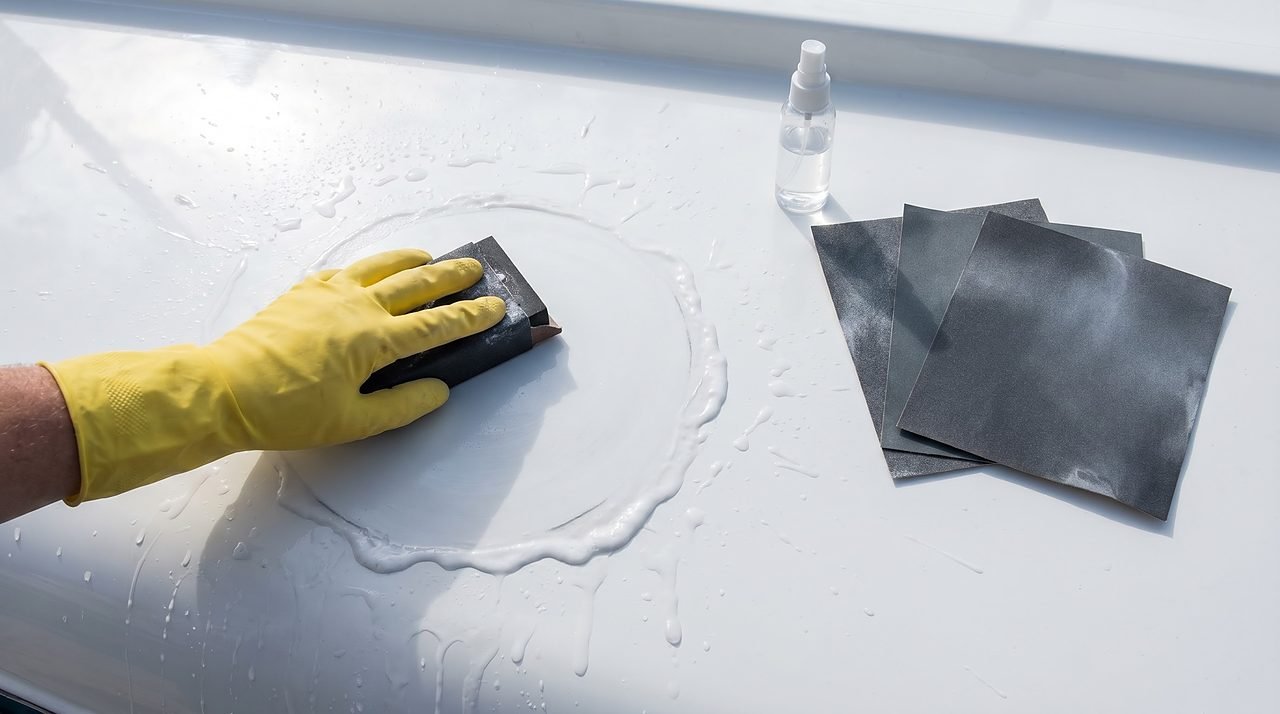

Wet-sand with progressively finer grits, keeping the paper wet throughout. Because you deliberately overfilled, you have a proud bump of cured gelcoat to knock down first - do that quickly and flat with a backing block, not by creeping up through fine grits:

• 220-grit (or 320 if the bump is small): knock the proud gelcoat down level with the surrounding surface, working only the repair, staying inside the tape
• 400-grit: remove the coarser scratches
• 600-grit: refine the surface
• 1000-grit: pre-polish smoothness

Use a soft rubber sanding block to keep the paper flat. Bare fingertips let the paper flex and leave low spots, and they also make it far easier to dig through an edge. Keep your strokes over the repair, not sweeping across the original gelcoat around it, and check the cut often - the moment you see the matte sanding scuff creeping past your tape onto glossy original gelcoat, stop and reset. Sand in a cross-hatch pattern, not circles. Rinse the surface frequently to clear swarf, which will load the paper and scratch instead of cut.

Step 5: compound and buff

After 1000-grit, apply a marine cutting compound with a foam pad by hand or orbital polisher at low speed. This removes the last of the sanding scratches. Follow with marine polish to restore depth, then a coat of wax for UV protection. For a full guide on pad selection, speed, and technique, the buffer guide covers the orbital and rotary approach in detail.

Repair decision table: which job is yours

The table below maps the five most common gelcoat problems to the right repair path and the honest DIY boundary. Use it before opening a repair kit.

Color matching on an aged hull

Owners often spend more time chasing color than doing the actual repair. The honest answer: a repair on a boat that has lived in the sun for several seasons will not disappear. Factory gelcoat fades and yellows under UV at a rate no catalog formula can reverse-engineer. New gelcoat, even a carefully custom-mixed batch, will be marginally brighter or whiter than the surrounding oxidized surface.

That does not mean color matching is pointless. A well-matched repair is far less visible than an unmatched one. To get as close as possible:

• Start with the hull manufacturer's original gel coat color code if you have it. Many builders include this in the owner's manual or on a sticker inside a hatch.
• If you are mixing custom, use a white base for off-whites and pastels (most production boats); use a neutral base for brighter or deeper colors.
• Mix pigment into the gelcoat before adding MEKP - once the catalyst is in, the pot life is ticking and you cannot adjust color.
• Judge color only off a fully cured, buffed test patch - never off the wet mix or a fresh, unbuffed surface. The shade shifts as it cures and as gloss comes up under the buffer, and a waxed gelcoat reads differently before and after you polish it, so the only honest reference is a patch taken all the way through cure (at least 24 hours, ideally 48) and buffed the way the repair will be finished.
• Wet-sanding and polishing the surrounding area before and after the repair brings the existing gelcoat closer to its original color and narrows the visual gap.

For the full pigment-mixing process, including the three-pigment approach for white hulls, see the gelcoat color matching guide.

When to stop and call a shop

These are hard stops, not suggestions:

• The tap test returns hollow sounds (the dull, flat tone that signals separated layers) over more than a small, isolated patch - and remember the hollow zone usually extends past the visible crack, so map it fully before you judge the size. Where exactly to draw that line is judgment, not a measured spec; our editorial rule of thumb is that once the dull-sounding area grows beyond a contained spot you can comfortably see the edges of, it has become a structural haul-out job rather than a weekend DIY. When in doubt, get it sounded by a yard.
• You puncture a blister and the liquid is dark brown, acidic-smelling, or thick. That means the osmotic reaction has reached into the laminate, not just the gelcoat. Do not re-float the boat without professional assessment.
• The hull flexes visibly underfoot or under hand pressure near the damage. A panel that moves is a panel that has lost structural integrity.
• The damaged area is on a structural member - a stringer, a bulkhead joint, the transom. These carry load, and an amateur gelcoat fill over a compromised structural element can mask deterioration that continues unseen.

Professional gelcoat repairs for surface damage (spray-matched, feathered into the surrounding surface) run $150-500 for small areas. Structural laminate repair from a fiberglass technician runs $1,000-5,000 and up depending on the extent of the delamination and whether haul-out is required. The math for a well-executed DIY surface repair - $60-120 in materials for a result that holds - is genuinely favorable when the damage is surface-only and the tap test is clean.

For the spider crack version of this repair in detail, the spider crack repair guide walks through the Dremel grind and fill sequence step by step, including the scoring pattern for a web of fine cracks versus a single radiating line.
