Gelcoat color matching: the honest guide for DIY repairs

Matching gelcoat on a 10-year-old hull is one of the genuinely difficult jobs in DIY boat repair. The industry's own materials scientists say a 1.5 Delta E color tolerance is the best most professionals can reliably achieve across multiple batches - and that is for fresh, unmixed factory gelcoat, not for a surface that has been weathering in the sun for a decade. Set that expectation before you open a container of pigment, because the number-one reason owners are disappointed is that they expected an invisible repair and got a visible one.

This guide covers why aged gelcoat fights you so hard, how to use the pigment workflow correctly, where to find original color codes, and how the feather-and-blend technique hides a match that is close but not perfect. If your repair is still tacky after curing, that is a separate problem covered in our guide to fixing sticky gelcoat, not a color issue.

Why color matching on an aged hull is so hard

Three separate forces shift the hull color away from whatever the factory originally sprayed.

UV radiation attacks the polyester resin at 325 nanometers, according to research published in PCI Magazine. Titanium dioxide - the pigment that makes white hulls white - acts as a photocatalyst. It breaks down the organic binder around it, which causes the surface to first yellow, then chalk. The yellowing phase dominates until the gelcoat loses about 30 gloss units; after that, chalking takes over and the visible yellowing actually backs off. The net effect is a hue that is measurably different from what left the factory, shifting in a direction that depends on which pigments were used originally and how much UV the hull has absorbed.

The second force is oxidation layering. Even if you strip the chalked surface back with 1500-grit paper and a polishing compound, the color underneath is not the same as a new gelcoat sample mixed to the original code. The resin matrix itself has changed at a molecular level. A fresh factory sample held against a polished 10-year-old hull in daylight will almost always look slightly different.

The third force is the curing color shift. Gelcoat changes color as it catalyzes. Research published by the American Composites Manufacturers Association describes this specifically: once pigment paste is incorporated into a gelcoat base, the color becomes warmer and slightly duller during the cure cycle. What you see in the wet mix is not what you will get. Owners who match to the wet color and then apply the catalyzed gelcoat are always chasing a moving target.

Finding the original color code

Start with the manufacturer, not with a color wheel. The first three characters of your boat's Hull Identification Number (HIN) are the Manufacturer Identification Code (MIC). The USCG Boating Safety website maintains a searchable database of over 16,000 MIC entries, including the manufacturer name, address, and contact information. Look yours up, then call the builder's service department and ask for the original gelcoat color code for your model year.

What you will receive is the code for the factory-fresh color. That code can be ordered from a marine gelcoat supplier as a pre-mixed batch or used as a starting reference for a custom mix. Either way, understand that the code gets you to the 1972 or 1985 or 2010 version of that color - not to the current surface on your hull. The older the boat, the wider that gap.

For boats where the builder no longer exists or where records are lost, a spectrophotometer match from a physical sample (typically a piece at least the size of a half-dollar, cut from a low-visibility area) is the most reliable starting point. Several marine gelcoat suppliers offer this as a paid service with 48-72 hour turnaround.

The pigment mixing workflow

Most hull colors - even the ones that look complicated - are built from three base pigments: brown, yellow, and black for off-whites and beiges; different combinations for blues and greens. The pigment comes in a concentrated paste that is added to a base gelcoat before any catalyst touches the mix.

The base matters. A white gelcoat base accepts a maximum of 1% pigment colorant by weight before the cure is compromised - TotalBoat's application documentation is specific on this. For pastel colors that is usually enough to shift the shade. A neutral (unpigmented) base accepts up to 10% by weight, or up to 12% for high-intensity colors like red, yellow, or orange. Keep a kitchen scale handy; estimating by eye consistently produces batches that do not match each other.

Work in small increments and always add pigment to the base, not the other way around. Over-adding a dark pigment is a dead end - you would need so much white to recover the lightness that you would be starting over. Once you think the uncatalyzed color looks right under natural daylight (fluorescent shop lighting introduces metamerism, where colors that look identical under one source look different under another), run the test that actually matters.

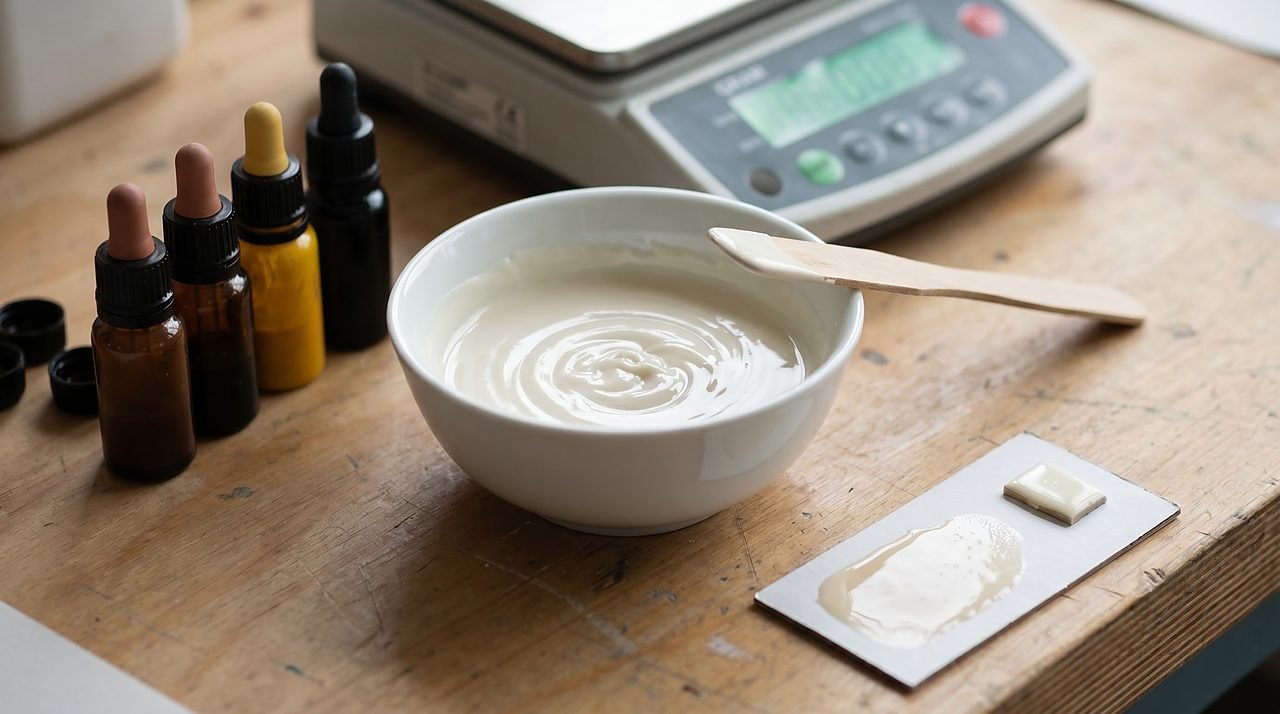

Mix a small catalyzed test batch at your working ratio - typically 1.5 to 2% MEKP by weight, adjusted for temperature - and apply it to the edge of a piece of white cardboard. Let it cure fully, which usually means at least 4 hours at 70 F (21 C) before you peel it and look at the color. Place that cured chip against the hull surface in outdoor daylight. That comparison is the real color check. The wet uncatalyzed mix is irrelevant.

Keep a log of the pigment additions in grams. When the cured chip matches as closely as you can get it, scale the pigment ratios up to the volume you need for the repair - and mix every batch to the same ratio, because batch-to-batch color drift is the reason professional fabricators target a 0.5 Delta E tolerance per the ACMA's guidance on manufacturing color control.

The repair process and PVA film

With color confirmed on the test chip, the repair itself follows a specific sequence that our main gelcoat repair guide covers in full. Two steps matter most for color outcome.

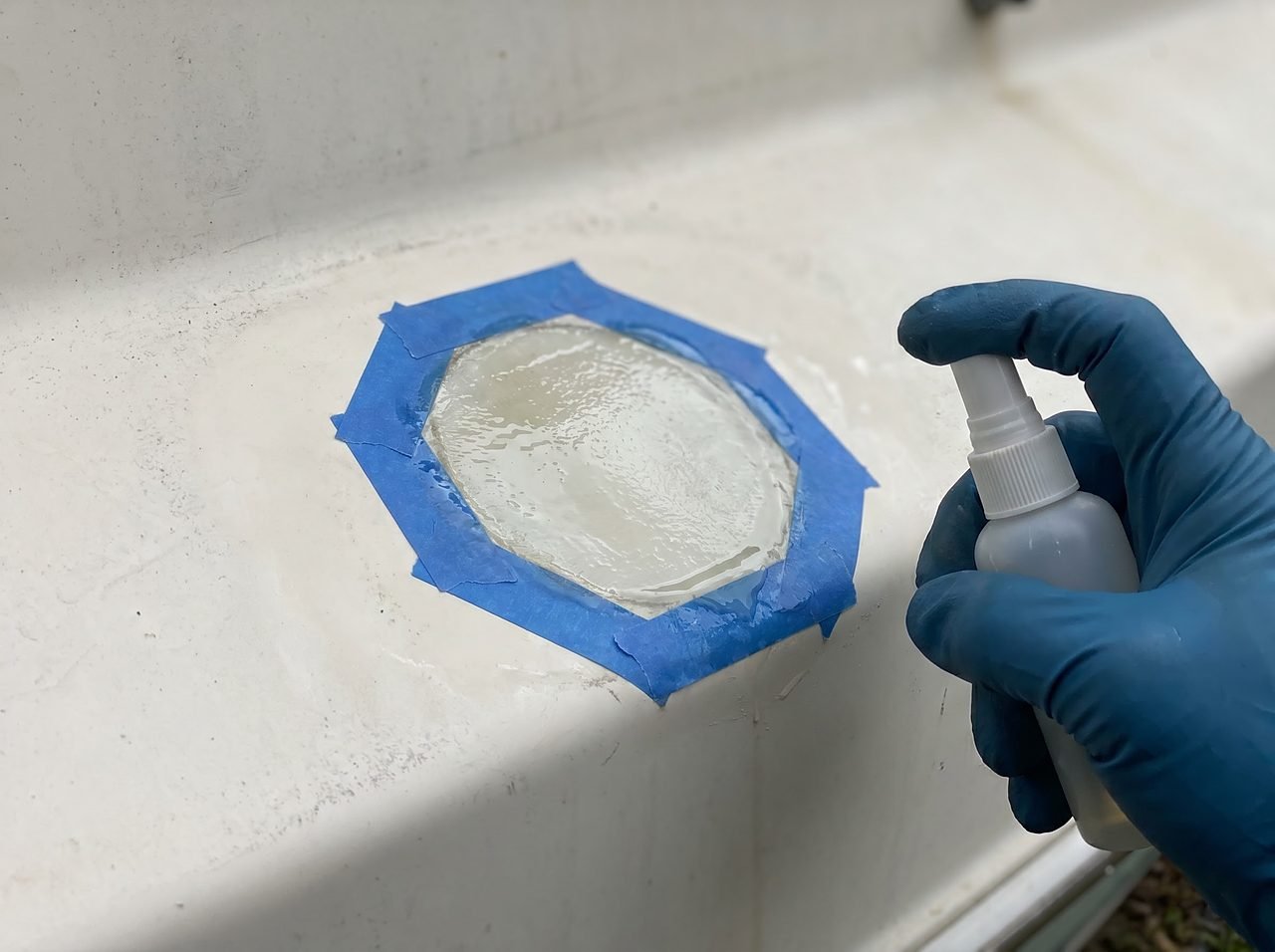

First: surface the repair with PVA (polyvinyl alcohol) release film immediately after application. Gelcoat is air-inhibited - oxygen exposure prevents the surface layer from fully crosslinking, leaving a permanently tacky top skin. Spraying or brushing a thin coat of PVA over the wet gelcoat seals it from air and allows full surface cure. Without PVA, you will sand through a tacky layer into uncured resin underneath, which ruins both the surface and the color.

Second: do not sand the repair flat and stop there. Flat gelcoat has a matte appearance from the sanding scratches. Bring the surface through the full wet sand progression - 400, 600, 800, 1200, then 1500 - wipe between each grit to confirm scratches are uniform before moving up. Follow with rubbing compound on a foam pad, then finishing polish. The color only reaches full chroma at the final polished state. Owners who assess color after 400-grit sanding think the match is off when the polish step would have closed most of the visible gap.

The feather-and-blend technique

Even a well-executed color match rarely disappears completely on an aged hull. The feather-and-blend technique accepts that premise and works with it rather than against it.

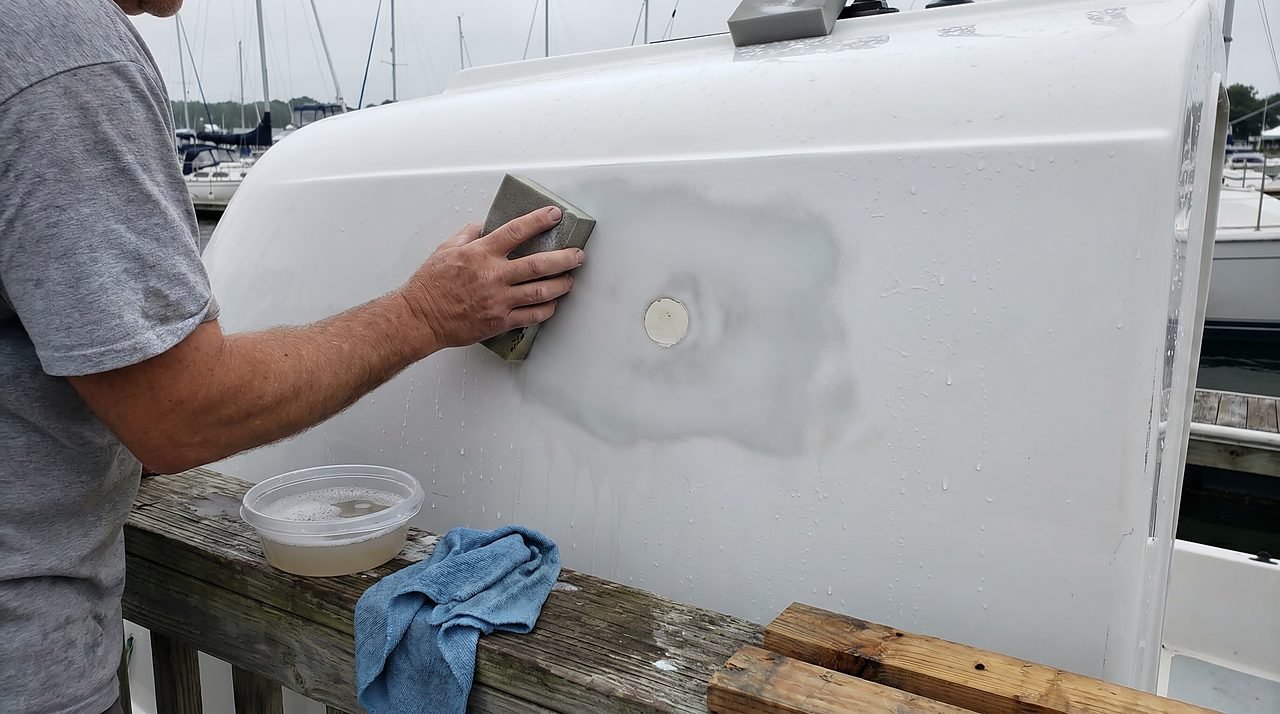

The idea is to extend the sanding and polishing zone well beyond the actual repair edge - 6 to 12 inches in all directions. You are not sanding the repair; you are sanding the surrounding original gelcoat to remove the oxidized surface layer and bring both surfaces to the same gloss level and similar depth of color. A fresh repair patch sitting inside a ring of dull, chalked original gelcoat looks like a target. The same patch surrounded by freshly polished original gelcoat is much harder to spot.

Mask the hull surface at least 18 inches from the repair before you apply gelcoat, leaving a generous overlap zone. After curing, remove the tape and wet sand from the repair center outward in diminishing pressure passes so the repair thickness tapers to nothing at the edges rather than ending in a hard line. Finish the full zone with compound and polish, then wax the whole panel. Spider crack repairs and color matching on larger areas follow the same principle - our spider crack repair guide walks through the prep and fill sequence before you reach the color step.

When to use a professional custom match

For visible topsides on a boat where appearance matters, the honest DIY-vs-pro calculation often favors sending a physical sample to a spectrophotometer matching service. The cost is typically in the $30 to $80 range (as of mid-2026; prices vary by supplier) for the match plus the gelcoat, and you receive a pre-mixed batch calibrated to your actual hull surface rather than to the original factory code. The pigment math is done for you, the test chips are included, and the batch consistency is held by the supplier's equipment rather than your kitchen scale.

DIY pigment mixing makes sense for small repairs in low-visibility areas - under-deck scuffs, interior hull damage, transom touchups that will live under a swim platform. It also makes sense if you have time to iterate through several test chips. For cockpit coamings, hull sides at the waterline, or any surface that is constantly in view, the custom-mix route spares you several frustrated afternoons.

One note that catches owners off guard: even a custom-matched batch will show if the surrounding gelcoat is oxidized. The match is calibrated to the polished sample you sent, so the repaired area will look correct only if the surrounding surface is polished to the same condition. Feather-blending is always part of the job.
