Boat trailer lights and wiring: diagnose and fix problems yourself
Trailer lights fail from corrosion, not dead bulbs. Test the truck connector first, then trace the fault. Covers 4-pin and 5-pin diagrams, diode isolators, and the LED upgrade.
Check the ground wire before you buy anything. That single step resolves more trailer light failures than all other fixes combined. When trailer lights go dark after a season at the ramp, the culprit is almost never a burned-out bulb. It is a corroded or broken ground connection somewhere in the three-connector chain between your truck and the light fixture. Starting at the wrong end wastes money on parts that were working fine.
This guide walks the full diagnostic sequence - truck connector to junction box to fixture - covers both 4-pin and 5-pin wiring diagrams, explains when you need a diode isolator, and lays out an honest comparison between keeping your incandescent setup and upgrading to sealed submersible LEDs.
Why trailer lights keep failing (the ramp is the reason)
Every time you back the trailer into the water to float the boat off the bunks, the light fixtures go under. Standard incandescent trailer lamps are not designed for full submersion. Hot glass hitting cold water at the ramp creates micro-cracks in the lens and socket. Water gets in, and once salt, road grime, and trailer-frame grit follow, the contacts oxidize fast. The 4-pin flat connector at the truck hitch suffers the same way: it drags in gravel, gets submerged accidentally on steep ramps, and collects moisture every time you wash the truck.
Three points concentrate most of the corrosion:
- The 4-pin or 5-pin connector at the hitch. This is the first test point. It takes mechanical abuse and water exposure from every trip.
- The junction box on the trailer frame. Usually a plastic box mid-frame or near the tongue where the main harness branches to each fixture. Seams crack, water pools inside, and the splice terminals corrode at the core.
- The individual fixture sockets. The final leg, where the bulb or LED board contacts the socket. Heat cycling and water together turn these terminals white and brittle within a few seasons.
Ground path is the tie that connects all three. A trailer's lighting ground must return to the truck chassis through clean, dedicated wiring: a separate white wire back to the frame, bolted to bare metal. Relying on continuity through the hitch ball and coupler is a mistake. The ball-to-coupler contact point corrodes, and an intermittent ground is indistinguishable from a bad bulb until you trace it.

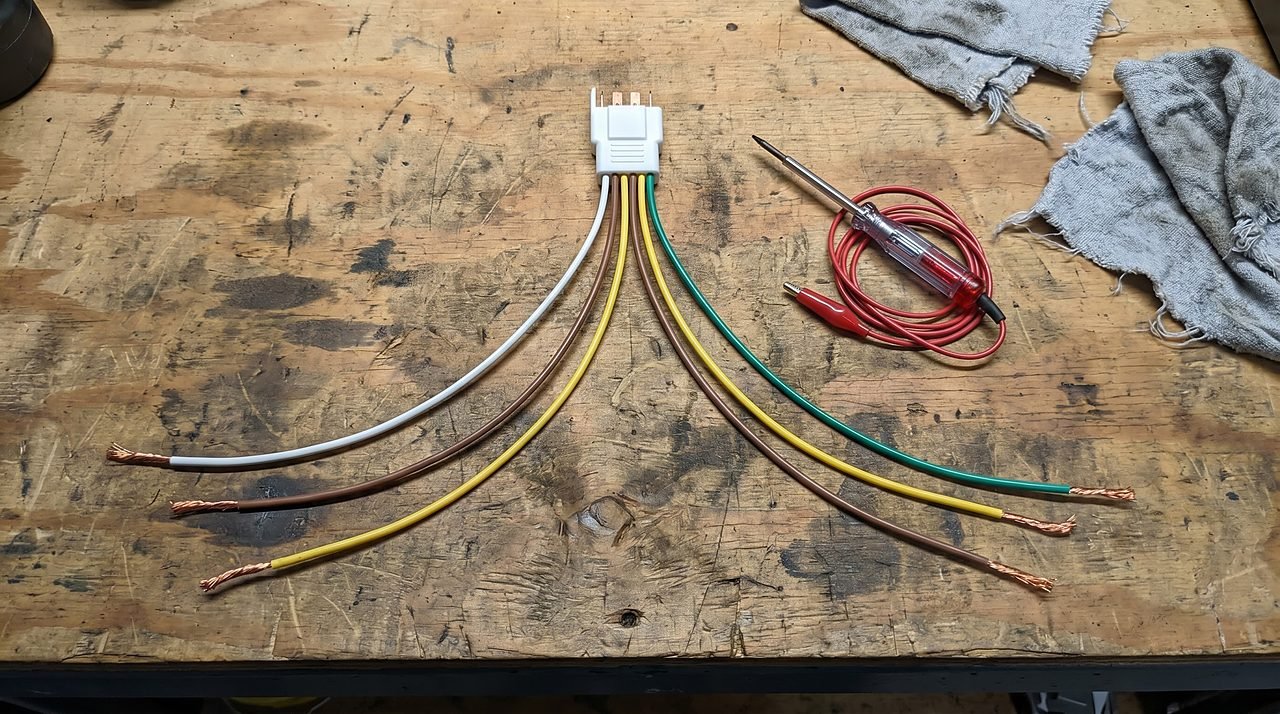

4-pin and 5-pin wiring diagrams
Most boat trailers use one of two connectors. The 4-pin flat is by far the most common on single-axle trailers without electric brakes. Per CURT Manufacturing's wiring standard (which follows SAE J1239):
| Pin | Wire color | Function |
|---|---|---|
| 1 | White | Ground (common return) |
| 2 | Brown | Tail / running / marker lights |
| 3 | Yellow | Left turn and brake |
| 4 | Green | Right turn and brake |
The 5-pin flat connector is identical in layout, with a fifth position (blue wire) added for electric trailer brakes or an auxiliary circuit. If your boat trailer has surge brakes or no brakes at all, you will likely never use the blue pin, but the trailer-side socket may still be 5-pin if the trailer was built on a universal harness. That is fine; the truck-side plug determines what functions are active.
One important note on brake wiring: trucks with separate brake and turn circuits (most newer pickups) wire cleanly to a standard 4-pin. Trucks with combined stop-and-turn signals (many older domestic trucks and some imports) require a converter or a diode kit in the chain. Without one, the trailer wiring feeds back voltage from one circuit to the other and can blow the truck's turn-signal fuse.
The diode isolator: what it does and when you need one
A diode isolator sits between the tow vehicle's taillight harness and the trailer connector. It contains two one-way diodes that let current flow out to the trailer but block any return path. The practical effect: the trailer circuit cannot feed voltage back into the truck's stop lamp, turn signal, or ABS wiring.
You need one when your truck has a combined stop-and-turn system (a single bulb that handles both functions) and your trailer has separate stop and turn circuits (common on trailers built after the late 1990s). Without isolation, the two sides of the trailer's turn circuit see each other through the common stop lamp circuit in the truck. The result is dim or flickering signals on one side, or a blown 7.5-amp fuse in the truck. CURT's technical documentation is clear that diode kits protect both tow vehicle and trailer from voltage feedback causing blown fuses or false fault codes.
If your truck is a late-model pickup with a 7-pin flat blade connector and factory trailer prep, check the truck's owner manual first. Many factory trailer packages already include the isolation circuitry in the truck-side harness. Adding a second diode kit downstream can produce erratic behavior: the isolation is already handled, and a second stage introduces extra resistance.
Diode kits cost $15-$35 at any trailering-supply counter and take 20 minutes to splice in. If you are unsure whether your setup needs one, a circuit tester at the 4-pin connector will tell you: connect the trailer, turn on the left signal, and probe each pin at the connector with the tester. If the right-turn pin lights up when the left signal is active, you have backfeed, and a diode kit is the fix.
Diagnostic sequence: start at the truck, work toward the fixture
Running this sequence in order means you stop the moment you find the fault zone. You test only what you need to test, and you replace only what is actually broken.
What you need: a 12-volt circuit tester (or a test light), a multimeter, dielectric grease, emery cloth or a wire brush, and a small bag of weatherproof butt connectors.

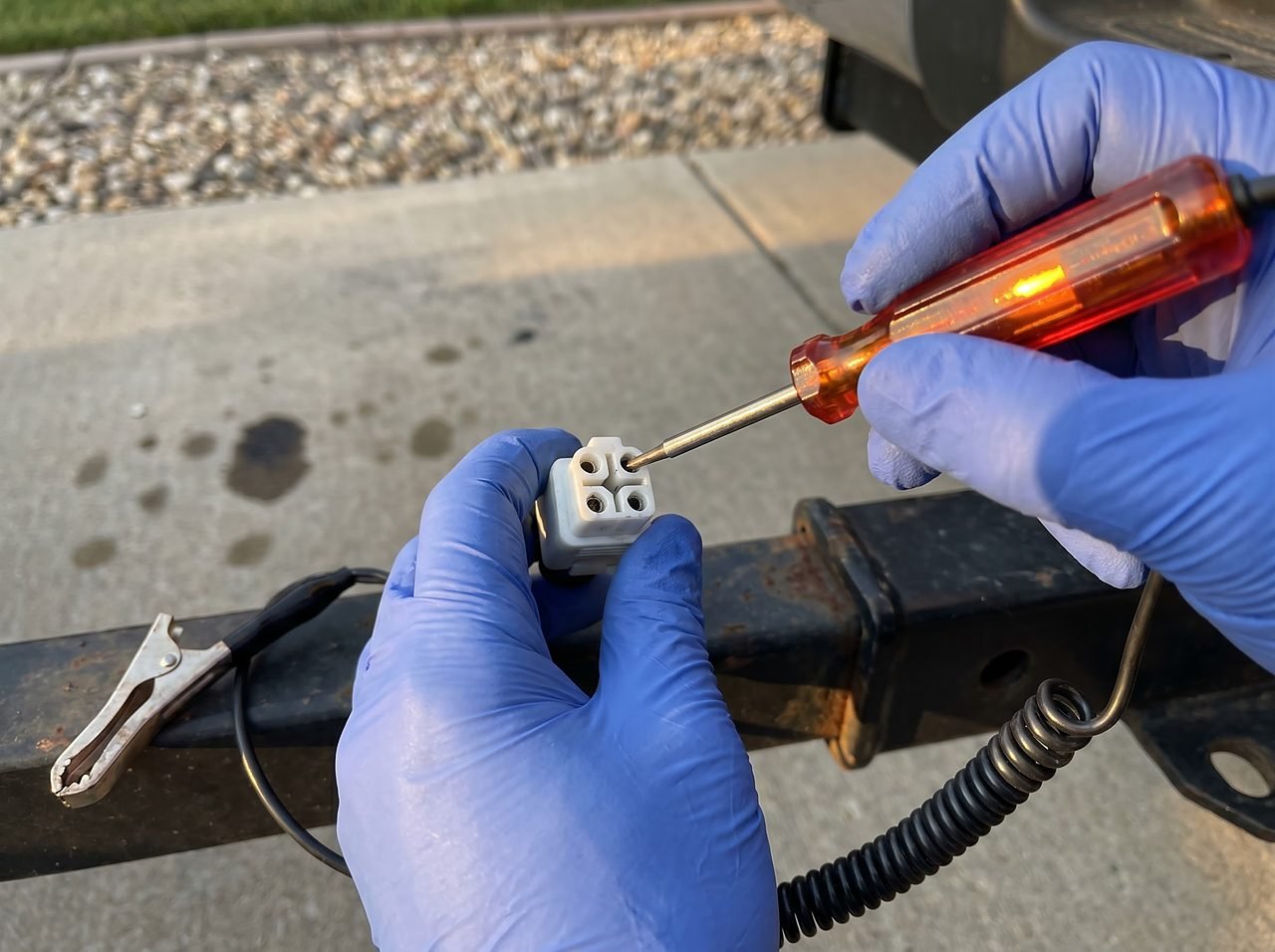

Step 1: Test at the truck connector first. With the trailer unplugged, turn on the truck's running lights and probe each pin at the truck-side connector: brown should show power. Turn on the left signal and probe yellow: it should pulse. Right signal, probe green. If a pin is dead at the truck connector, the fault is in the truck's harness or fuse box, not the trailer at all. Check the towing fuse in the truck's fuse panel before doing anything else. Fix the truck side before connecting a trailer to it.
Step 2: Test at the trailer connector. Plug the trailer in. Probe the same pins at the trailer-side connector (back-probe through the connector body). Power present here confirms the truck connector and plug are working. No power here despite clean readings in Step 1 means the connector itself is the problem: a corroded socket or a bent pin. Clean or replace the connector; they run $8-$14.
Step 3: Test the junction box. Trace the main harness from the connector to where it branches at the junction box. Open the box. Look for corroded splice terminals, cracked wire insulation, or standing water. Probe the output wires: you should see the same voltages you saw at the connector. If you lose continuity here, the harness between the connector and the box is chafed, cut, or internally corroded. Run a new length of trailer wire along the frame. Do not try to splice inside a corroded harness run.
Step 4: Test the ground at each fixture. Ground failures often show up as one light that works and one that does not. Touch one probe of the circuit tester to the negative terminal at the fixture and the other to the truck chassis, not the trailer frame. If the tester lights, you have a broken ground on that fixture run. The fix is a new ground wire from the fixture mounting point to a clean bare-metal bolt on the trailer frame, then through the white wire all the way back to the truck.
Step 5: Test the fixture itself last. Only at this point, after confirming power arrives at the fixture socket and the ground is solid, should you suspect the lamp or LED board. Power and ground both present, light still dead: replace the fixture. Incandescent replacements run $6-$15 per lamp. Sealed submersible LED assemblies run $20-$65 per lamp, but they eliminate the ramp-submersion cracking failure mode entirely.

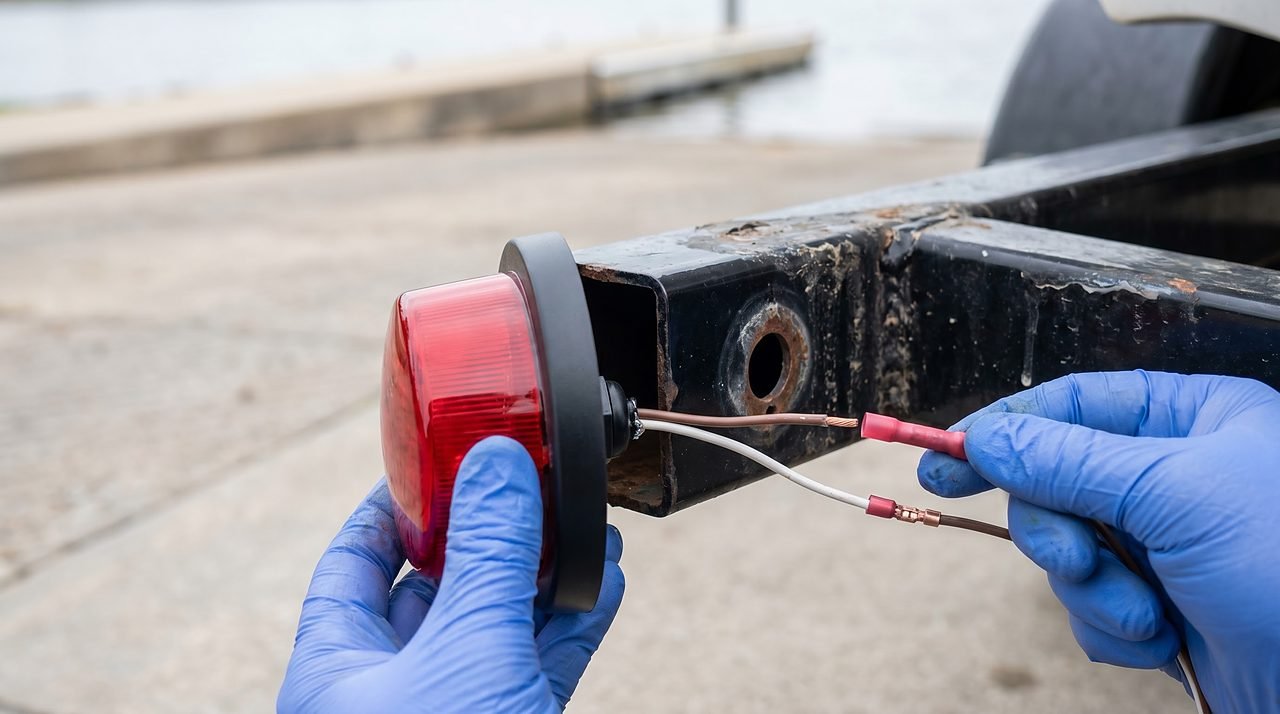

Submersible LED vs. incandescent: the honest comparison
The upgrade decision comes down to how many trips you make and how deep the trailer goes at the ramp. Below is a comparison based on manufacturer specifications and documented owner reports across trailer types.
| Factor | Incandescent sealed-beam | Submersible LED |
|---|---|---|
| Submersion rating | Waterproof only; lens cracks from thermal shock at ramp | Fully submersible; sealed epoxy fill survives repeated immersion |
| Current draw per lamp | 0.8-2 A typical | 0.1-0.2 A typical |
| Replacement cost per lamp | $6-$15 | $20-$65 |
| Service life | 1-3 seasons in ramp use | 5-10+ seasons (no filament to vibrate out) |
| Failure mode | Bulb filament, lens crack, corroded socket | Connector corrosion (the same root cause; the LED board itself rarely fails) |
| DIY swap difficulty | Simple; standard socket | Simple; wire-splice to harness, no socket needed |
| Voltage sensitivity | Tolerant of minor voltage drop | May flicker on weak grounds (lower draw amplifies bad-ground symptoms) |
The LED's lower current draw has a side effect worth knowing: a marginal ground that let an incandescent run at partial brightness will often cause an LED to flicker noticeably instead. That is not a defect in the LED. It is the same bad ground showing itself more clearly. Fix the ground, and the LED will work correctly. LED lamps also require some trucks to use a load equalizer or smart relay if the truck's turn-signal flasher needs a minimum current to pace correctly. Most late-model trucks handle LEDs natively; older vehicles with bimetallic flashers may flash faster or erratically without the equalizer ($10-$20 to add).
For an active trailer that launches every weekend from May through September, the LED upgrade typically pays back within two seasons on avoided lamp replacements and the time not spent at the ramp with a circuit tester. For a trailer that goes in the water twice a year, the incandescent setup is perfectly adequate if you maintain the connectors.
Connector maintenance: five minutes that prevent most failures
After every boat launch, before the connector dries, rinse it with fresh water. When the trailer is stored, keep the plug end of the 4-pin connector in a small zip-lock bag with a pinch of dielectric grease inside. At the start of each season, pull the connector apart, clean both halves with a wire brush or fine emery cloth, and re-coat with fresh dielectric grease before reconnecting. Dielectric grease does not conduct electricity. It seals the contact surface against moisture after connection and prevents the oxidation layer from forming.
The trailer-side junction box deserves a seasonal look too. Open it, dry it out if there is any standing water, and hit the terminals with contact cleaner spray before closing it back up. If the splice terminals inside show heavy white or green corrosion, cut them out and re-splice with heat-shrink butt connectors rated for marine use. Regular automotive butt connectors wick water up the wire by capillary action and accelerate corrosion from the inside.
For more on keeping the full trailer system in shape, the trailer maintenance guide covers bearing repack intervals, tire age limits, and the seasonal inspection checklist. The boat electrical basics guide goes deeper on circuit testing, fuse sizing, and how to read a wiring diagram. If you are working through the full pre-season prep, the annual maintenance schedule has the task list organized by system.
Common questions
Can I test trailer lights without a circuit tester?
In a pinch, you can bridge each pin to the white (ground) pin and see if the lamp lights, but this only checks the connector, not the harness run. A basic circuit tester costs $6-$8 and gives you the full picture in minutes. A multimeter is better still, since it shows you actual voltage (you want 12-12.5 V at rest with the engine off, or 13.5-14.5 V with the engine running) rather than just presence-or-absence.
Why do my trailer lights work at home but fail at the ramp?
Thermal shock. The hot lenses from the drive cool rapidly in the water, pulling a small vacuum that draws water in through any micro-crack. You may also see corrosion that makes intermittent contact at the connector. Heat from the drive keeps it just good enough to work, then the cold ramp snap breaks it. Clean and re-grease the connector; if that does not hold, replace the fixtures with sealed submersible units.
My right turn works but the left does not - is it the bulb?
Start at the yellow pin (left turn) at the truck connector before touching the bulb. If the pin is dead, trace back to the truck fuse. If it has power at the connector but not at the fixture, the harness run on the driver side is broken or the junction box terminal for that circuit has corroded. The bulb is the last suspect, not the first.
Do submersible LEDs need a special connector?
No. They plug into the same 4-pin or 5-pin harness. The difference is in the fixture body, which is epoxy-filled and sealed rather than gasket-sealed. The wiring connection is a standard butt-splice or a push-in Wago connector; use heat-shrink butt connectors rated for direct burial, not open-barrel crimps, to keep water out of the wire ends.
My truck already has factory trailer prep - do I still need a diode isolator?
Probably not, but verify before adding one. Most factory trailer-prep packages (common on late-model pickups and SUVs) include the isolation circuitry built into the truck-side harness or the body control module. Check the truck owner's manual under "trailer wiring" or "trailer tow package." If the manual confirms an integrated converter is present, skip the add-on diode kit: stacking a second isolation stage introduces extra resistance and can cause erratic flasher timing. If the manual is silent on the topic, or if you are towing with an aftermarket hitch on a truck that never had factory tow prep, install the diode kit - it costs under $35 and removes the backfeed risk entirely.
