Bearing Buddy and bearing protector guide: what they do and what they don't

A Bearing Buddy does one thing well: it keeps water from being sucked into a hot hub when you back the trailer into cold water at the ramp. It does not eliminate annual bearing maintenance, and it does not lubricate the inner bearing the way a full repack does. Plenty of hubs have failed specifically because owners believed the cap on the dust cover meant they were done with bearings forever. Understanding what the spring piston actually does - and the one fill error that blows the rear seal - keeps you from becoming one of those stories.

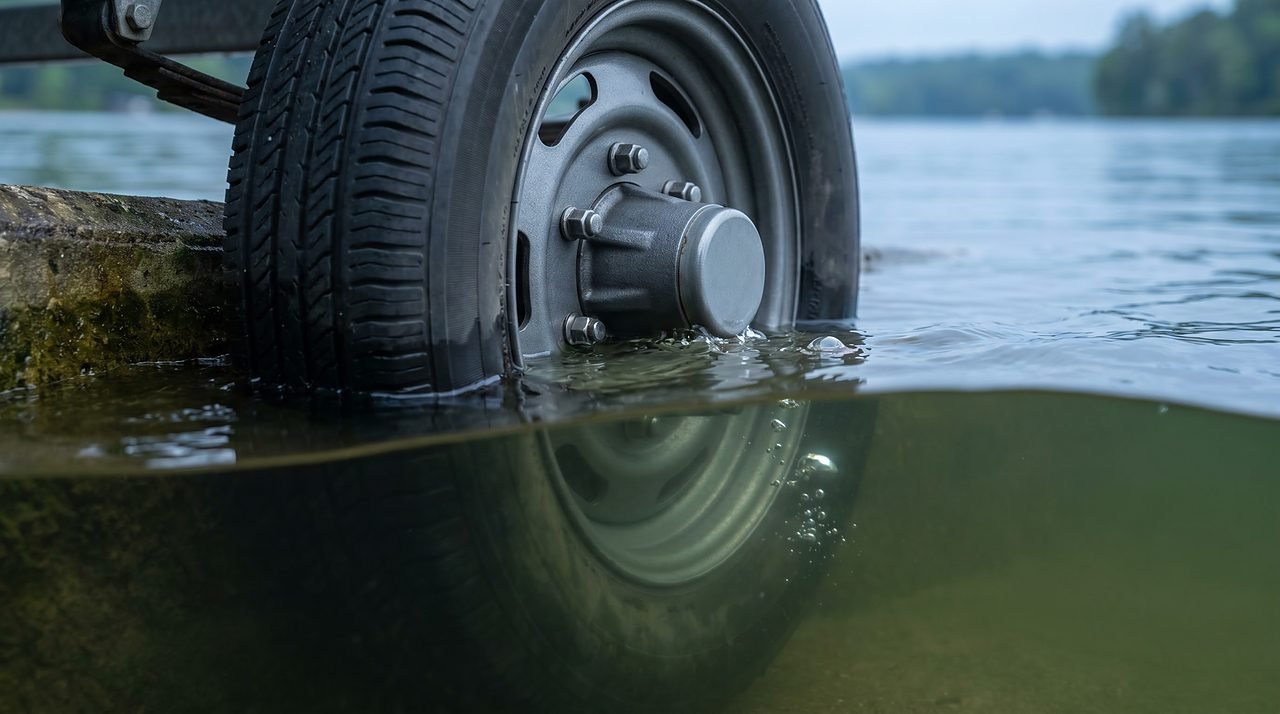

Why unprotected hubs fill with water at the launch ramp

Trailer hubs run hot. A long highway drive before a morning launch can push hubs well into uncomfortable operating temperatures, and when those warm hubs drop into 60 F lake water the air and grease inside contract sharply. Bearing Buddy's own technical literature puts it directly: "The hubs suddenly cool and the air inside the unprotected hubs contracts, forming a vacuum which draws in water through the rear seals." That vacuum is not theoretical - it is the reason a standard dust cap offers no real protection against immersion. Water and grit pulled into the hub through this thermal-contraction event attack the bearing races and rollers immediately.

Freshwater is bad enough. Saltwater accelerates the damage because dissolved chlorides corrode bearing steel within weeks of a single contamination event. Owners who trailer in salt and skip annual service are compressing what would otherwise be a multi-year failure timeline into a single season.

The spring-loaded piston inside a Bearing Buddy addresses the thermal contraction problem by maintaining a slight positive pressure - about 3 PSI, per the manufacturer's specification - against the grease in the hub. When the hot hub hits cold water and the contents try to contract, the spring feeds a small amount of grease inward instead of allowing atmospheric pressure to pull water past the rear seal. The seal stays positive. Water stays out.

How the spring piston actually works - and the fill line that matters

The piston sits inside the cap and is pushed outward by a coil spring. Grease added through the zerk fitting in the center of the piston compresses against that spring. When the hub is correctly filled, the piston sits roughly 1/8 inch proud of the cap's front face. That 1/8-inch extension is the target, not a rough estimate - it is the specification stated on the Bearing Buddy manufacturer's page.

Checking the fill is straightforward. Press the rim of the piston with a fingertip. If it moves and springs back, the hub is at or near the right level. If the piston sits flush or recessed with no spring resistance, the hub needs grease.

First-time installs often need two or three top-up sessions because air pockets in the hub cavity escape after the initial fill and during the first few miles of driving. The piston will collapse inward as air bleeds out. Add grease, drive a short distance, recheck. Repeat until the piston holds its 1/8-inch extension consistently.

The fill error that destroys hubs is not under-filling. It is pumping grease past the point where the piston spring is fully compressed. When grease pressure exceeds the spring's travel limit, the excess has nowhere to go except past the rear grease seal into the hub drum area. Once the rear seal is compromised, water has a direct path in - which is the exact problem a Bearing Buddy is supposed to prevent. The manufacturer built in a pressure-relief path that allows excess grease to seep around the piston edges and into the cap barrel before the inner seal fails, but this only works within a reasonable range of overpressure. Forcing grease with a pneumatic gun or pumping repeatedly without checking piston travel bypasses the relief geometry entirely.

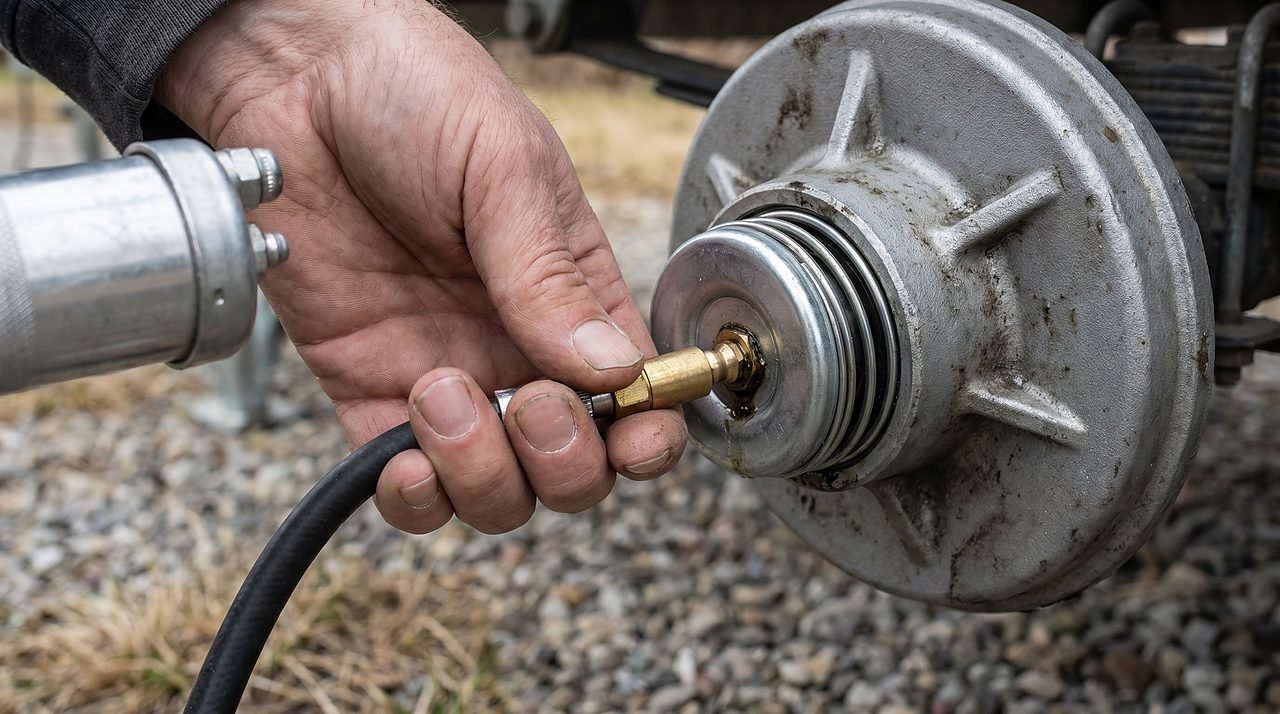

Use a hand-lever grease gun only. Add grease in two- or three-stroke increments, then check piston travel. Stop when the piston reaches 1/8 inch of extension. A full hub that receives one additional pump from impatience is survivable; a full hub that receives 20 extra strokes from a pneumatic gun is not.

The annual repack that Bearing Buddies do not replace

This is where the "install and forget" myth does the most damage. A Bearing Buddy protects against water intrusion during submersion. It does not clean corroded races. It does not replace grease that has broken down from heat cycling. It does not reveal pitted bearing rollers, a failing rear seal, or a spindle that has begun to score.

Dexter Group - one of the largest axle manufacturers supplying boat trailers - specifies in its official FAQ that "bearings should be lubricated every 12 months or 12,000 miles." That interval applies whether the hub has a standard dust cap, a Bearing Buddy, or any other bearing protector. The 12-month figure is driven by grease chemistry: lithium-complex grease oxidizes over time regardless of how well the hub is sealed, and a hub that looks fine from outside can be running on degraded lubricant that no longer provides adequate film thickness between the rollers and races.

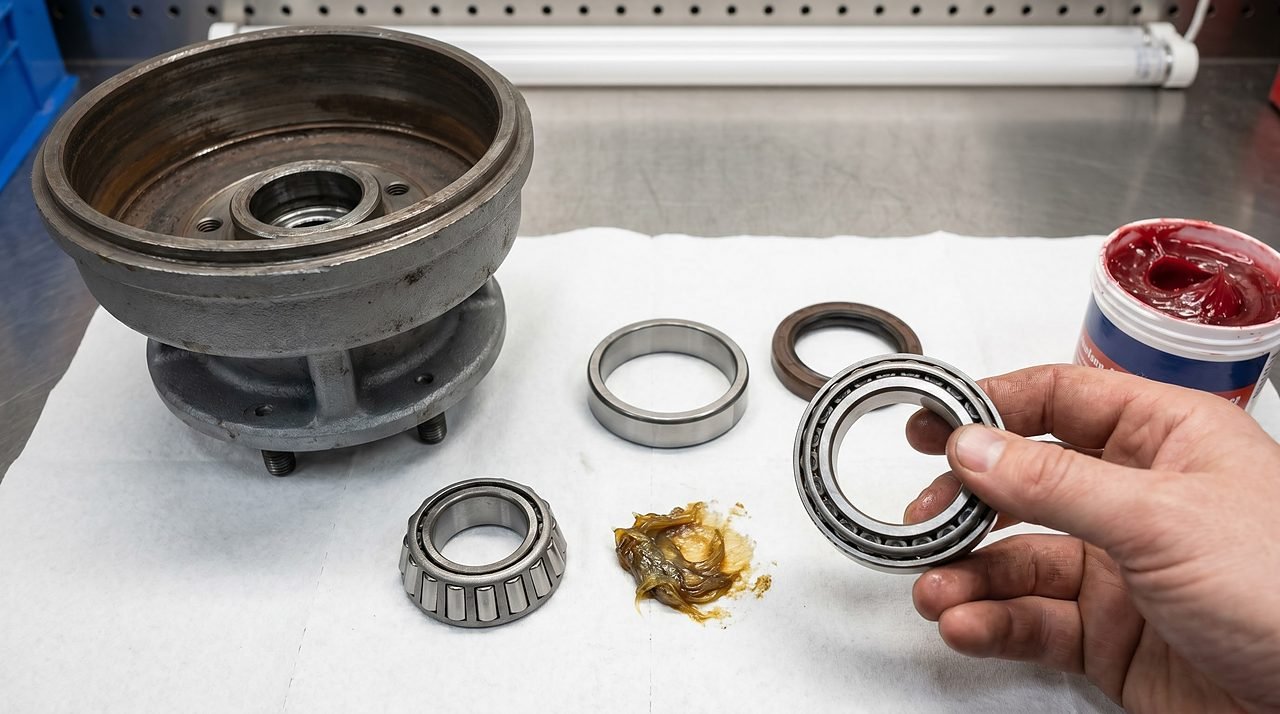

Annual service means pulling the hub, removing the old grease completely, inspecting the bearings and races for pitting or scoring, repacking with fresh NLGI No. 2 lithium-complex wheel-bearing grease, and inspecting the rear seal before reassembly. If the seal shows cracking, brittleness, or a lip that does not spring back when pressed, replace it. A replacement rear axle seal typically runs $10-$20 depending on axle size - a small cost at annual service compared to the bearing damage that follows a seal failure mid-season.

The full procedure for pulling and repacking trailer wheel bearings is covered in our guide to repacking trailer wheel bearings, including the correct packing sequence and how to read bearing wear patterns. For the broader annual maintenance picture, the boat trailer maintenance guide covers the complete service checklist including lights, brakes, bunks, and tire age.

What EZ-Lube axles do differently

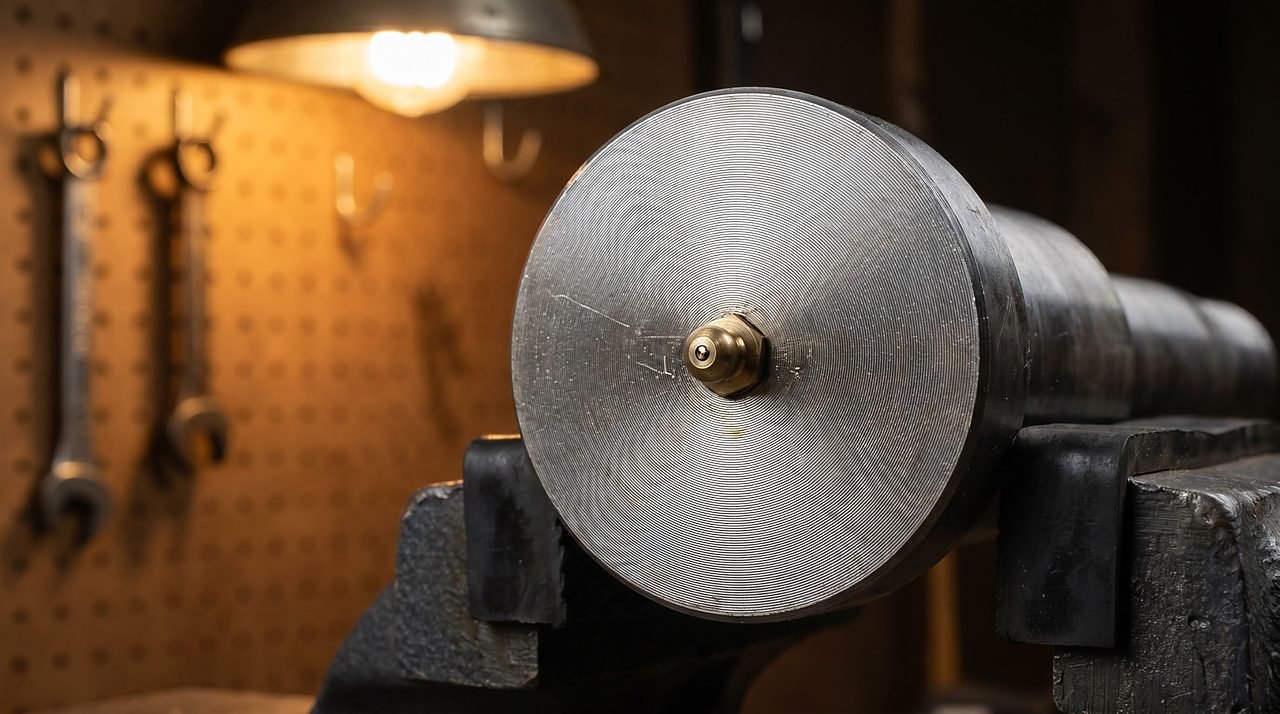

EZ-Lube (sometimes branded Nev-R-Lube by Dexter or similar names by other manufacturers) is a spindle design where grease travels through a drilled channel inside the axle shaft itself. A zerk fitting at the outer end of the spindle accepts a grease gun directly, and new grease flows inward through the spindle bore, reaching the inner bearing first and pushing old grease outward toward the outer bearing and into the cap area.

The practical advantage is convenience: adding grease does not require removing the hub cap or the dust cover. Between full annual services, the zerk lets you top up the bearing cavity without tools beyond the grease gun.

There are two EZ-Lube limitations worth knowing.

First, because the grease enters at the inner bearing and works outward, it takes the path of least resistance. If the grease cavity is already packed and resistance is high, new grease may push past the inner seal rather than traveling the full path to the outer bearing. Rotating the hub while pumping - slowly, by hand, a few turns between strokes - helps distribute grease more evenly and signals that the outer bearing is being reached when clean grease appears at the cap opening. Ruggedat's trailer bearing maintenance reference is specific on pneumatic guns: "Do not use a pneumatic grease gun. High pressure can push grease past the seal and contaminate the brakes."

Second, an EZ-Lube spindle does not provide the spring-loaded positive pressure that a Bearing Buddy cap does. Dexter's own lubrication guidance notes that EZ-Lube axles "are designed to allow immersion in water" - the spindle's internal grease column resists vacuum intrusion - but the mechanism is passive, not spring-loaded. At the ramp, a standard Bearing Buddy provides more aggressive protection against the thermal-contraction vacuum event than an EZ-Lube spindle alone.

Some owners run both: an EZ-Lube spindle for convenient between-season top-ups, plus a bearing protector cap over the outer end. This is not a common factory configuration but it is done. If your trailer has EZ-Lube spindles and you want to add a bearing protector, verify that the cap diameter matches - EZ-Lube spindles vary by manufacturer - and that the cap's grease path does not block the zerk fitting.

Side-by-side: Bearing Buddy vs. EZ-Lube vs. standard dust cap

Sizing and installation notes

Bearing Buddies and bearing protectors are sized by the hub bore diameter - the inside diameter of the hole where the cap presses in. Common sizes include 1.781-inch, 1.980-inch, 2.080-inch, and 2.328-inch for domestic boat trailer axles. The size is stamped on the old dust cap or can be measured with a caliper at the hub bore opening. Getting this wrong means the cap either falls out under load or cannot be seated without damaging the hub. Measure twice, order once.

Installation requires a rubber mallet or a block of wood to tap the cap evenly into the bore. Tap around the perimeter in small increments rather than driving one side in at a time, which cocks the cap and can score the bore. The cap should seat flush with a slight resistance. If it slides in with no resistance, the bore is worn and the hub needs replacement.

After installation, fill the cap fully before the first drive by adding grease through the zerk until the piston reaches the 1/8-inch mark. Drive 10-15 miles, let the hub cool, and recheck. Top up if the piston has receded as air bled out.

Warning signs that the system has already failed

Grease on the inside of the wheel or on the brake drum is the clearest signal that the rear seal is gone. This can happen from overfilling, a failed seal at last service, or a hub that ran dry. Do not simply wipe it off and continue. The correct next step is to pull the hub, replace the rear seal, and inspect the bearings for contamination before reinstalling. A rear seal that has allowed grease outward has also allowed water inward, and bearing damage has likely already begun.

A Bearing Buddy that presses fully flush - no extension, no spring feel - and cannot be filled further indicates one of three conditions: the grease fitting is blocked, the hub cavity has already failed (cracked hub, failed seal allowing grease to escape into the drum), or the piston mechanism itself has seized. Pull the hub and inspect.

Clicking or grinding from the hub area during straight-line driving points to a bearing in advanced wear. This is a stop-driving situation. A worn bearing generating noise can separate from the spindle within miles. Jack the corner, remove the wheel, and check the hub for play by grabbing the tire at 3 and 9 o'clock and 12 and 6 o'clock and trying to rock it. Any detectable play means the bearing is beyond service and the hub should not be driven until repaired.

The annual boat maintenance schedule is a practical place to build the bearing service into a recurring calendar reminder alongside other seasonal tasks so it does not slip.
