Boat electrical basics: battery care, bilge pump setup, and 12V wiring for DIY owners

Nearly every system on a typical powerboat or sailboat runs on 12-volt DC, and 12V DC is genuinely safe to work on yourself. The voltage cannot cause electrocution in normal circumstances, the circuits are simple, and the tools cost less than $50. What sends owners to a marina electrician is usually not complexity - it is uncertainty about where to start. This hub fixes that. Below you will find the three core electrical areas DIY owners handle most often: battery care and charging, bilge pump installation and testing, and basic 12V wiring and corrosion. Each section is also linked to a dedicated spoke article that goes deeper on that specific job.

One boundary to state clearly upfront: this guide stays on the 12V DC side of your electrical panel. Shore power, inverters, and any 120V AC wiring are licensed-marine-electrician territory. That line is not bureaucratic caution - AC at the dock kills people every season, and working on it without proper credentials is illegal in most jurisdictions. Everything in this hub is 12V DC.

Why boat electrical problems happen (and how they start)

Electrical faults are a leading cause of boat fires. BoatUS claims data show that 55% of boat fires are electrical in origin, and the boat's low-voltage DC system - batteries, wiring, accessories - causes roughly a third of all boat fires on its own, far more than the AC shore-power side. Most of those fires share the same three roots: corroded connections that arc, undersized or unprotected wire that heats up, and batteries that are improperly charged or vented.

Salt air is what turns a sound connection bad. Moisture penetrates insulation and migrates along the bare copper strands from the cut end of a connection, raising resistance until a clean crimp becomes a hot joint within a season. The fix is not complicated, but it requires using the right materials from the start - marine-grade tinned copper wire, adhesive-lined heat-shrink terminals, and dielectric grease on every connection.

The good news is that the American Boat and Yacht Council's E-11 standard, which governs DC electrical systems on recreational boats, is built around practical owner-level reasoning. Once you understand its two key numbers - 7 inches and 3% - the logic of a 12V marine circuit becomes obvious.

Battery care and charging

A dead battery at the launch ramp is one of the most common owner complaints, and it almost always traces back to one of three things: a battery that was never fully charged (a 3-stage charger fixes this), a parasitic draw that drained it while the boat sat, or a battery that aged past its service life and will not accept a charge regardless of what you do.

Choosing the right battery for the job

Marine batteries come in three functional types - starting, deep-cycle, and dual-purpose - and in several BCI group sizes that define physical dimensions and approximate capacity. Group size and battery type are independent: a Group 27 AGM can be a starting battery or a deep-cycle, depending on its internal plate design.

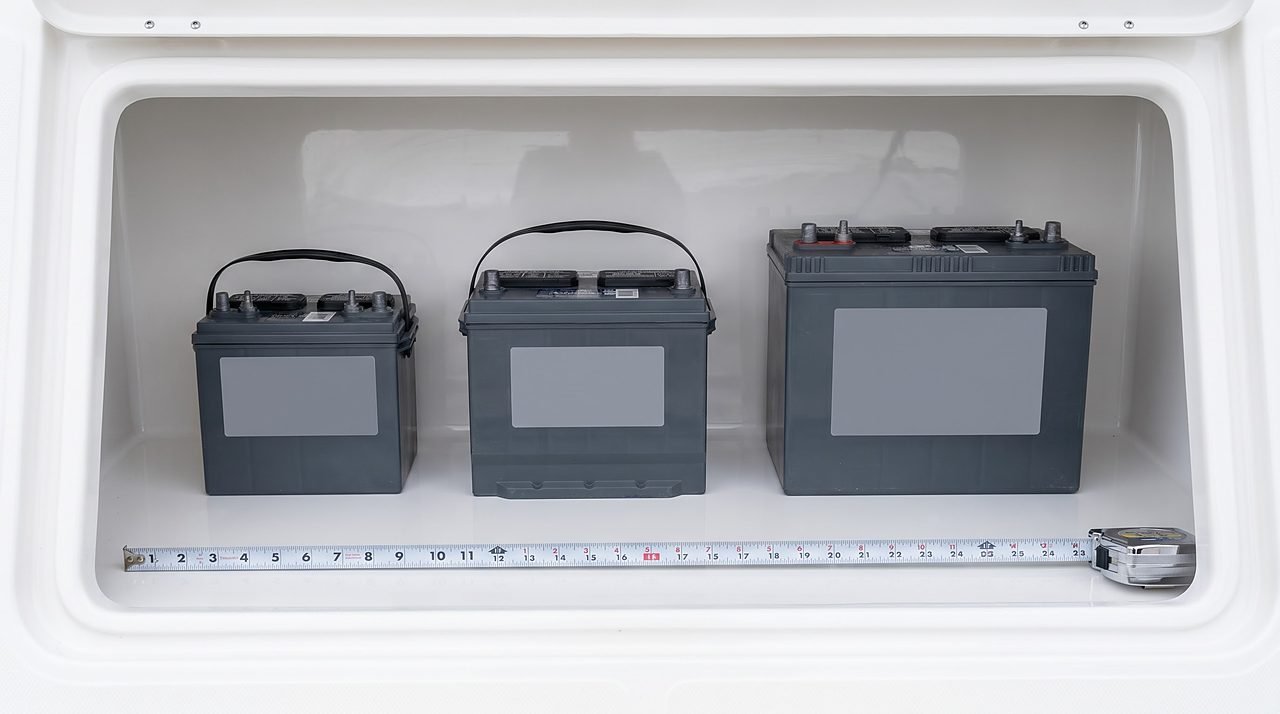

The group-size figures above follow the BCI (Battery Council International) standard, which fixes the case dimensions for each group number; the exact Ah and CCA within a group vary by manufacturer and chemistry, so treat the ranges as typical rather than absolute. CCA (cold cranking amps) measures available starting current at 0 degrees F. MCA (marine cranking amps) is measured at the warmer 32 degrees F, so the same battery's MCA number runs roughly 20-25% higher than its CCA - a difference of test temperature, not of capability. Compare like against like when shopping: a battery's MCA will always look bigger than its CCA, so do not read a high MCA as stronger cranking than a CCA rating from a competing battery. AGM batteries carry a sealed, spill-proof construction and tolerate vibration better than flooded lead acid, which matters on a boat. They also accept charge faster. The trade-off is price: a quality Group 27 AGM runs $180-$260 versus $100-$160 for a comparable flooded battery. The AGM vs. flooded marine battery guide on this site walks through when the premium is worth it.

How to charge a marine battery correctly

A single-stage automotive trickle charger will charge a boat battery, eventually, but it never reaches the absorption and float stages that bring a lead-acid or AGM battery to a genuine full charge. Over months, the plates sulfate and capacity shrinks. A 3-stage smart charger runs a bulk phase (high current, charges to roughly 80%), an absorption phase (tapered current, fills the remaining 15-20%), and a float phase (maintenance voltage, holds 100% without overcharging). Leave a smart charger connected all winter and the battery arrives at spring commissioning ready to work.

Check the charger's rated output against your battery bank's total amp-hour capacity. A rough rule of thumb: charge current should be 10-20% of the battery's Ah rating. So a 100 Ah Group 27 wants a charger rated at 10-20 amps. Charging at a fraction of that slows recovery but will not harm a healthy battery; charging well above it generates heat that shortens battery life.

One stop-line if you have switched to lithium: the bulk-absorption-float advice above is for flooded and AGM lead-acid only. A drop-in LiFePO4 (lithium iron phosphate) bank needs a charger set to a lithium profile, and it must not be left on a lead-acid float voltage all winter. Lithium does not want to sit at a maintenance float the way lead-acid does - holding it near full charge that way provides no benefit and quietly eats cycle life. If your bank is lithium, use the charger's LiFePO4 setting (or a dedicated lithium charger) and follow the battery maker's storage state-of-charge guidance instead of leaving a lead-acid maintainer connected.

For boats that sit between seasons, read through the winterizing checklist, which includes the correct battery storage procedure and when to use a maintenance charger versus a full disconnect.

Testing for a parasitic draw

If your battery keeps dying between trips and the charger reads full at departure, something on the boat is drawing current while it sits. The diagnostic takes ten minutes with a multimeter.

1. Turn off every switch on the boat, including the battery selector switch, and pull the ignition key.
2. Set the multimeter to DC amps (or milliamps for finer resolution).
3. Disconnect the negative battery cable and connect the meter in series between the cable end and the negative terminal. The boat's current is now running through your meter.
4. A reading under 50 milliamps is normal standby draw for most boats. A reading above 50 mA indicates a draw worth chasing.
5. Pull fuses one at a time from the fuse block while watching the meter. When the number drops sharply, that circuit is your culprit.

Bilge pumps cycling on a stuck or dirty float switch are the most common source of overnight drain on a recreational boat. Inspect the float, clean the bilge, and confirm the pump stops automatically when water drops below the switch. The parasitic draw troubleshooting guide and the battery keeps dying guide cover the full diagnostic with fault tables.

The battery switch: 1, 2, BOTH, OFF, and the combiner

No single thing confuses new owners more than the battery selector switch, and most of the parasitic-draw and dead-battery problems above pass through it. Here is what the positions actually do on the common 1/2/BOTH/OFF rotary switch:

• 1 and 2 each feed the boat from one battery (or one bank) at a time. On a two-battery boat this is usually how you reserve one battery for starting and run accessories off the other.
• BOTH parallels the two batteries - useful to combine capacity for a hard start, but if you leave it here, a heavy accessory load can flatten both batteries at once and leave you with nothing to crank the engine. Use BOTH deliberately, not as the default.
• OFF disconnects the house and engine loads from the batteries. Critically, this also kills the parasitic draws - which is exactly why a clean boat reads near zero on the parasitic-draw test with the switch off.

A cleaner modern setup leaves the switch on a dedicated start battery and adds a combiner - an automatic charging relay (ACR) or voltage-sensitive relay (VSR) - to manage the house bank. The combiner watches for charging voltage: when the alternator or shore charger is running, it closes and charges both banks together; when charging stops, it opens and isolates them. That isolation is the point. A house bank drained overnight by electronics cannot pull down the start battery through an open ACR, so the engine still cranks in the morning. This is the wiring that turns "my battery is always dead at the ramp" into a non-issue.

One consequence matters for the bilge pump: the automatic bilge circuit must NOT pass through the selector switch, because turning the switch to OFF when you leave the boat would also disable the pump. That is why the float switch wires straight to a battery through its own fuse, as covered in the wiring section below - it is the one circuit that deliberately ignores the OFF position.

Bilge pump installation and testing

The bilge pump's job is simple: get water out of the boat before it becomes a problem. Its wiring job is slightly harder, because the pump must run automatically from a float switch even when the helm switch is off and even when the battery selector is in the off position. A pump that only works when you are present is not a safety system - it is a convenience.

Sizing the pump for your boat

Rated GPH figures on bilge pump boxes are measured at zero head - meaning the pump outlet is at exactly the same height as the inlet, with no hose run. On an actual boat, routing discharge hose up and over the side rail imposes 3-5 feet of head pressure that commonly drops real output by 30-50% (the actual figure depends on hose diameter, total rise, and pump model - check your pump's head curve for a precise number). A pump labeled 1,500 GPH may deliver 900 GPH in practice. Size with that correction built in.

The GPH targets above follow the common rule-of-thumb sizing tied to ABYC H-22, the voluntary standard that governs electric bilge pump systems: boats under 26 feet should aim for 1,000-1,500 GPH of total rated capacity, and boats 26-36 feet for 1,500-2,500 GPH. There is no recognized "750 GPH is enough" tier for any boat - a bilge pump is a dewatering safety system, and undersizing it to save a few dollars is the wrong place to economize. H-22 also points owners toward at least one primary automatic pump plus a backup wired on its own circuit with its own float switch. On any boat 26 feet or longer, that dual-pump setup is the minimum reasonable baseline.

Wiring the pump correctly

The wiring topology that fails most often is the one where the float switch runs through the helm switch: water rises, float trips, helm switch is off, pump does not run. Do it this way instead:

1. Run a fused positive wire from the battery directly to the float switch. This circuit bypasses the main battery selector switch (the 1/2/BOTH/OFF switch covered above), so the float switch controls the pump even when the selector is turned to OFF and the rest of the boat is dead.
2. Connect the float switch output to the pump's positive lead.
3. Run a separate positive wire from the helm's manual bilge switch to the pump's positive lead (an OR junction). Either the float or the manual switch can fire the pump.
4. Run the pump's negative wire to the boat's DC ground bus.
5. Locate the inline fuse at the battery end of the circuit, within 7 inches of the positive terminal. This matches ABYC E-11's overcurrent protection placement rule.
6. Use 16-gauge tinned marine wire for runs under 10 feet on a 1,000 GPH pump; step up to 14-gauge for longer runs or higher-draw pumps.

All splices and connections must sit above the normal bilge water line, or be made with fully waterproofed, adhesive-lined heat-shrink connectors rated for submersion. Salt water in an open butt splice will wick up the wire and corrode the connection within a season.

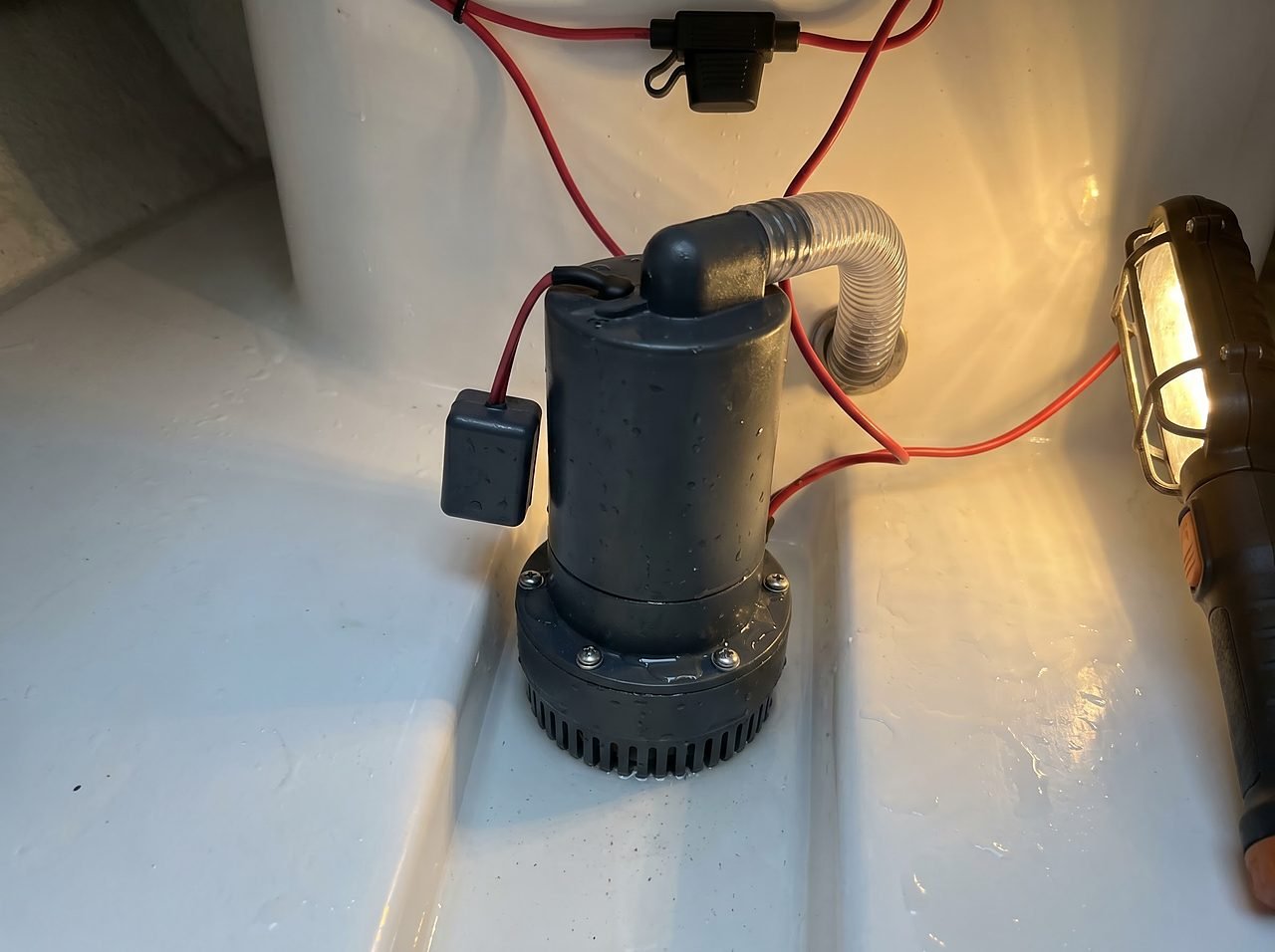

After installation, test the float switch by lifting it manually with your hand and confirming the pump runs. Then test the manual helm switch. Check both paths every spring as part of your commissioning routine - the full procedure is in the bilge pump installation and testing guide.

If your pump runs constantly - cycling on and off even when the bilge looks dry - the float switch is usually the cause. A grain of debris or a slight tilt of the boat can hold the float just above its trip point. The bilge pump keeps running guide walks through float switch replacement and the other causes of continuous cycling.

12V wiring, corrosion, and the ABYC E-11 rules that matter

You do not need to memorize the whole ABYC E-11 standard. Two numbers handle the majority of DIY wiring decisions, and understanding the reasoning behind them makes the rest obvious.

The 7-inch rule and overcurrent protection

Every unprotected positive wire run on a boat is a potential fire source if it chafes against a metal edge. ABYC E-11 requires a fuse or circuit breaker within 7 inches of the battery's positive terminal on any unprotected wire. If the wire is run inside a conduit or sheath, that limit extends to 72 inches. The logic: the closer the fuse is to the battery, the shorter the section of wire that can arc unprotected in a fault.

Automotive blade fuses are acceptable in marine panels. The container matters more than the fuse type: marine-rated fuse holders with corrosion-resistant contacts and covers that keep salt air off the terminals. Never use a higher-amperage fuse than the wire's rated ampacity - that defeats the protection entirely.

The 3% voltage drop rule

Voltage drop is resistance × current. Every foot of wire, every corroded connection, and every undersized terminal adds resistance and drops voltage. ABYC E-11 caps voltage drop at 3% for critical circuits - which includes bilge pumps, navigation lights, and electronics - and at 10% for non-critical loads like cabin lighting. On a 12V system, 3% is just 0.36 volts. Stay inside that and a bilge pump still sees about 12.3V down at the pump (alternator/charged-system voltage minus the drop) and moves its rated water. Let the drop blow past spec - say an undersized, corroded run that arrives at 11.5V, roughly a 4% to 7% drop depending on system voltage - and the pump turns slower and moves measurably less water in the exact emergency you sized it for. The 0.36V ceiling is not a suggestion; it is the line between a pump that performs and one that quietly underdelivers.

The practical fix is almost always wire size. Longer runs need heavier gauge wire. A chart lookup or the basic ABYC wire-sizing formula (wire cross-section in circular mils = 10.75 x current x round-trip length / allowable voltage drop in volts) tells you exactly which AWG to use. When in doubt between two gauges, go heavier - there is no downside to less resistance.

Materials that hold up in a marine environment

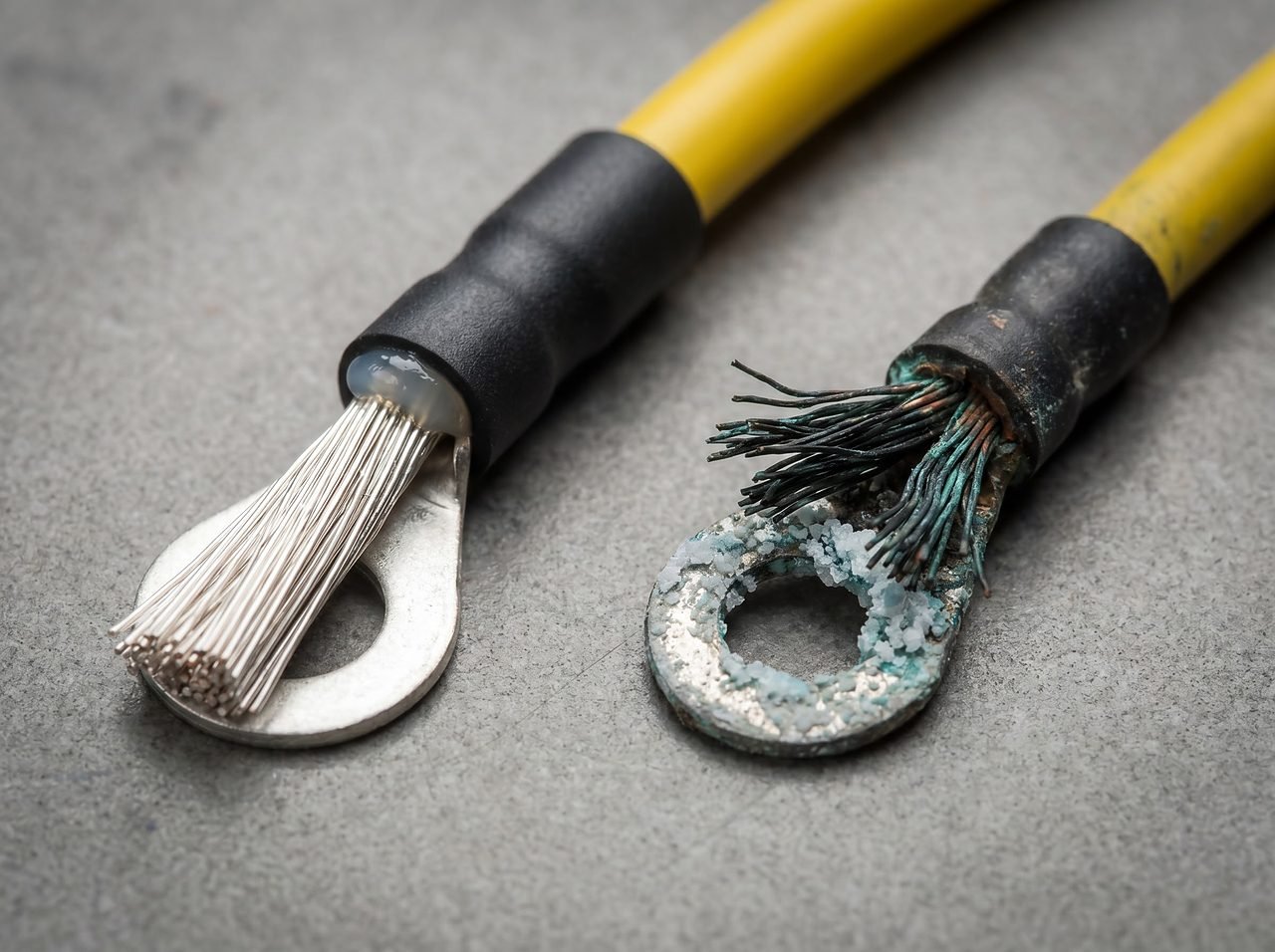

Household electrical wire has bare copper strands. Marine wire has strands that are individually tinned with a thin coat of tin before the insulation is applied. When salt air contacts bare copper, it forms copper oxide and copper sulfide at every strand - both poor conductors - and the corrosion migrates under the insulation from the cut end. Tinning blocks that path. After a few seasons at a saltwater marina, the difference shows up plainly: the bare-copper joint reads high resistance and looks dull and crusted at the strands, while the tinned joint stays bright and conducts as it did on day one.

Beyond the wire itself:

• Use adhesive-lined (dual-wall) heat-shrink terminals, not plain crimp sleeves. The adhesive flows into the wire strands under heat and seals the entry point.
• Apply dielectric grease to every exposed terminal connection after assembly. It will not interfere with conductivity but will prevent moisture from reaching the metal.
• Route wires away from fuel lines, exhaust, and areas where bilge water collects. Every wire that runs through a bulkhead needs a grommet to prevent chafe.
• Terminate at labeled, covered terminal blocks or a fuse panel - loose wire ends floating in a bilge are a starting point for future shorts.

Corroded battery terminals: what causes it and how to clean it

The white or blue-green crust that forms on battery terminals is a mix of lead sulfate and copper salts from the terminal post and cable lug. It is not just cosmetic: even a thin layer of that crust adds enough resistance to slow engine cranking, confuse charging systems, and generate heat at the connection under load.

Cleaning procedure: disconnect negative first, then positive (reverse when reconnecting). Mix one tablespoon of baking soda into a cup of warm water and apply with an old toothbrush - the crust fizzes and loosens in about 30 seconds. Rinse with clean water, dry thoroughly, then apply a thin coat of dielectric grease or dedicated battery terminal protector spray before reconnecting. Reconnect positive first, then negative.

The spoke article on corroded battery terminals covers the full procedure including when a terminal is too far gone to save and needs replacement with a properly crimped marine lug.

The stop-lines: where DIY ends and a licensed electrician starts

12V DC is forgiving. 120V AC shore power is not. If any of the following conditions apply, stop and call a certified marine electrician (ABYC-certified preferred):

• Anything connected to the shore power inlet, the AC panel, the inverter's AC output, or the generator's 120V circuits
• Any evidence of arc damage (burn marks, melted insulation, discolored wire) on existing circuits - this indicates a fault already in progress, one that must be diagnosed before any additional wiring is added
• Any wiring run that you cannot trace from end to end to confirm both the source and the overcurrent protection
• Any boat that has had bilge flooding, fire, or previous amateur wiring work that departed from ABYC standards - the entire system should be inspected before adding to it

Inboard and sterndrive owners - one safety requirement before every start: federal regulation 33 CFR 183.610 requires that boats with enclosed engine compartments run the bilge blower for at least 4 minutes before starting the engine, then sniff the compartment for gasoline vapor before turning the key. Gasoline vapor is heavier than air and pools in the bilge - a bilge pump cannot remove it, only the powered ventilation blower can. This is unrelated to bilge pump installation, but any owner working with bilge-area wiring should know the rule before the season begins.

For routine seasonal maintenance that touches the electrical system - battery checks, connection cleaning, winterizing procedures - the boat maintenance schedule has a month-by-month checklist that keeps the 12V side of the boat healthy without requiring a single trip to the marina.
