AGM vs flooded marine battery: how to choose the right chemistry for your boat

Your battery compartment and how you use the boat decide which chemistry wins - not marketing claims on a box. A flooded lead-acid battery costs roughly 40-50% less than a comparable AGM and will last 3-5 years if you top off the cells with distilled water monthly, keep the compartment vented, and put the boat in the water regularly. An AGM costs more upfront, seals its electrolyte inside a fiberglass mat so it never needs watering, tolerates rough-water vibration better, and can be mounted in a sealed compartment without a hydrogen venting system. Lithium (LiFePO4) sits in a third tier - substantially lighter, far more cycles, but it requires a lithium-compatible charger and a battery management system, and its premium only pays off in specific use cases. This guide matches each chemistry to the situations where it actually makes sense.

What separates flooded from AGM construction

A flooded lead-acid battery suspends its lead plates in liquid electrolyte. During charging, the electrolyte produces hydrogen and oxygen gas, which vents to the atmosphere through removable caps. That gas loss is why you have to add distilled water - the water component of the electrolyte evaporates with the gas. Trojan Battery's maintenance guidance recommends checking water levels once a month until you learn the specific consumption rate for your charger and climate. Use distilled water only; tap water introduces minerals that degrade the plates. Add water after a full charge, never before, or you risk an acid overflow.

ABYC Standard E-10 is direct on the venting requirement: "A vent system or other means shall be provided to permit the discharge from the boat of hydrogen gas released by the battery." Battery boxes whose cover forms a pocket over the battery must be vented at the uppermost portion of the cover. Hydrogen accumulates at ceiling height - a sealed battery compartment with a flooded battery is a fire and explosion risk.

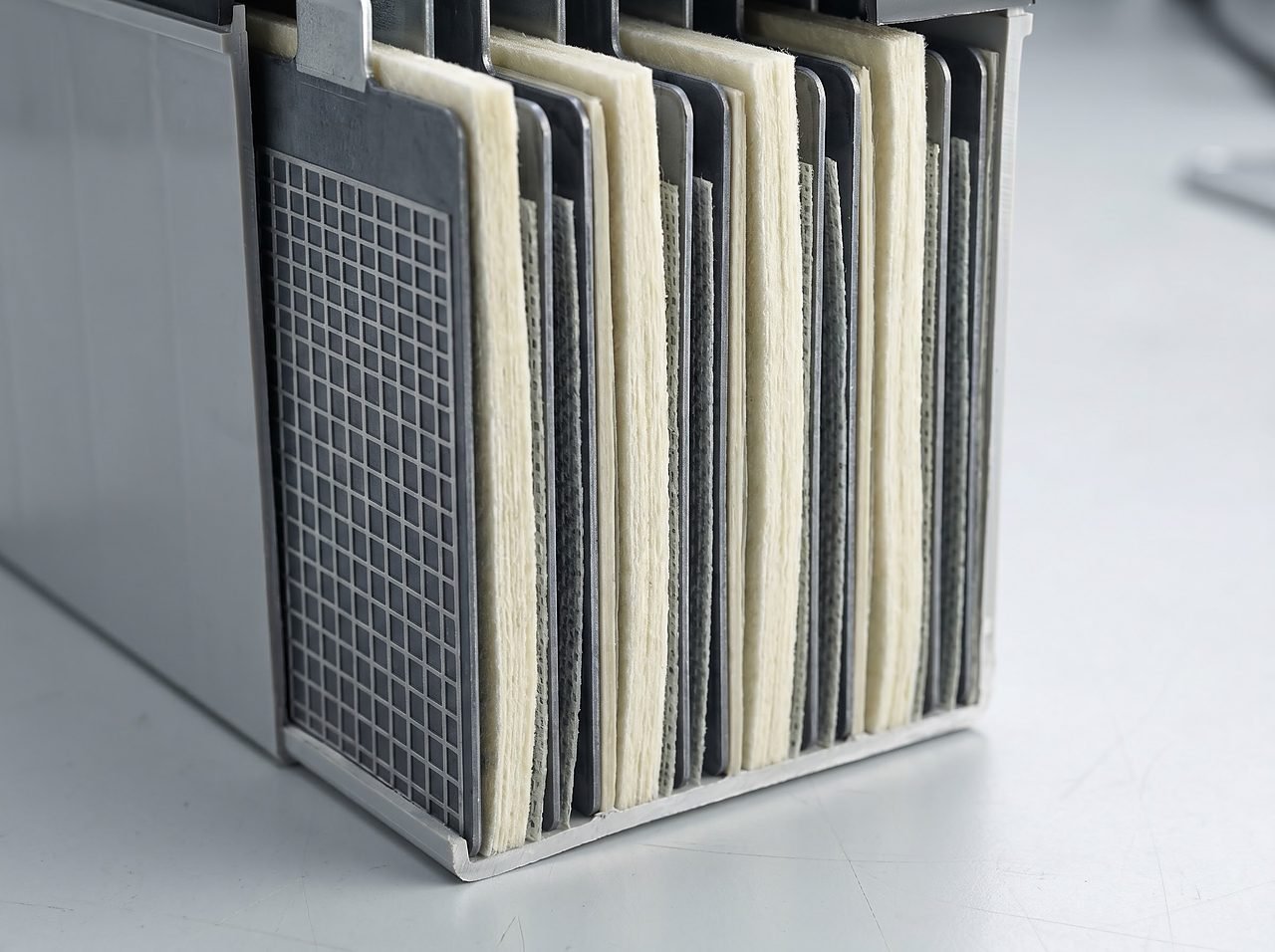

An AGM (absorbed glass mat) battery replaces the liquid electrolyte with ultra-fine fiberglass matting saturated with electrolyte and compressed tightly between the plates. The mat immobilizes the electrolyte. Gas produced during charging recombines internally rather than escaping, which is why AGM batteries are sealed and maintenance-free. Lifeline Battery's published spec for the GPL-24T states the battery produces less than 2% hydrogen gas under severe overcharge - the concentration required for flammability is 4.1%, so a properly charged AGM stays well inside the safe margin.

The compressed mat construction also makes AGM plates harder to vibrate loose. Power-Sonic's technical data indicates AGM vibration resistance is significantly higher than flooded batteries. On a rough-water boat running offshore chop or wakes in an ICW channel, that matters. Flooded plates can shed active material from vibration over time, permanently reducing capacity.

Charging requirements - this is where most owners make mistakes

Flooded and AGM batteries charge at different voltage profiles, and the wrong charger setting is the most common way to kill an AGM battery early. A standard 12V flooded battery bulk-charges at 14.1-14.4 V. An AGM requires a higher absorption voltage in the 14.4-14.8 V range to fully saturate the mat. If your charger is set to the flooded profile, it will undercharge an AGM and cause sulfation. Set it too high and you over-pressurize the sealed case - damage that cannot be reversed.

Equalization is the bigger trap. Periodic equalization charges push a flooded battery to 15-16 V for a controlled period to break up acid stratification and sulfation on the plates. This is standard maintenance for flooded banks. Do the same to an AGM and you destroy it. Discover Battery's charging documentation states clearly that most AGM batteries must not be equalized. Any smart charger you buy should have a dedicated AGM mode; if it only has "flooded" and "gel," it is the wrong charger for an AGM.

The self-discharge difference compounds over a storage season. Flooded batteries shed 5-15% of charge per month at 77 degrees F. The Lifeline GPL-24T - a well-regarded marine AGM - specifies a 2% per month self-discharge rate at the same temperature. A flooded battery left unattended from October to April loses most of its charge and risks a deep sulfation event. An AGM left on the same schedule loses a fraction of that. Both benefit from a smart maintainer during storage; the gap between them is just much smaller with AGM. The guide at trickle charger vs smart maintainer covers how to size that device for your bank.

Usable capacity - the number that matters on the water

A battery's rated amp-hour figure is not the same as its usable amp-hour figure. Flooded deep-cycle batteries are generally limited to 50% depth of discharge (DoD) to preserve cycle life - drain a flooded group 27 (80-100 Ah typical) past the 50% mark repeatedly and it will reach end of life significantly faster than rated. AGM tolerates deeper discharge; 80% DoD is widely accepted for quality AGM designs without the same acceleration of plate damage.

In practice, that means a 100 Ah AGM delivers roughly 80 Ah of usable power before it needs a charge. A 100 Ah flooded battery delivers about 50 Ah. To get equivalent usable capacity from flooded, you need a meaningfully larger bank. That size difference matters on a boat where compartment space is fixed.

On cycle life, the gap is also significant. AGM batteries in marine service typically reach 500-800 charge cycles before capacity degrades below 80% of rated. Comparable flooded batteries in the same application run closer to 300-500 cycles. At two charge-discharge cycles per week of heavy summer use, a flooded battery hits that ceiling in roughly 3-5 seasons; a quality AGM stretches closer to 5-8 seasons under the same schedule, though real-world results vary with charging habits and temperature.

The table below summarizes the practical decision points side by side.

Where flooded still makes sense

A flooded battery is the right call when three conditions are met: the compartment is vented to atmosphere (or easily made so), someone is willing to check water levels about once a month during the season, and the boat goes in the water regularly enough that the battery stays reasonably charged between uses. Day boats trailered to a freshwater lake every weekend fit this profile almost perfectly. The lower purchase price is real, and a well-maintained flooded battery covering 150-200 seasonal cycles per year will reach 3-4 seasons of use without complaint.

Where flooded batteries fail is equally predictable. A boat stored for months with a flooded battery that was not fully charged before layup risks deep sulfation - a condition where lead sulfate crystalizes on the plates and resists normal charging. BoatUS research indicates that battery-related issues account for a substantial share of DC electrical problems on inboard-powered boats. Most of those failures trace to improper storage or neglected maintenance, not a fundamental chemistry problem.

Understanding what keeps any marine battery alive is covered in more depth at boat electrical basics - particularly the section on charging system output and why a marina shore charger is not always enough to hold a flooded bank through a busy weekend.

Where AGM justifies the price premium

Four scenarios reliably tip the math toward AGM.

First: a sealed or poorly vented compartment. If adding a vent to your battery box requires fiberglass work or routing a hose through a bulkhead, the labor cost alone often narrows the gap between flooded and AGM considerably. A sealed compartment with a flooded battery is a code violation under ABYC E-10 and a genuine fire risk - BoatUS data attributes 19% of all fires on inboard-powered boats to engine and battery sources combined.

Second: rough water. Offshore runs, inlet crossings, and wakes translate to sustained vibration in the battery box. AGM construction - plates held firmly in compressed mat - handles that punishment far better than flooded plates over multiple seasons. Many center console and walkaround builders have moved to AGM as the standard fitment on their rough-water models for exactly this reason.

Third: seasonal storage with minimal maintenance. If the boat sits from October through April and you are not running a smart maintainer on it, AGM's 1-3% monthly self-discharge rate gives you a meaningful buffer. A flooded battery at 5-15% monthly loss can drop below the recovery threshold before spring launch.

Fourth: a mixed or complex electrical load - chartplotter, VHF, fish finder, live well pump, and bilge pump all running simultaneously. The deeper usable DoD of AGM (80% vs 50%) means a smaller bank delivers the same run time, which can matter when you are fitting a replacement into a tight compartment sized for the original OEM battery.

If your boat is already throwing error codes or the battery is not holding charge, the diagnostic steps at boat battery keeps dying will help you isolate whether the issue is the battery itself, a failing alternator, or a parasitic draw before you invest in a replacement.

Where lithium (LiFePO4) actually pays off

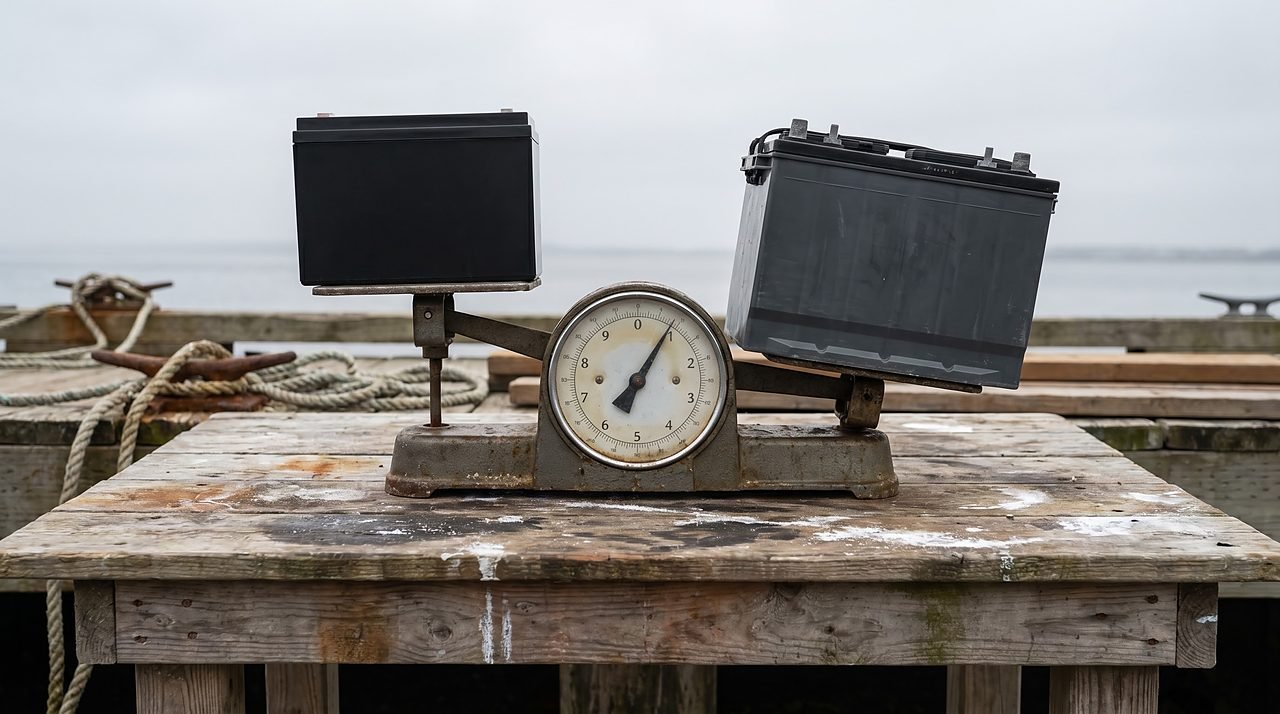

LiFePO4 chemistry offers 3,000-5,000 charge cycles and weighs roughly 40-70% lighter than a comparable lead-acid or AGM bank for the same usable capacity. A 100 Ah lithium battery at 80-90% usable DoD delivers more power from a 25-30 lb package than a 60 lb AGM bank at 80% DoD. That weight saving is meaningful on a performance boat where every pound affects plane speed and fuel consumption.

Two requirements must be met before lithium makes practical sense. The first is a lithium-compatible charger. BMPRO's technical FAQ on LiFePO4 installation states the charger must not contain a sulphation/equalization setting, because the high-voltage equalization cycle that benefits flooded batteries will damage lithium cells. If your existing onboard charger does not have a dedicated lithium mode, add the charger cost to your lithium battery budget. The second requirement is a battery management system (BMS). Quality marine LiFePO4 batteries include an integrated BMS that handles cell balancing, over-discharge cutoff, and thermal protection - but you need to verify this before buying a bare cell assembly marketed as a "drop-in" replacement.

ABYC E-13, the standard specific to lithium battery installation on boats, adds requirements for thermal event containment and disconnect systems that go beyond E-10's basic flooded battery rules. If your boat is insured, check whether your policy has specific requirements for lithium battery installation compliance.

For most recreational boaters running a standard cuddy, bowrider, or offshore center console with a single-battery setup, the price premium for lithium does not produce a meaningful return over the boat's typical 10-15 year ownership window. Lithium earns its cost on a liveaboard, a serious tournament boat with a large trolling motor bank, or a performance boat where the weight savings genuinely change handling.

Matching your situation to the right battery

Work through these in order:

• Does your battery compartment have a working vent to the outside of the boat? If no, budget for AGM or add a vent before installing any flooded battery.
• Will someone check water levels monthly during the boating season? If the honest answer is no, flooded is the wrong choice regardless of price.
• Does the boat sit for more than 8 weeks at a time without being charged? AGM's lower self-discharge makes seasonal storage significantly less risky.
• Does the boat run in regular rough water - offshore, inlets, heavy wakes? AGM's vibration tolerance is a real engineering advantage in this environment.
• Is weight a genuine performance factor? Only then does LiFePO4's premium have a clear payback.

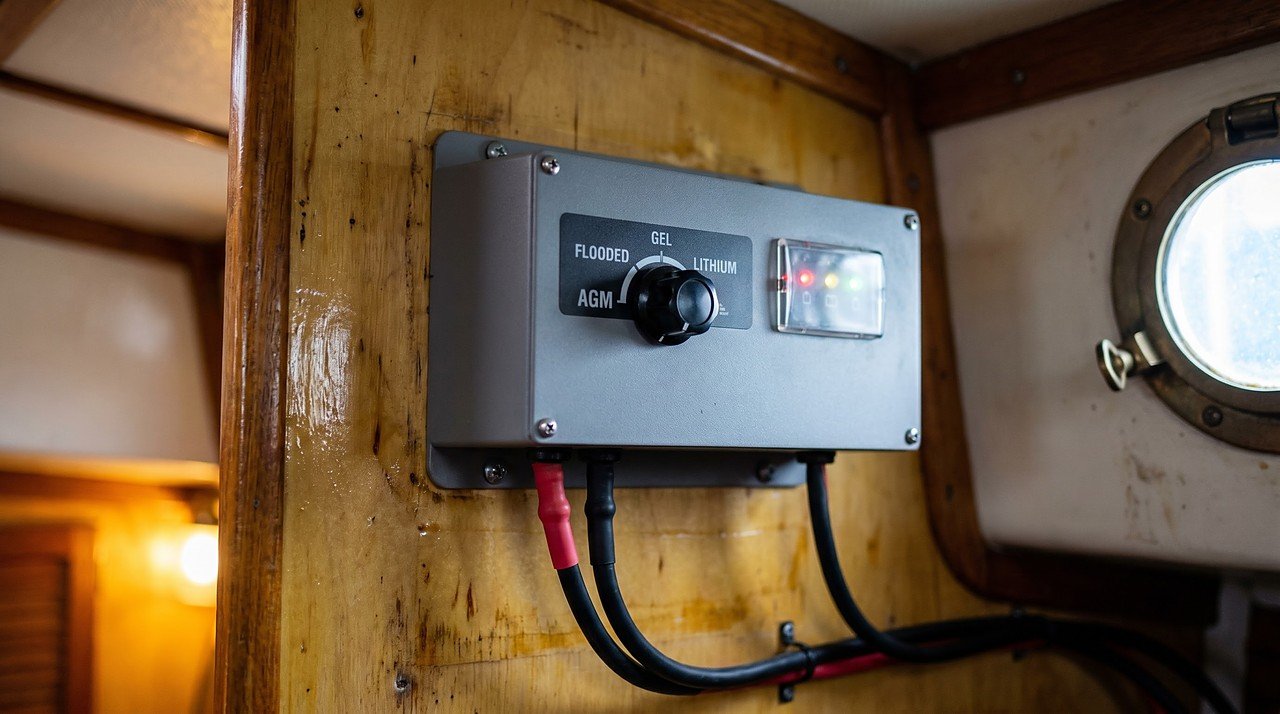

On the charger side: before installing any AGM or lithium battery, verify your onboard charger has a matching charge profile. Running an AGM on a flooded-only charger is not a minor inefficiency - it shortens the battery's life by measurable years. The guide on smart maintainers covers what to look for in a multi-stage charger that handles AGM correctly during storage.

Testing your current battery before buying a replacement is worth the ten minutes it takes. A battery that reads 12.6 V open-circuit after a full charge and holds 10.5 V or better under a load test is likely fine. One that shows surface charge of 12.6 V but drops below 10.5 V under load is internally damaged and will not hold up through another season regardless of chemistry. The procedure is covered step by step at how to test a boat battery.
