Best anode for your boat: zinc vs. aluminum vs. magnesium by water type

If your boat spends any time in freshwater or brackish water and you're still running zinc anodes, there's a real chance those anodes are doing nothing. Zinc forms an insulating oxide film in low-salinity conditions - a process called passivation - and once that film forms, the anode sits on your hull like a lump of inert metal while galvanic corrosion quietly works on your drive components, shaft, and hull fittings. The diagnostic is simple: pull your zinc anode after a full season. If it looks almost unchanged, it may be passivated and providing zero protection.

The settled guidance from corrosion engineers and every major engine manufacturer is direct: magnesium for freshwater, aluminum for brackish (and a sound universal choice), zinc for saltwater only. Getting this wrong is one of the most common and most invisible maintenance failures on freshwater and inland boats.

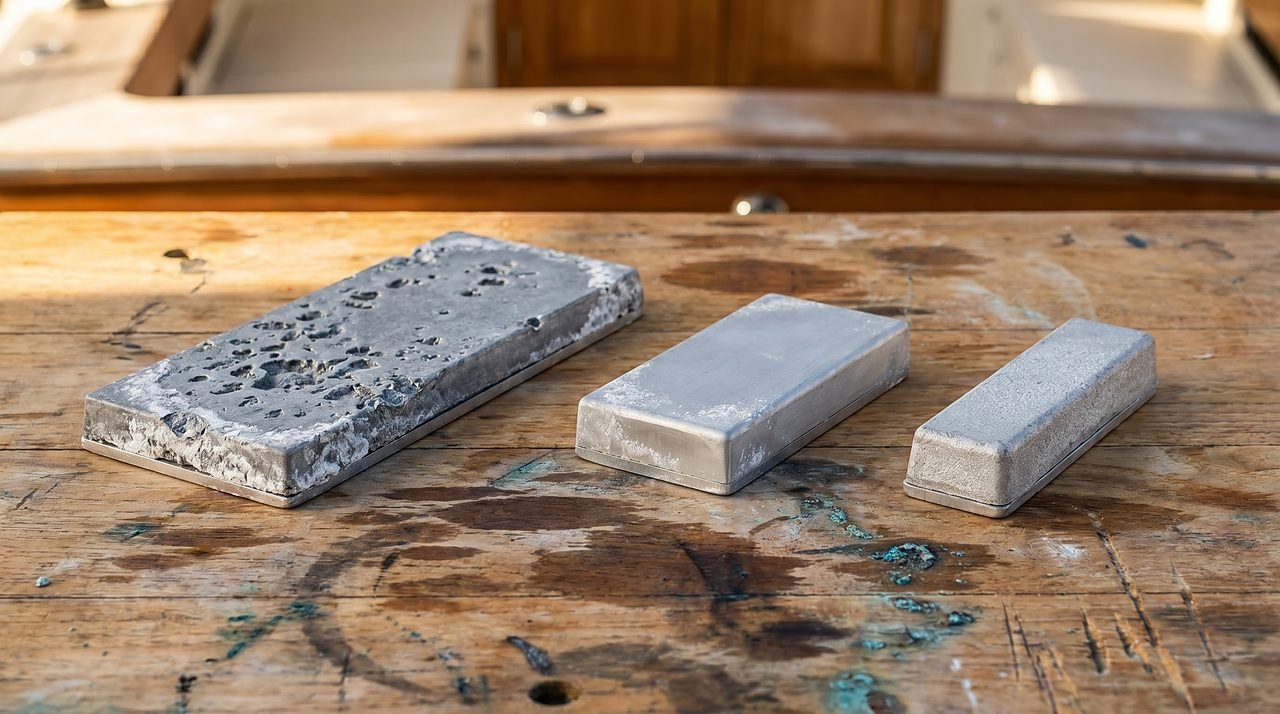

Why anode material is matched to water type

Galvanic corrosion is electrical in nature. When dissimilar metals are submerged together in water, a tiny current flows between them, and the less noble metal corrodes first. A sacrificial anode is bolted to your boat's metal components specifically to be that less noble metal - it corrodes so your prop, shaft, skeg, and outdrive don't. The key is that the anode must be electrochemically active enough to push protective current through the water surrounding your hull.

Freshwater has much higher electrical resistivity than saltwater. Less dissolved mineral content means less conductivity, which means any given anode has to work harder to push adequate current across the resistance gap. Zinc, at roughly -1.05 volts (vs. Ag/AgCl reference), barely generates enough driving voltage to overcome that resistance in fresh water even before passivation sets in. Magnesium, at approximately -1.60 volts, generates the extra current punch freshwater's resistivity demands. Aluminum sits in between at around -1.10 volts - active enough for fresh, brackish, and saltwater (ProBoatBuilder notes it "can be used in fresh, brackish, or sea water"), but magnesium's higher driving voltage (-1.60V vs aluminum's ~-1.10V) provides a wider safety margin in low-conductivity freshwater, making magnesium the better choice for dedicated freshwater use.

Passivation is the second piece. Performance Metals, whose Navalloy anode alloys are common on US production boats, states directly that "zinc anodes can become inactive after only a few months due to the build-up of an insulating film of zinc hydroxide" in freshwater conditions. That white powdery or glazed surface you may have seen on an old anode is not normal consumption - it is the passivation film. The anode beneath it is largely intact because it stopped working.

Professional BoatBuilder, in a 2026 article on galvanic and stray-current corrosion, summarizes the selection rule plainly: zinc should only be used in seawater, magnesium is suited exclusively for fresh water, and aluminum can be used in fresh, brackish, or seawater. Many marine corrosion engineers now recommend aluminum as the default upgrade even for saltwater boats, since it resists passivation, delivers slightly more protection than zinc, and eliminates the material confusion when a boat moves between water types.

Anode selection by water type and location - the decision table

The table below covers the three anode materials against water type, the specific boat locations where anodes mount, and the replacement trigger. Use the "Anode material" column as your selection guide; use the "Replace when" column as your inspection checklist.

Reading your anode's condition - and the passivation trap

A healthy, working anode in saltwater looks pitted and cratered, rough-surfaced, and measurably smaller than when you installed it. Gray-white, chalky, or crystalline texture is normal consumption in saltwater. Pull one that's lost 30-40% of its mass over a season and you'll see what active looks like.

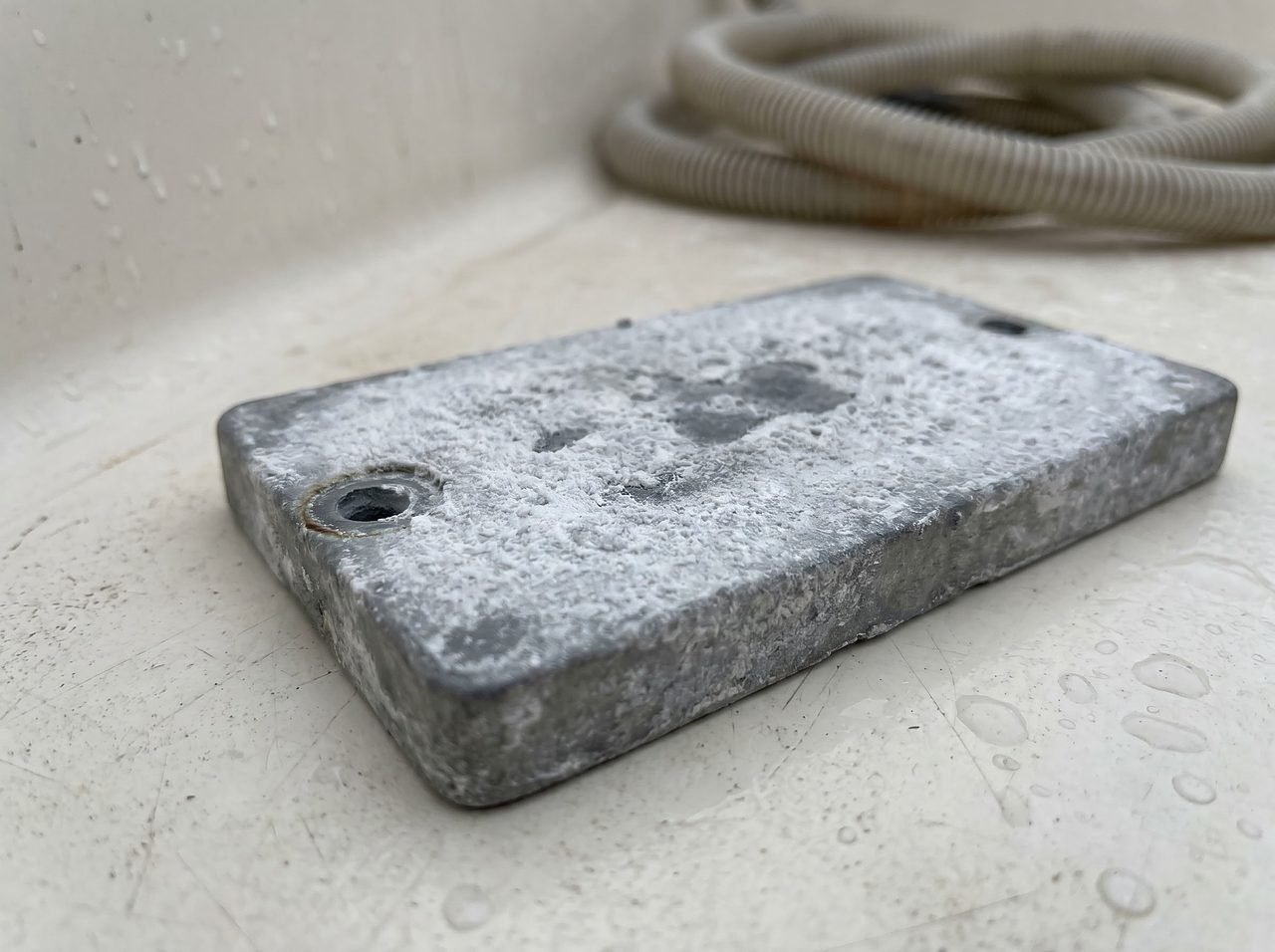

A passivated zinc in freshwater looks almost undamaged. The surface may have a dull white or powdery film, but the body of the anode appears intact - because no meaningful sacrificial consumption occurred. That coating is the zinc hydroxide passivation layer. The anode stopped protecting your boat long before it looks "used."

The powdery residue test: rub the anode surface. A working magnesium anode in freshwater will leave a gray-white powder on your palm, the product of active oxidation. If your zinc looks clean and hard after a full season in fresh water, it is not evidence of durability - it's evidence of failure.

The 50% rule applies across all three metals in their correct water type. Mercury Marine's guidance specifies replacing anodes when 50% of the material has been consumed. Yamaha's service schedule says the same: "replace approximately 50% worn or if cracked/hanging." Performance Metals states that anodes "should be changed, at least, on an annual basis (including anodes in fresh water) or when they have corroded to half their original size." Annual replacement is the minimum even if visible wear appears less than 50% - oxidation at the contact surfaces can insulate the anode from the hull metal even when the body looks intact.

One more signal worth knowing: if your anodes are disappearing dramatically faster than expected - a freshwater magnesium going in weeks rather than a full season, or a saltwater aluminum gone in a month - stray current is a likely culprit. Shore power connections at a marina link your bonding system to the marina's electrical network, and current leaking from neighboring boats can consume your anodes at a rate no sacrificial metal can match. A galvanic isolator on the shore-power ground is cheap insurance; without one, stray current corrosion can destroy a prop or sterndrive in days according to marine electrical engineers. Check the engine-maintenance schedule over at boat engine maintenance for the broader context of what belongs on an annual inspection list.

What "aluminum as the universal anode" actually means in practice

The advice to "just use aluminum everywhere" is common, and it's mostly sound - but with two hard boundaries. Magnesium in saltwater corrodes at a destructive rate. Martyr Anodes, a manufacturer whose alloys conform to NACE specifications, is unambiguous: "ONLY USE MAGNESIUM ANODES IN FRESH WATER!" Put magnesium on a coastal saltwater boat and you may find the anode consumed in weeks, leaving your hull metal unprotected for the remainder of the season. The flip side is that zinc in freshwater sits passive while corrosion runs unchecked.

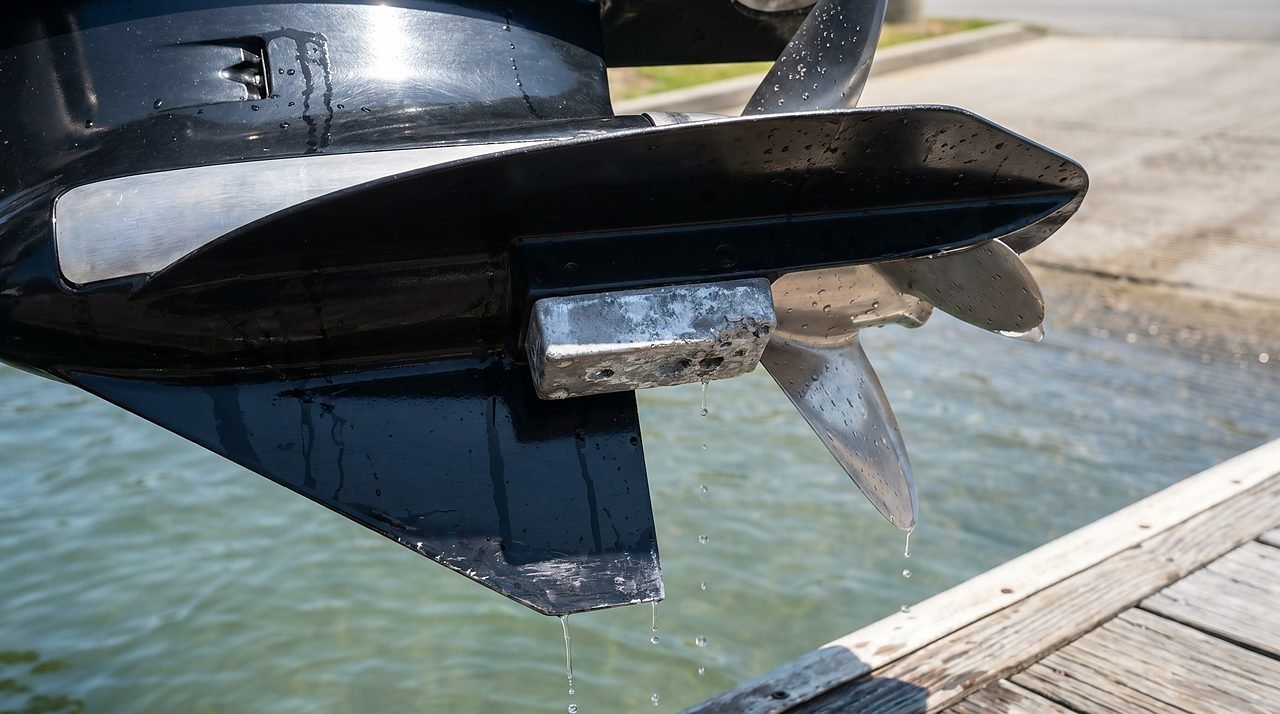

Aluminum is genuinely the safe middle choice for any boat that moves between water types - a lake-to-coastal trailered boat, a river-to-bay runabout, an ICW cruiser that sees everything from nearly fresh tidal rivers to full Gulf salt. Aluminum doesn't passivate across that conductivity range, and aluminum alloy anodes are now the factory-spec choice on many outboards and sterndrives, including MerCruiser drives for applications where water type varies.

For a dedicated freshwater boat that never leaves fresh water: magnesium only. The higher driving voltage is necessary, and there is no penalty for using it in its designed environment.

Installation details that determine whether the anode actually works

An anode that is not in electrical contact with the metal it's protecting is as useless as the wrong material. A few installation points matter more than most owners realize.

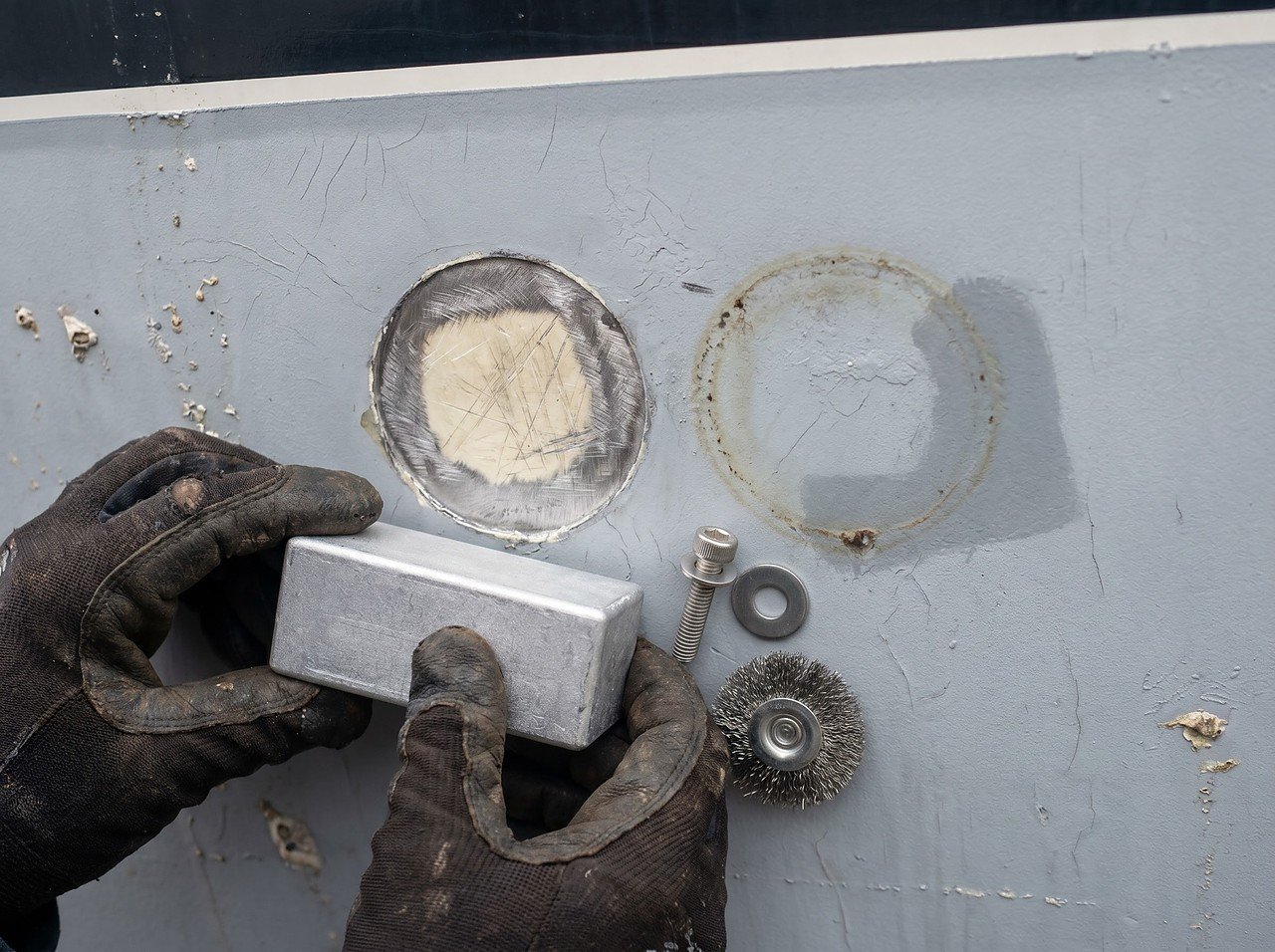

Contact surfaces must be bare metal. Any paint, corrosion, or sealant between the anode mounting surface and the hull/drive creates electrical resistance. ABYC E-2, the cathodic protection standard for recreational boats, specifies a maximum resistance of 1 ohm between any bonded component and its protective anode. That is a tight tolerance - enough that painted or corroded contact points fail it easily. Wire-brush the mounting pad before installing any replacement anode, even on a new installation, and torque mounting screws to spec so the metal-to-metal contact is solid.

Never paint an anode. The anode's exposed surface area is what produces protective current - paint it and you eliminate the reaction. Bottom paint applied carelessly over hull anodes is a common and invisible failure mode on boats that get annual haul-outs; the anode is "in place" per the inspection checklist while doing nothing.

Pencil anodes in closed-cooling systems deserve specific attention. These small cylindrical anodes thread into the heat exchanger or engine block and protect the internal cooling passages. They are almost universally overlooked at annual service because they require draining a section of the cooling circuit to access. Replace them annually without measuring consumption - they are inexpensive ($5-15 each depending on engine), and the consequence of one failing is internal corrosion of a heat exchanger that costs $400-1,200 to replace. Your engine service manual will list the exact locations and thread sizes for your model. For more on what lives on the annual engine checklist alongside anode work, see the engine maintenance guide.

Anode placement relative to bottom paint matters on trailered boats. Copper-based antifouling paints are incompatible with aluminum anodes and especially with aluminum hulls - the copper creates a galvanic couple that accelerates corrosion rather than preventing it. If you're applying bottom paint to a trailered boat with aluminum components, use a copper-free formula on any surface within a foot of the anode mounting pad. Tape off the anode area entirely; paint that migrates onto the anode face will reduce its effective surface area and undercut its protection.

One practical tool for verifying that your cathodic protection system is working: a silver/silver chloride reference electrode and a digital multimeter. A protected hull metal in saltwater should read at least -200mV more negative than its unprotected natural potential. The ABYC E-2 standard uses this 200mV threshold as the minimum protection criterion. A reading that's barely shifted from baseline after you've installed fresh anodes suggests poor electrical continuity - trace the bonding wire connections before assuming the anode is defective.

Frequently asked questions

Can I mix anode materials on the same boat?

Mixing zinc and aluminum anodes on the same bonded system creates a small galvanic couple between the anodes themselves, though in practice the effect is minor. The bigger concern is consistency: use the material matched to your water type throughout. If you're switching from zinc to magnesium for freshwater use, replace all external anodes at the same time, not just some of them. Internal pencil anodes should follow the same water-type rule - magnesium pencil anodes exist for freshwater heat exchangers and are the correct choice in freshwater. The exception is when your engine manufacturer explicitly specifies a particular alloy in its parts catalog; some manufacturers list only zinc pencil anodes by part number even in current catalogs, and in that case follow the manufacturer spec while asking your dealer about an approved magnesium equivalent. Leaving zinc pencil anodes in a freshwater engine while switching all external anodes to magnesium defeats part of the purpose - the internal cooling passages are not protected.

What if my boat goes from saltwater to freshwater and back?

Aluminum is your answer. It is the only material that remains active across the full conductivity range from fresh to salt without passivating at either extreme. A boat that spends two months on a freshwater lake and the rest of the season in salt should run aluminum anodes year-round. Replace them on the 50% consumption schedule or annually, whichever comes first.

Will an anode that looks new protect my boat?

In saltwater - a nearly new-looking anode may still be active, or it may mean your system is not properly bonded and corrosion is attacking the hull metal instead. In freshwater - a zinc anode that looks unchanged after a season has almost certainly passivated and is providing zero protection. The visual inspection for zinc in freshwater is inverted: unchanged appearance is bad, not good.

How long do anodes last on a boat in a marina on shore power?

Highly variable, and the shore-power question is the key factor. Stray current from neighboring boats or marina wiring can consume anodes many times faster than galvanic corrosion alone. If your anodes are disappearing in weeks rather than months, have a marine electrician check for stray current before replacing more anodes - the root cause is electrical, not anode sizing.
