How to change lower unit gear oil (and what milky oil is telling you)

Open the drain bottle and set it under the lower unit, and if what pours out looks like chocolate milk, stop everything. That is not a cosmetic quirk or old grease; it is a seal failure. Water has breached the gearcase, mixed with the oil, and the emulsion you are looking at has likely been circulating through your bearings and gears. Refilling and running the engine at that point will accelerate bearing damage within hours. The oil change itself just handed you the most important diagnostic the lower unit can give.

If the oil runs out dark amber, slightly black, or just darker than when you put it in, you are fine - proceed with the change. This guide walks through the full drain-and-fill procedure for an outboard lower unit, explains the color chart from healthy to critical, and is honest about the stop-line: milky oil is a shop job, not a top-off job.

What the drained oil is actually telling you

Pour the old oil into a clear jar or a white drain bottle where you can see it properly. Hold it up to the light. The color tells you the maintenance story at a glance.

The light haze on a season-opening change is the one gray area. Gear oil can absorb trace condensation over a storage period without full seal failure. Pour it into a jar, let it sit five minutes, and check whether water droplets settle to the bottom. A few droplets of separated water with otherwise dark, consistent oil: change the oil and watch for it next time. A uniform, opaque milky emulsion that does not separate: that is the stop-line.

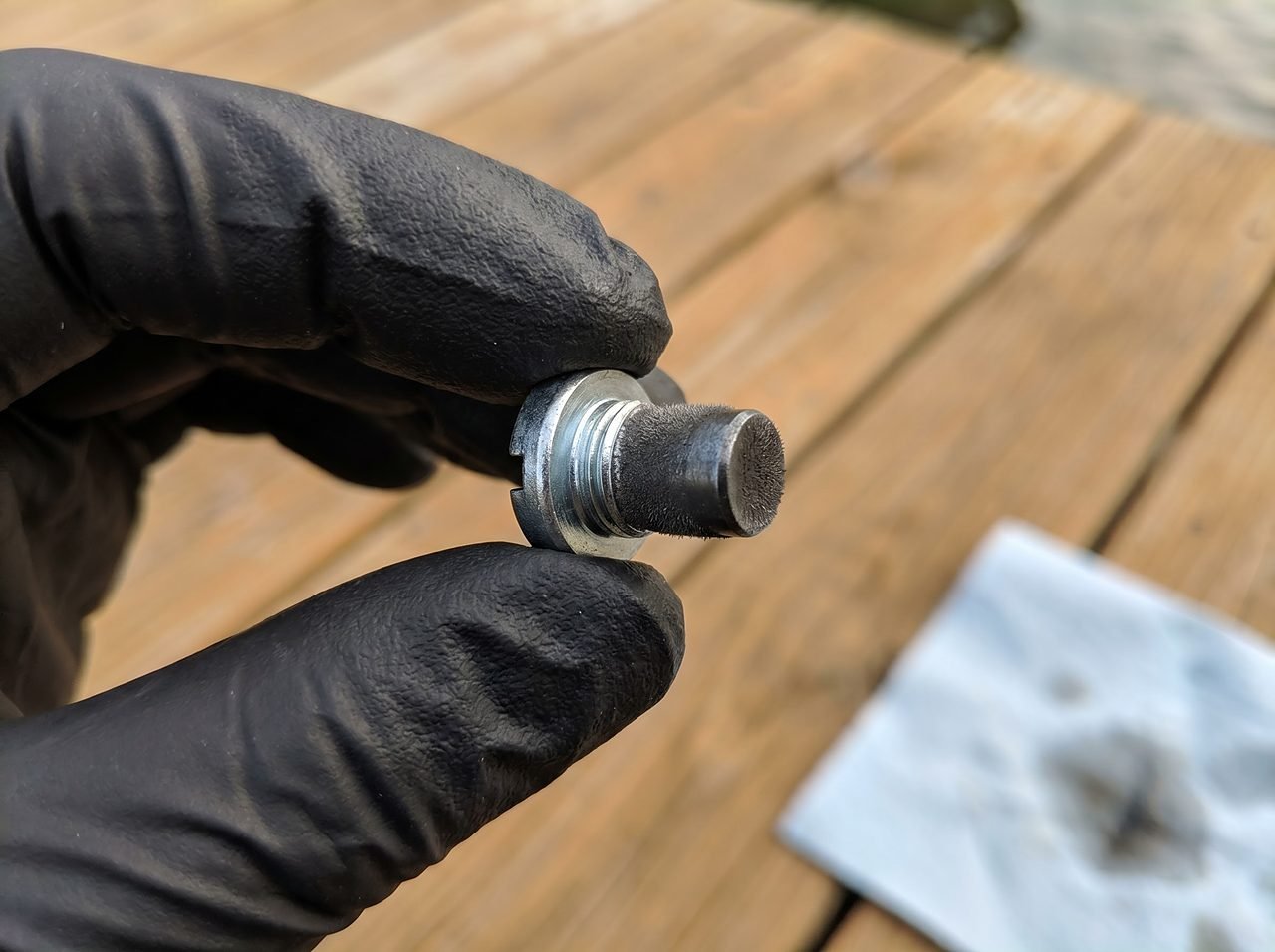

Check the magnetic tip of the drain plug while you are there. Fine metallic powder clinging to the magnet is normal - it is the byproduct of gear mesh. Larger shavings, clumps, or anything that looks like metal flake means abnormal wear inside the gearcase and warrants a shop inspection even if the oil color is fine.

Why milky oil means haul out, not top off

Water and gear oil do not coexist peacefully inside a gearcase. Water-contaminated gear oil loses its lubrication properties almost immediately, and bearing damage can accumulate within hours of running. The emulsion you see after a seal failure has been coating your gears and bearings with a mixture that cannot form an adequate oil film under load.

The seals that failed are the prop shaft lip seals - the dual-seal arrangement that keeps gear oil in and keeps lake or ocean water out when the shaft is spinning under pressure. Once a seal is cut or worn through, both functions fail: oil weeps out at the dock and water drives in while underway. Fishing line wrapped around the prop shaft is one of the most common ways this happens - the line works under the lip seal as the shaft turns, gradually slicing through the rubber. It is worth removing the prop at every oil change and checking the shaft forward of the prop nut for any wrapped line.

A shop confirming a seal failure will pressure-test the gearcase before and after the repair. The procedure pumps the unit to 5-6 PSI (the ceiling is 10 PSI - exceeding that can distort the seals themselves) and watches the gauge. Any pressure drop indicates a leak. The vacuum test pulls the case to 5-10 inHg and checks whether the reading holds, which catches inward leaks that pressure-testing can miss. If you find milky oil and want to understand the scope before calling a shop, this test tells you whether you have a single-seal event or a gearcase that has been running wet long enough to damage the bearings.

Running a water-contaminated lower unit through a day of fishing to "see if it gets worse" is how a $200 seal job becomes a $1,200 gearcase replacement. The engine maintenance overview covers this cost reality across all drivetrain service items if you want the full picture.

Step-by-step: draining and refilling the lower unit

For any outboard lower unit - regardless of manufacturer - the procedure is the same. Gather what you need before you start:

• Marine-grade gear lube (SAE 80W-90 or SAE 90; check your owner's manual for the exact spec - Yamaha and most Mercury models call for GL-4, not GL-5, because GL-5 formulations can attack bronze components)
• A gear lube pump with hose fitting
• New sealing washers for both drain and vent screws (single-use; do not reinstall old ones)
• A flathead screwdriver sized for your plugs (commonly 10mm)
• A drain pan or clear drain bottle
• Shop rags

Drain the old oil

Trim the outboard all the way down. This is not optional - the engine must hang vertically so the gearcase drains completely. Position your drain pan under the lower unit.

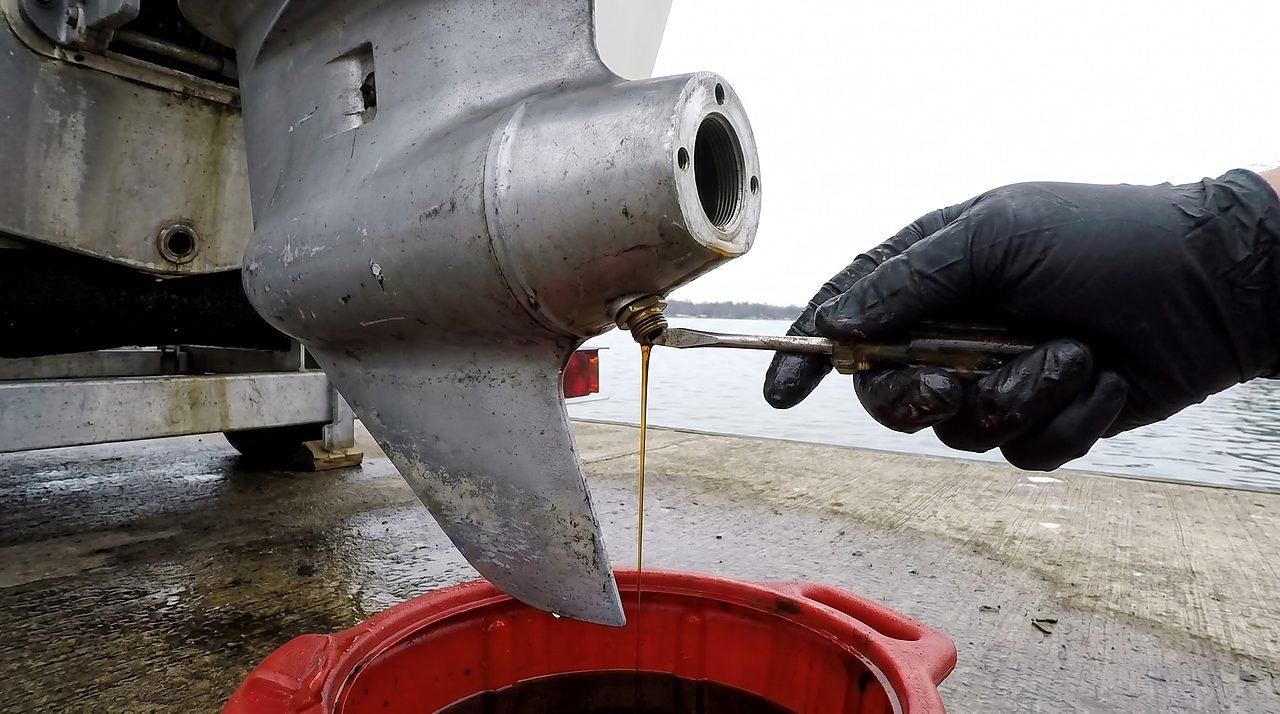

Remove the lower drain screw first. Then remove the upper vent screw. The order matters: removing the upper vent screw second breaks the vacuum seal and admits air, so the oil drains cleanly instead of fighting a pressure differential. Pull the drain plug and you will get a slow dribble; pull the vent screw and you get a clean, fast drain. Do it backwards and you get a partial drain and the false impression the unit is empty when it is not.

Let the unit drain completely - at least three to five minutes. While you wait, inspect the plug and the oil as described in the diagnostic section above.

Refill from the bottom up

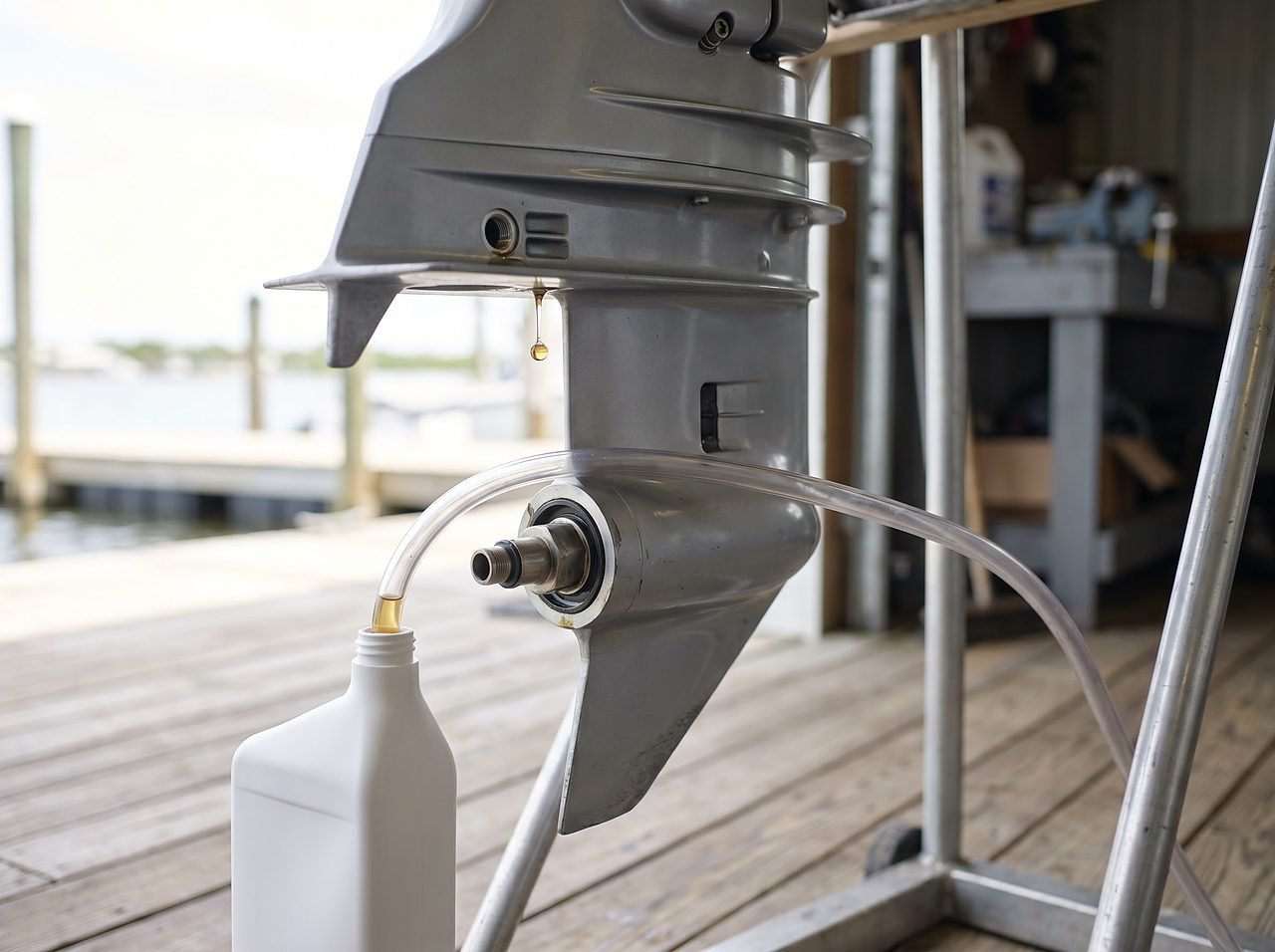

Thread the pump hose into the lower drain hole. Pump fresh gear lube upward until oil begins to flow out of the upper vent hole - steady flow, not just a drip. Stop pumping and wait two to three minutes for air bubbles to work out of the passages. Resume pumping until clean, bubble-free oil flows consistently from the vent hole. That is full.

Install the upper vent screw with its new washer first, while the pump is still connected and the lower hole is still under slight pressure. This keeps oil at the very top of the gearcase instead of letting an air pocket form as you pull the hose. Quickly unthread the pump fitting and install the lower drain screw with its new washer. Tighten both to your manufacturer's torque specification - the value varies by model and engine family, so check your owner's manual for the exact figure. When in doubt, snug-plus-a-quarter-turn with a screwdriver is the working rule for these small plugs; overtightening strips the aluminum boss or cracks the washer.

Wipe the lower unit clean, run the engine briefly in a test tank or with a flushing muffs setup, and check both plugs for seepage. A small amount of oil weeping immediately after the change, before the new sealing washers seat, is not unusual. Continued seepage after 10 minutes of running warrants re-torquing or seal replacement.

How often to do this: annually or every 100 hours, whichever comes first - the standard across Mercury, Yamaha, Honda, and Suzuki service schedules. An initial change after the first 20 hours on a new engine is also called for on most models, and it is worth doing: break-in wear particles accumulate in the gear lube faster than at any other point in an engine's life. The full seasonal maintenance schedule lists where this falls relative to other service intervals.

When the oil change is part of winterizing

Changing the lower unit oil before winter storage - not after - is the right sequence. The reasoning is straightforward: used oil carries water and acidic byproducts from the season's operation. Letting that mixture sit on the gearcase internals for four to six months accelerates corrosion on the shafts, gears, and bearings. Fresh oil going in before the boat is covered gives the internals a protective coating for the storage period.

This is also the best time of year to catch a failing seal before it becomes a spring problem. If the oil comes out milky at the end of the season, you have the winter to arrange the repair without losing time on the water. If you skip the fall change and only check the oil in April, you may be looking at a repair during prime season. The full winterizing procedure for outboards, including fogging and fuel system prep, is covered in the outboard winterizing guide.

One more point on the seasonal sequence: if you had milky oil in the fall and you had the seals replaced over winter, change the gear oil again in spring before launching - not because there is necessarily anything wrong with what was put in after the seal job, but to verify the repair held and to start the season with documented-clean oil in the gearcase.

Connecting the lower unit to the bigger drivetrain picture

The lower unit does not operate in isolation. The water pump impeller sits in the housing just above the gearcase, driven off the same driveshaft. An impeller failure that goes undetected will overheat the engine; the tell-tale stream from the engine will run weak or stop. The no-water-from-tell-tale diagnostic walks through that check, which takes two minutes at every launch.

If the outboard also fails to start after a storage period, water contamination of the lower unit is rarely the cause - that symptom lives in the ignition, fuel, or compression systems. The engine no-start guide works through that sequence systematically. What connects the two is that both start with a visual check: the lower unit oil color on one end, and the tell-tale stream on the other. Run both checks at every seasonal transition and you catch the two highest-consequence lower-unit failures before they strand you.
