How to bottom paint a boat: the complete DIY guide

Pick the wrong paint type or skip one prep step, and a season's worth of antifouling fails before the boat ever moves. Getting bottom painting right starts with two decisions that happen before you open a single can: which paint category fits how you use the boat, and whether the hull is ready to accept it. Everything else follows from those two calls.

Most fiberglass keelboats and cruising powerboats do well with an ablative (copolymer) antifouling. Trailered boats, raceboats, and hulls that stay in the water for months at a time without moving often need something different. The sections below work through each decision in order, including the timing trap built into modified epoxy hard paints that catches owners who paint in the fall and launch in spring.

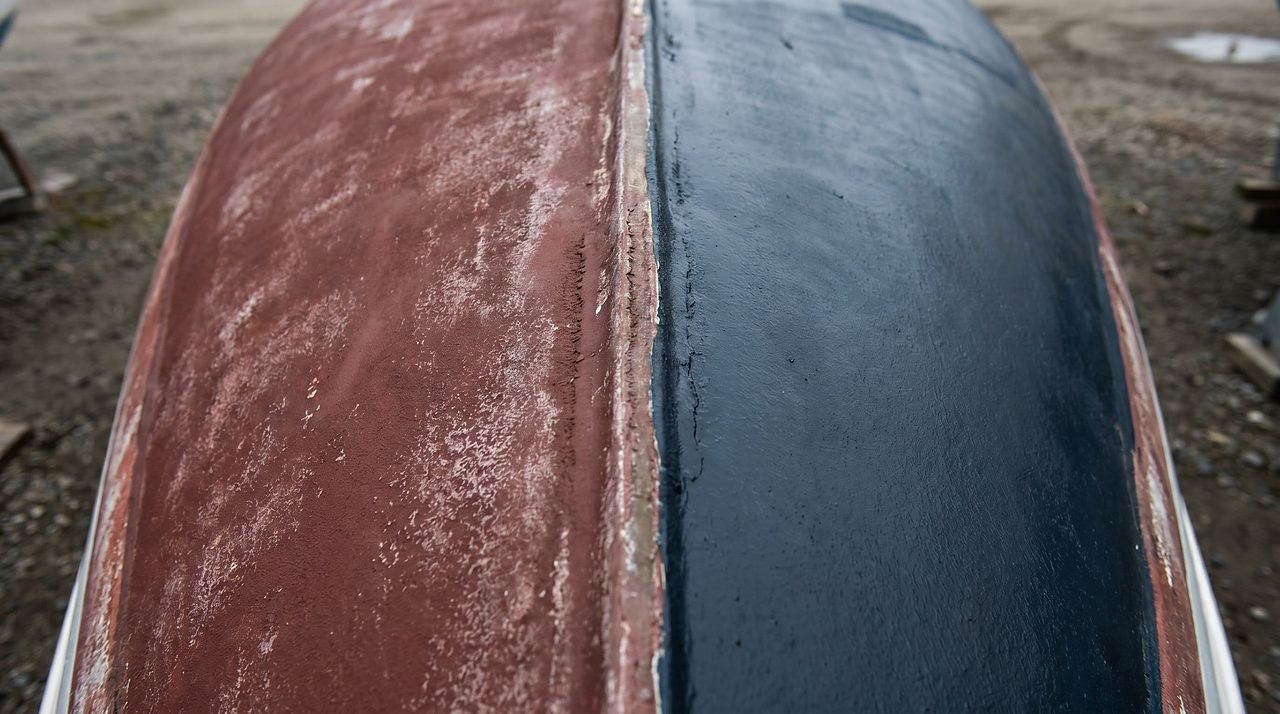

Ablative vs. hard antifouling: which type does your boat need

Ablative (also called copolymer or self-polishing) paint erodes slowly as water moves across the hull, continuously exposing fresh biocide. Think of it as a slow-dissolving bar of soap. Because the surface is always renewing, ablative paints work well for boats that move regularly, and they do not build up season after season. A light scuff in spring reactivates the surface; no full strip is needed for years.

Hard (modified epoxy) antifouling keeps its film intact while biocide leaches out through the paint matrix. The film does not go anywhere, so it burnishes to a smoother surface than ablative paint, which matters to racers. Hard paint also holds up to trailering. As TotalBoat's application guide states, "a hard paint is a better choice than an ablative, which can wear off from trailering" - abrasion from bunks and rollers strips soft ablative coats quickly.

The trade-off with hard paint is a timing window. Because the film is fixed, it relies on water contact to push biocide to the surface. Out of the water, Interlux's technical guidance explains, "the paint film will oxidize and slow the release of the biocides to the point where there may not be enough biocide coming out of the paint film to maintain fouling protection." That is why modified epoxy hard paints carry a 60-day maximum dry window: the manufacturers (Pettit's Trinidad, Copper Bronze, and Unepoxy data sheets all use the same wording) state the boat may be launched up to 60 days after painting without sacrificing antifouling performance. Paint applied in October for a May launch blows past that window by months, leaving you with a season's worth of antifouling that never activates correctly. Always confirm the figure on your specific product label, but 60 days is the number you plan around. Ablative and SPC copolymer paints carry no maximum dry window and can be painted in fall for any spring launch date.

Copper content and copper-free options

Copper biocide is the industry standard for fiberglass and wood hulls. Paints are sold across a range of copper loadings: lighter-copper formulations for mild, cooler water and high-copper products built for foul-heavy warm-water anchorages. The copper percentage is printed on the can and in the data sheet, so compare that number directly rather than relying on a rule of thumb. Higher copper suits waters with heavy biological load such as tropical estuaries, warm Gulf Coast anchorages, and the Florida Keys; if you keep the boat in cold northern water that fouls slowly, a lower-copper paint is usually enough and costs less.

Copper-free paints use organic biocides instead. TotalBoat Krypton, for example, combines Zinc Pyrithione (4.80%) and Tralopyril (6.00%) in place of copper metal. Sea Hawk's Smart Solution uses Econea (Tralopyril) as its sole biocide and is marketed as fully metal-free. These formulations work reliably against shell fouling and are required anywhere the local harbor authority restricts copper discharge - a growing list in California and Washington marinas.

On an aluminum hull or an aluminum outdrive leg, copper-free is not optional. Copper and aluminum form a galvanic cell in seawater, and as TotalBoat puts it plainly, "copper will react with and destroy your aluminum hull." No amount of zincs compensates for direct contact between copper paint and aluminum substrate.

Surface preparation: the step most DIY jobs get wrong

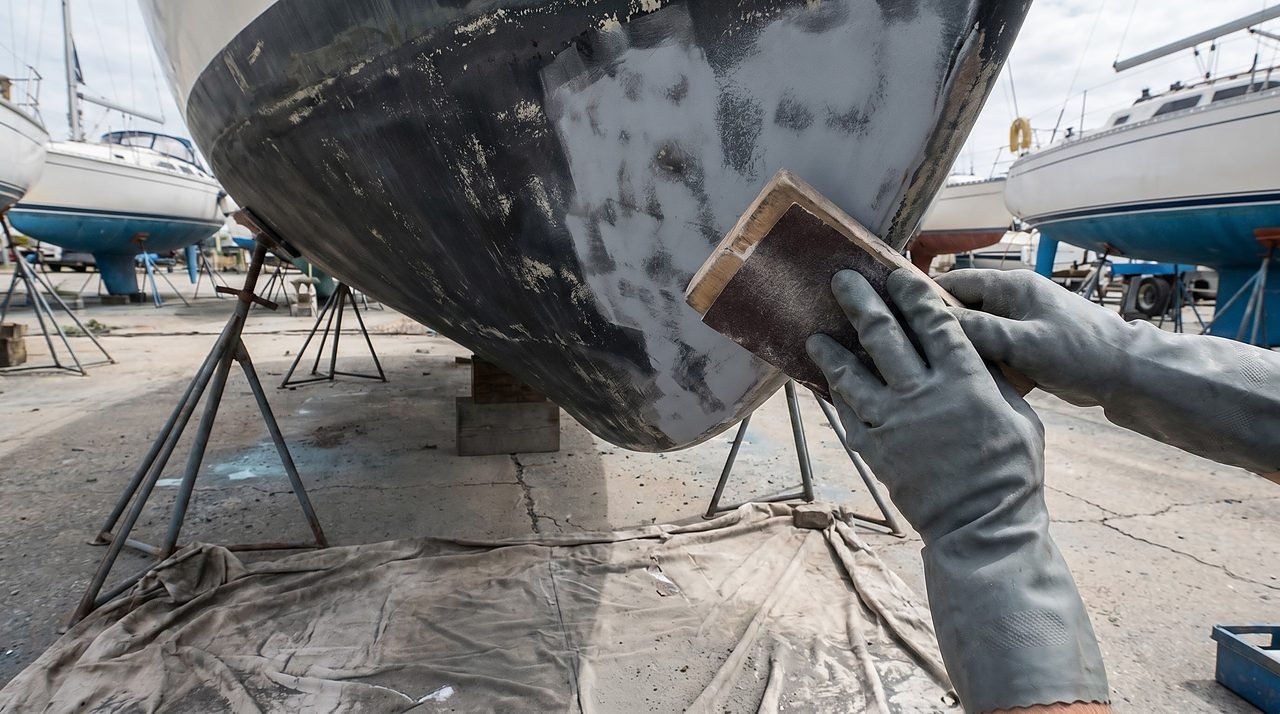

New or bare fiberglass needs 80-grit sanding to a flat, matte finish before any antifouling goes on. Interlux's fiberglass painting guide calls for sanding "the entire surface well with 80 grade paper until a flat matte finish is obtained" before removing sanding residue and applying antifouling. Many production antifoulings are designed to go straight onto properly sanded bare gelcoat, so a barrier coat is not a hard requirement for the paint to stick. What a barrier coat does buy you is osmosis protection: a couple of coats of epoxy barrier coat seals the laminate against the slow water intrusion that causes blistering on older hulls. Treat it as a worthwhile upgrade on a first bottom job rather than a mandatory step, and weigh the extra day of work against how blister-prone your hull and your water are. If gelcoat blistering is already present, that repair needs to happen before any paint goes on; the full osmotic blister repair process explains how to cut, dry, and fill correctly.

Before you make any dust, protect yourself. Old antifouling is loaded with copper and other biocides, and the sanding dust is genuinely hazardous to breathe; older bottoms can also hide layers that contain heavy metals. Wear a properly fitted respirator with P100 or organic-vapor/HEPA cartridges (not a paper dust mask), a Tyvek suit, sealed goggles, and gloves, and do not eat, drink, or smoke in the work area. Do not dry-sand old copper paint: wet-sand or use a sander with vacuum dust extraction to keep the dust down, catch chips on plastic sheeting, and bag the residue. An occupational-exposure study on antifouling work and yard-safety guidance from independent marine testing both flag respiratory protection and dust control as the non-negotiable parts of this job, not optional extras.

Existing antifouling in good shape needs 80-grit to open the surface, followed by a solvent wipe with the manufacturer's recommended wash. Pettit's technical bulletin specifies "80-grit production paper to a dull, frosty finish" before recoating. If the old paint is peeling, flaking, or built up to more than four or five coats, strip before recoating - paint over a failing foundation fails too. The dedicated stripping guide covers chemical and mechanical methods.

Application temperature matters more than most owners realize. Interlux specifies a minimum of 50°F (10°C) and a maximum of 85°F (29°C) for surface and air temperature. Below 50°F the solvents do not flash off correctly and adhesion suffers. Above 85°F the paint surface-skins before the solvents fully escape. Paint during the middle of the day in spring and early fall in most North American climates, and stop if rain is forecast within four hours.

Application: coats, timing, and what goes where

Two coats is the minimum for any antifouling system. A third coat at the waterline and around the keel stub, skeg, and propeller aperture is worth the extra material - these are the first areas to show fouling because they see the most nutrient-rich water. Apply the first coat in one direction and the second at 90 degrees to the first; crossing the coats catches any holidays (thin spots) left by roller edges.

Roller choice matters more than nap length hair-splitting. Use a short-nap roller and, critically, make sure it is solvent-resistant - bottom paint solvents dissolve ordinary paint-store foam and leave crumbs in the finish, so buy a cover rated for antifouling or a dense mohair/woven cover. A thinner nap lays down a smoother film on hard paint; a slightly heavier nap holds more paint on a textured or chined hull. Follow the nap the can recommends if it specifies one. Brush the tight spots (keel/hull joint, rudder leading edge, shaft log) before rolling the flat panels so the brush coat is covered by the roller coat.

Timing between coats: TotalBoat Krypton (copper-free ablative) calls for 2 hours between coats at 70°F; the minimum before launch is 4 hours at 70°F and 8 hours at 50°F. Check the specific product data sheet - solvent-based hard paints often have longer recoat windows than water-based ablatives.

The waterline tape line should be placed before the first coat. The reliable way to set it is to mark the boat's real floating waterline at normal load before haul-out (a strip of tape at the water surface, or note where the existing boot stripe sits when the boat floats trimmed the way you actually use it), then transfer that line to the blocked hull. With the boat level on the stands, measure down a fixed distance from a reference such as the rubrail or deck edge at several points and connect the marks with a flexible batten to strike a fair line. Add a little height above the measured float line so the boot stripe is never awash when the boat is loaded; do not paint below an idealized "designed" line and leave wet hull unprotected. Remove the tape while the final coat is still slightly tacky; peeling dried bottom paint tape pulls the paint edge.

Propellers, shafts, and trim tabs need antifouling too. Use a product rated for underwater metals - standard copper antifouling bonds poorly to bare bronze or stainless and can accelerate corrosion on aluminum props. Prop-specific copper-free formulations (TotalBoat Outdrive AF, Sea Hawk's prop-rated products) solve both adhesion and galvanic concerns in one step.

While the boat is hauled and the running gear is exposed is the natural time to handle the drivetrain jobs that are awkward in the water - impeller replacement and lower-unit oil among them; the boat engine maintenance guide covers that sequence.

What it actually costs: DIY vs. yard

The gap between doing it yourself and paying a yard is large, and it comes down to labor. A full-service yard bottom job bundles a lot of billable steps - haul, block, pressure wash, sand, mask, paint, and splash - and most yards price the labor by the foot, so the bill climbs steeply with boat length. Rates vary so much by region, yard, and how much prep your bottom needs that any single dollar figure here would be misleading; a small coastal cruiser can run a few hundred dollars at a do-it-yourself yard and several times that at a full-service yard. Get a written quote from your yard for your exact boat before you decide. What does not change is the split: the paint and supplies are a minority of a professional job, and the labor is the rest.

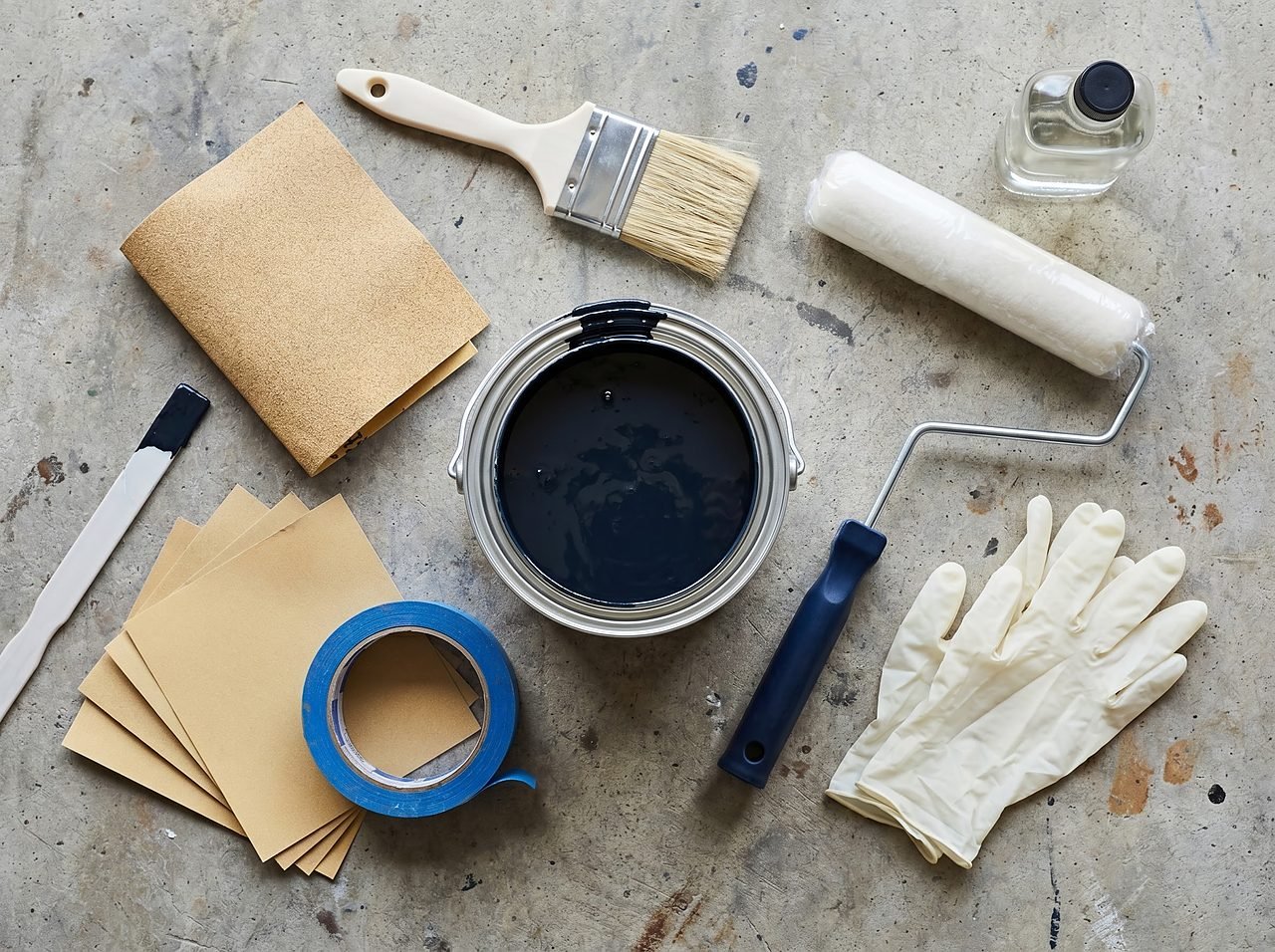

Doing it yourself drops the cost to mostly materials (paint, sandpaper, tape, solvent, solvent-resistant rollers, brushes, and your safety gear). Paint quality drives most of that bill: entry-level ablative is the cheapest line item, while high-copper premium products cost several times as much per gallon, so buying the right quantity matters. Use the estimator below rather than guessing.

How much paint do you actually need

Interlux gives a simple formula for underwater hull area: length overall times beam times 0.85 equals the approximate square footage below the waterline (LOA x B x 0.85 = area). Antifouling covers roughly 300 to 400 square feet per gallon per coat when rolled, so call it 350 to be safe. Then: area divided by 350, times the number of coats, equals gallons. For a 26-footer with a 9-foot beam that is about 26 x 9 x 0.85 = 199 sq ft, so two coats is 199 / 350 x 2 = about 1.1 gallons, plus a little extra for the waterline third coat and waste. Round up to the next can; you cannot make more in the middle of a coat.

Add a third coat at the waterline, keel, and running gear into your total, and check your paint's own coverage figure - thicker high-build products and rougher hulls cover less per gallon than the 350 used here.

One caveat: some yards do not allow owner-applied antifouling because sanding dust and paint chips may require disposal as hazardous waste, and applying antifouling is classified as pesticide application in some states, which requires a commercial license. Confirm with your yard before planning a DIY paint day.

Recoating and seasonal maintenance

Ablative paint in good condition needs a light scuff with 220-grit before each season's new coats go on. You are not removing the old paint - you are breaking the surface oxidation layer so the new coat bonds. If the paint is still soft and the film is intact, two fresh coats over the scuffed surface is all that is needed.

Hard paint that has been out of water for less than 12 months needs only 220-grit scuffing before launch, per Interlux's relaunch guidance. Hard paint that has been stored more than 12 months needs 80-100 grit and a full recoat - the oxidized film has lost enough biocide that scuffing alone will not restore protection.

For shorter haul-out windows - a quick bottom inspection, replacing a zinc, or a yard stop between trips - check your paint manufacturer's re-immersion guidance. The re-immersion window and sanding requirements after a short haul vary by product; many manufacturers specify this separately from the longer storage protocols above.

The dedicated guide on bottom paint timing rules covers the full seasonal calendar, including how to sequence fall haulout and spring commissioning without breaking the manufacturer windows for hard paints.
