How to inspect a used boat before you buy: a condition assessment guide for serious buyers

A three-hour inspection separates the manageable fixer-upper from the boat that will drain your bank account for years. Run it before you make an offer, not after. The sequence below - hull tap test, deck probe, transom flex check, bilge read, engine compression pull, and a specific gelcoat look that reveals osmotic blistering - gives you the same diagnostic picture a marine surveyor builds in the first half of a professional inspection. You will still want a surveyor for any purchase over roughly $10,000, and we'll cover exactly what a surveyor catches that you cannot. But knowing how to read the boat yourself means you won't pay $375 to $625 for a survey on a hull that a 20-minute walk-around would have disqualified.

Work from the water outward: hull first, then deck, then transom, then bilge and mechanical. Each zone tells you something the next one cannot, and seeing them in order lets you build a running cost picture as you go.

Hull: the tap test and osmotic blister check

The tap test is the most useful tool in a buyer's inspection kit and it costs nothing. Make a firm knuckle rap - or use a coin held loosely between two fingers - and move systematically across the hull bottom in overlapping rows. A solid laminate returns a clean, hard thunk. Delaminated fiberglass, where the layers have separated and trapped air or water between them, returns a distinctly duller, slightly hollow sound. Surveyors often describe it as the difference between tapping a kitchen countertop and tapping a cardboard box. Once you hear the contrast, you cannot miss it. Pay particular attention to the area just above the waterline on each side, below the rub rail, and along any previous repair zones - these are the highest-frequency soft-spot locations on older fiberglass boats.

After the tap test, crouch low and look across the hull surface with a raking sidelight - early morning sun angled along the hull works well, or position yourself so a dock light skims across the bottom. The visual you are looking for is a pattern of small dome-shaped bumps, roughly 10 mm to 40 mm across, scattered across the hull below the waterline. Those are osmotic blisters. They form when water permeates the gelcoat and reacts with soluble compounds in the laminate; the resulting acidic fluid builds pressure and lifts the gelcoat away from the underlying fiberglass layer. Most osmotic blisters are repairable, but the repair is labor-intensive: the hull needs to come out of the water for an extended drying period (often months, not weeks, in humid climates), blister contents must be ground out, and the hull receives an epoxy barrier coat before any bottom paint goes back on. Budget $3,000 to $8,000 for a professional osmotic blister repair on a 25-foot hull, depending on severity. Our guide on osmotic blister repair covers the full process if you want the specifics before you walk away or negotiate.

A single blister or a handful of small ones is a negotiating point, not a deal-breaker. A hull covered in blisters from stem to stern - particularly large ones with brown fluid inside - means the laminate has been saturated for a long time. That is a stop-line. Do not buy that hull without a professional structural assessment that includes moisture meter readings below 15% on a standard scale.

Deck and cockpit: soft-spot probing

Walk every inch of the deck with your weight shifting deliberately. What you feel for is any give - a subtle spring or trampoline effect underfoot - that indicates the fiberglass skin has separated from the foam or balsa core beneath it. Cored deck construction is standard on most production fiberglass boats built after the mid-1970s because it dramatically reduces weight. Balsa core specifically is excellent when it stays dry, but once water finds its way in through a fastener hole, a cracked fitting base, or a damaged non-skid section, balsa rots fast. A core that has taken water for even one season starts losing its structural function.

Probe every deck fitting: cleats, stanchion bases, helm station edges, hatch frames, and any through-deck hardware. These are the entry points. Compress the area around each fitting with moderate hand pressure and feel whether the deck surface flexes independently of the structure below it. Probe the cockpit sole and the area directly around the bilge hatch particularly hard - these zones collect water and suffer disproportionate core damage. If you find soft spots, note the location and approximate size. A small isolated soft patch around one cleat base is a localized repair; a soft cockpit sole from transom to helm is a major rebuild. Rotten floor repair on a boat is covered in more detail in our rotten boat floor repair guide, which includes realistic cost ranges by area size.

On the interior, lift floor hatches and press on the interior surfaces of the hull sides. Fiberglass that flexes noticeably when you push against it with both palms indicates thin or damaged laminate.

Transom: the flex test

The transom carries the entire thrust and weight of the engine. On a sterndrive or outboard boat, it is also the point where water entry does the most catastrophic structural damage, because the wood core - almost all production transoms through the 1990s and many today use plywood or foam - can rot completely from the inside while the gelcoat exterior still looks clean.

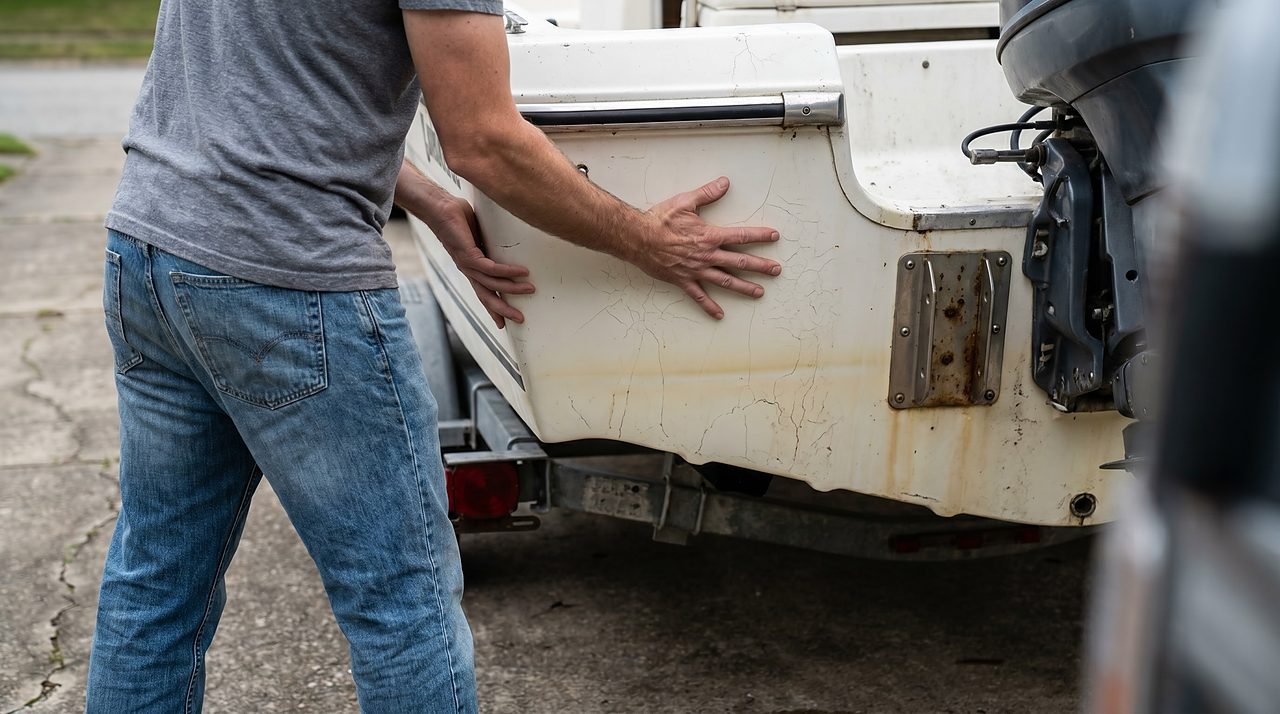

Stand at the stern. Place both hands flat on the transom surface and push with moderate force - about as hard as you would push to move a piece of furniture. A sound transom is rigid. It does not move. A transom with rotted core compresses noticeably under hand pressure, and in severe cases you can actually feel it flex when you rock the engine or outdrive by hand. On a sterndrive boat, grab the outdrive unit itself and push it firmly side to side and then up and down. Any movement beyond the designed mechanical pivot of the trim system indicates the transom or the stringer it is bolted through has deteriorated. If you are looking at a boat with significant transom flex, read our transom rot repair guide before negotiating - full transom replacement on a fiberglass boat typically runs $2,000 to $6,000 for a professional repair.

On older outboard boats, look at the mounting surface where the clamps or bolts attach the engine. Compression cracks radiating from the mounting holes, or visible separation between the outer gelcoat skin and the core, are clear indicators of water intrusion. Tap the transom with a coin using the same technique as the hull check - hollow returns here are more serious than almost anywhere else on the boat.

Sterndrive boats: bellows inspection is a hard stop-line. On any sterndrive (MerCruiser, OMC, Volvo Penta), rubber accordion bellows seal the driveshaft and hydraulic trim hose passages where they pass through the transom. These bellows crack, harden, and tear with age and UV exposure - and a failed bellows is an open water pathway directly into the hull. A boat with deteriorated bellows can take on water fast enough to sink underway. To inspect them, the outdrive must be trimmed fully down to expose the bellows at the transom plate; the rubber should be supple and crack-free with no tears or holes. This is worth doing or delegating to a mechanic before any sea trial on a sterndrive boat. If bellows are deteriorated, do not operate the boat until they are replaced - replacement typically costs $300 to $700 for parts and labor, and it is a non-negotiable safety item, not a negotiating point. Flag it to your surveyor as a named inspection item.

Bilge: reading stains, smell, and residue

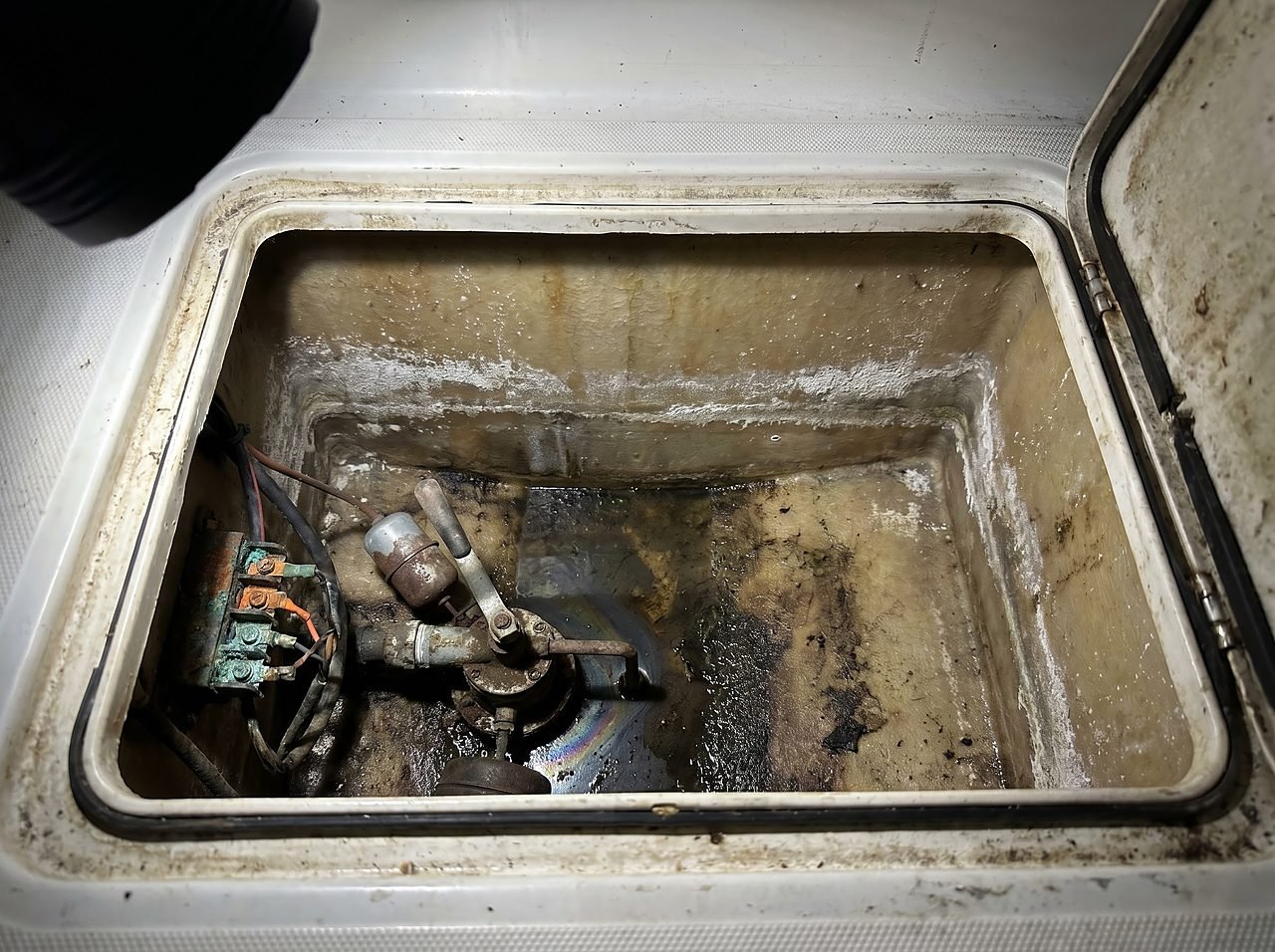

Lift the bilge hatch and look before you smell, because your nose acclimates quickly. The bilge is an honest record of the boat's history. Oily black residue covering the bilge floor tells you the engine has been losing oil, which points to either worn seals or a habit of overfilling. A rainbow sheen on standing water in the bilge is a fuel leak, and that is a fire hazard, full stop. Fuel smell without visible sheen means the same thing - a fuel line, fitting, or tank seam is weeping somewhere. Do not buy a boat with fuel contamination in the bilge until you have located and assessed the source; the repair cost ranges from a $20 hose clamp to a full fuel-tank replacement.

White efflorescence (chalky mineral deposits) on the bilge walls means water has been sitting there repeatedly and evaporating. That is common and manageable. Rust stains tracking down the hull sides inside the bilge point to corroding fasteners - aluminum boats are particularly vulnerable to galvanic corrosion here. Heavy rust staining inside a steel hull section is a structural concern.

While you have the hatch open, run the bilge blower (if the boat has one) and look for any wiring that shows corroded terminals, chafed insulation, or heat-discolored connectors. Marine electrical failures are a leading cause of on-water fires, and a boat with obviously neglected bilge wiring is signaling broader electrical maintenance problems.

Engine: compression test and gear-oil color

Two checks give you most of what you need to assess engine condition on a used boat before committing to a full mechanical survey.

The first is a compression test. Pull every spark plug and use a compression gauge to measure each cylinder. On most gasoline marine engines in reasonable condition, you should see readings somewhere in the range of 120 to 180 PSI per cylinder - the specific range varies significantly by engine make and displacement, so always check the service manual for the exact model you are looking at. What matters more than the absolute number is the consistency across cylinders. Mercury Marine and Yamaha Marine service documentation both use a two-tier standard: more than 10 percent variance on any one cylinder is a flag requiring investigation; more than 15 percent variance across the set is a stop-line indicating significant uneven wear, damaged rings, or valve problems. A single low cylinder can point to a burnt valve; multiple low cylinders suggest ring wear or overheating history. Either finding belongs in your negotiating notes.

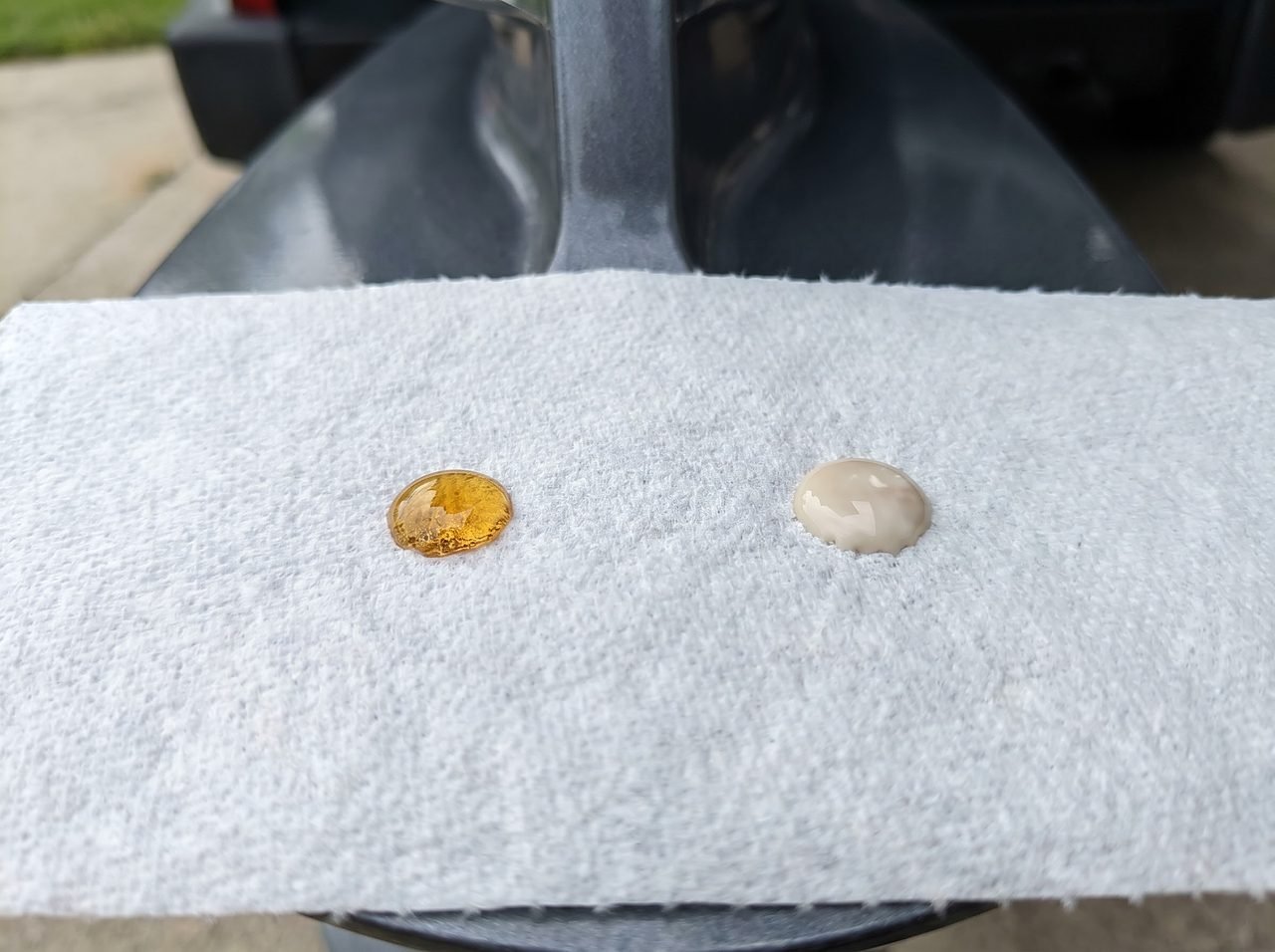

The second check is the lower-unit gear oil. Remove the lower drain plug (located at the bottom rear of the lower unit) and let a small amount of oil drain into a clean white rag or paper plate. Sound gear oil is translucent amber to honey-colored. Gray metallic oil means metal particles are circulating - gear or bearing wear. The critical finding is milky-white or "chocolate milk" colored oil. Milky gear oil means water has entered the gearcase through a failed seal. Do not refill and run that engine. A failed lower-unit seal requires professional diagnosis and repair - often $400 to $900 including parts - and running a water-contaminated lower unit destroys the gears quickly. If you see milky oil, factor that repair cost into your offer immediately or verify the seller is disclosing it honestly.

Beyond compression and gear oil, check for corrosion on the engine block, look for cracked or dry-rotted fuel lines (squeeze a section - it should feel supple, not brittle), and pull the engine oil dipstick. Milky engine oil points to a head gasket failure, which is a major engine repair on any inboard or sterndrive. Also review the engine hour meter - below 300 hours on an older engine can mean the engine sat unused for long periods rather than running regularly, and a long-idle engine has its own set of problems (varnish in the carburetors, dried-out impeller blades, corroded fuel injectors).

While you are at the stern, look at the sacrificial anodes - the zinc or aluminum blocks bolted to the lower unit, trim tabs, and transom plate. Anodes that are more than 50% depleted or missing entirely tell you the boat has gone extended periods without basic corrosion protection, which accelerates pitting on underwater metal components. Anodes are cheap to replace ($10-$40 each), but their condition is a reliable indicator of overall maintenance discipline and whether the boat has been kept in salt or brackish water.

The buyer's condition assessment table

Use this during your walk-around to build a running picture of what you are actually buying and what it will cost to put right. The repair cost ranges reflect typical US labor and parts rates; your specific figures will vary by region and severity.

Is a marine survey worth the cost?

For any purchase over $10,000, the answer is yes without qualification. A certified marine surveyor - look for NAMS (National Association of Marine Surveyors) or SAMS (Society of Accredited Marine Surveyors) credentials - charges roughly $15 to $25 per foot of boat length, meaning a 25-foot boat runs $375 to $625 for the survey. Most lenders and insurance companies require a survey anyway on financed or insured purchases.

What a surveyor catches that you cannot comes down to two things: equipment and training. A surveyor arrives with a calibrated moisture meter (reads moisture content in fiberglass and core materials to specific percentages) and knows exactly where to probe. Visually sound deck surfaces can show 30-40% moisture content on a meter, which means the core has been saturated for months or years even though your foot-pressure test felt acceptable. They also carry a professional inspection mirror, a good UV light for seeing internal bilge damage, and the know-how to recognize engine cooling system corrosion patterns, outdrive bellows condition, and electrical code violations that a buyer without marine mechanical background will miss.

A surveyor also carries professional liability - if they miss something significant, you have recourse. More practically, a survey report gives you a written, documented list of deficiencies that functions as a negotiating document. Sellers who know the boat is priced assuming everything works will often discount more than the survey cost when handed a professional list of what actually needs doing. The survey pays for itself on a boat in anything less than excellent condition.

For boats under $5,000, a survey may cost more than you save. In that range, use your own inspection, bring a mechanically experienced friend, insist on a sea trial, and price accordingly for what you find.

Walk-away signals versus negotiating points

Knowing where the line is matters more than running a perfect inspection.

These are hard stop-lines - conditions where you should not buy the boat without a professional structural assessment that confirms the finding is repairable and prices out the repair in writing:

• Transom flex under hand pressure on any sterndrive or high-horsepower outboard boat
• Deteriorated bellows on a sterndrive - cracked, torn, or hardened rubber is a sinking hazard; the boat should not be operated until replaced ($300-$700 parts and labor)
• Milky engine oil on any inboard or sterndrive engine
• Dense osmotic blistering covering more than 30% of the hull below the waterline
• Active fuel smell or visible fuel sheen in the bilge - do not even sea-trial this boat until the leak source is identified
• Hollow tap-test returns across large areas of the hull bottom (more than a few square feet in any one section)
• A large soft cockpit sole - the repair is expensive enough that the boat needs to be priced accordingly or walked away from

These are legitimate negotiating points - real costs you can quantify and deduct from the asking price:

• Milky lower-unit gear oil (quotable repair: $400-$900)
• Isolated soft deck patches around fittings (quotable repair: $150-$400 per patch)
• Scattered small osmotic blisters, small coverage area (quotable repair: $1,500-$4,000 depending on severity)
• Spider cracks in the gelcoat (quotable: $200-$800 DIY materials; more if a pro does the work)
• Heavy oxidation (cosmetic; quotable at $300-$800 for a serious DIY restoration, which our boat restoration guide covers)
• Compression variance above 10% on one cylinder but below 15% across the set (flag reading, not a stop-line; get a mechanic's quote and use it in the offer)

The approach that works: run your inspection, list the findings with cost estimates, and come back with an offer that reflects what the boat will actually cost you to put in the water safely. A seller with a clean boat will hold price. A seller who knows what's hiding in the transom core will often meet you closer than you expect.

The gelcoat tells you how the boat was loved. The bilge tells you what the owner ignored. The transom tells you what the boat is actually worth.
