Aluminum boat restoration: what is different and what actually matters

Put copper-based antifouling paint on an aluminum hull and you will have a serious repair bill before the season ends. That single mistake is what separates aluminum restoration from everything you may already know about working on fiberglass. The corrosion mechanism is galvanic: copper and aluminum in saltwater form an electrochemical couple that eats the softer metal. Pitting can develop within one season, sometimes requiring weld repairs to the transom. Every product choice in an aluminum restoration flows from that reality. Get the chemistry right and the work is straightforward; ignore it and you spend money undoing the damage.

This guide covers the full aluminum-specific sequence: oxidation removal, brightening methods, the correct primer system, copper-free antifouling, anode selection by water type, and topside paint. There is also a section on pontoon tubes, which share the same chemistry but differ in scale and finish goals.

For broader context on what a full restoration project involves before you get into the aluminum-specific steps, the boat restoration overview lays out the decision framework for scoping the job.

Why aluminum corrodes differently from fiberglass

Aluminum forms a thin, stable oxide layer on its surface as soon as it contacts air. That layer is actually protective under normal conditions. The problems start when the oxide layer is disrupted by an incompatible chemical (the wrong acid, or a copper-based paint), by prolonged immersion in water that strips it unevenly, or by contact with a dissimilar metal in an electrolyte solution. Galvanic corrosion runs at a rate determined by the potential difference between the two metals and the conductivity of the water. Saltwater is a far better electrolyte than freshwater, so the damage is faster in salt - but freshwater brings its own problem for anodes, which is covered below.

The visible results on an aging aluminum hull are: chalky white oxidation on topsides and pontoon tubes, black or gray streaks from tannins and exhaust, and in worse cases, pitting from prolonged galvanic attack or poultice corrosion under debris. Each condition has a different fix.

Oxidation removal: chemical vs. mechanical, and which acids are safe

Chalky oxidation on bare aluminum responds well to chemical cleaners. The faster and less damaging route for large surfaces like pontoon tubes is an acid-based aluminum cleaner rather than mechanical grinding. Manufacturers of specialized aluminum restorers report that a chemical product can bring an average pontoon tube back to a mill finish in under an hour, while grinding and machine-buffing to a chrome finish takes 10 to 15 hours of labor. That tradeoff matters when you are looking at 20-plus feet of tube.

Two important rules govern the acid step:

• Use the right acid. Phosphoric acid and oxalic acid are safe for aluminum. Phosphoric acid converts the oxide layer to a water-soluble aluminum phosphate, which rinses away cleanly and leaves the metal mildly passivated. Muriatic acid (hydrochloric acid) destroys aluminum - it etches and dissolves the metal, turns the surface chalky white, and leaves it streaky. Do not use it. Most commercial aluminum boat cleaners, including Star brite Ultimate Aluminum Cleaner, use oxalic acid or phosphoric acid blends as their active chemistry; these work but require strict rinsing discipline.
• Never let the cleaner dry. Star brite's product directions state explicitly: do not allow cleaner to dry on any surface. Acid that dries concentrates and etches the surface unevenly. Apply in sections, scrub, and rinse thoroughly with fresh water immediately. On a hot day, work in shade and do smaller patches.

The foam you see when an acid cleaner contacts heavy oxidation is the chemical reaction working. That is normal. Scrub with a non-metallic pad (steel wool deposits iron particles that rust into the aluminum), rinse completely, and move to the next section.

Mechanical brightening: when it is worth the effort

Chemical cleaning restores a clean, matte mill finish. If you want a mirror or near-mirror finish on pontoon tubes - more common on newer pontoons than on working aluminum boats - mechanical polishing with a variable-speed buffer and progressively finer compounds is the path. Start around 600-grit wet-sand to remove deep oxidation and pitting, move to a medium-cut compound, finish with a fine aluminum polish. Use a foam cutting pad rather than a wool pad on aluminum to avoid heat buildup; overheating aluminum causes discoloration that is difficult to reverse.

For a working jon boat or aluminum skiff that will be painted, mechanical brightening is unnecessary. Clean the surface, let it dry, and move directly to the primer step. The primer needs mechanical adhesion (scratches), not a polish.

The primer system: the step most owners skip

Bare aluminum cannot simply be painted. Aluminum's oxide layer reforms within minutes of cleaning - TotalBoat's application guide for their epoxy barrier coat notes that oxide will form fast enough to compromise adhesion if you wait more than one hour after surface prep. That window is real and it changes how you plan the work day.

The standard aluminum primer system has two stages:

1. Etch wash or chemical conversion coat. Applied to clean, bright metal, this step chemically bonds to the surface and gives the subsequent primer something to grip. Some builders skip this on bare aluminum and go straight to an epoxy primer within the hour window; others use a phosphoric acid etch wash first. The Interlux system uses their Metal Primer Primocon, which is applied directly to blasted or sanded aluminum within 1 hour. Interlux's Technical Data Sheet specifies a minimum of 3 coats of Primocon for aluminum and light alloy surfaces, with no sanding between coats or between the last primer coat and the antifouling.

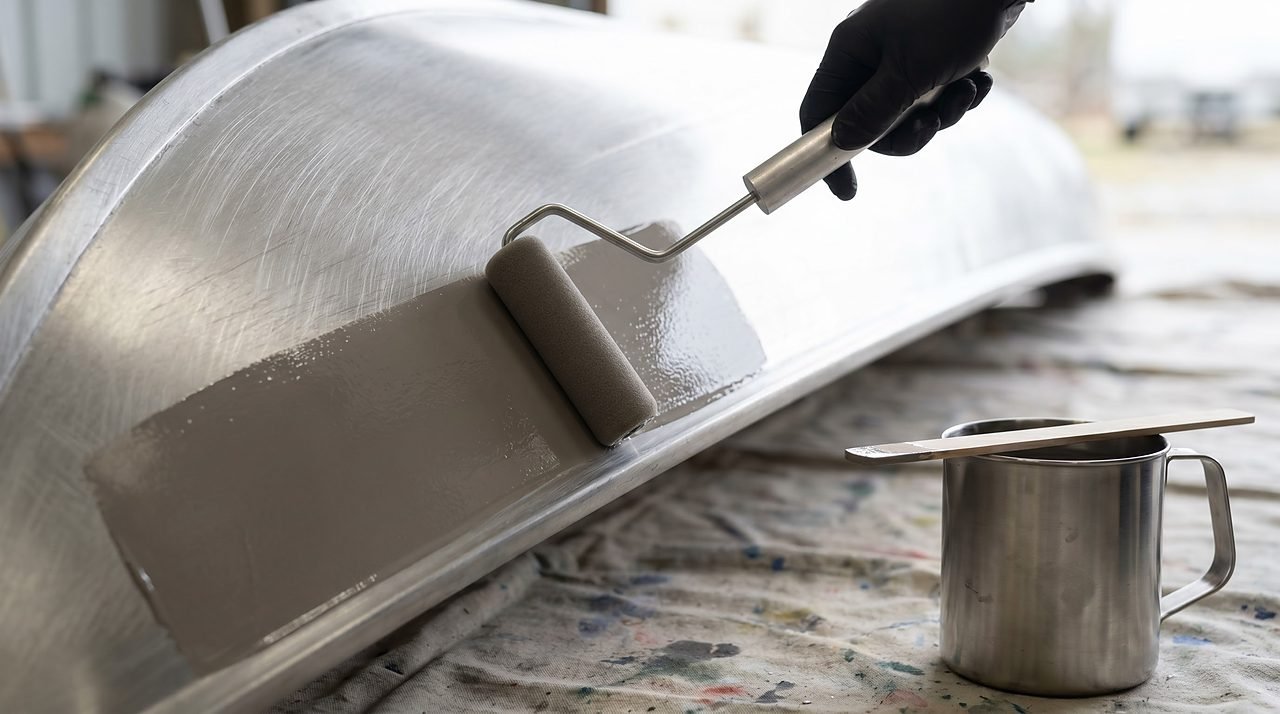

2. Epoxy barrier coat. This is the main build layer. TotalBoat's Aluminum Boat Barrier Coat mixes 3:1 (base to curing agent), gives 225 square feet per gallon at 7 mils wet (4 mils dry per coat), and requires a total of 8 to 12 mils dry film - which means 2 to 3 coats. TotalBoat's TDS confirms pot life of 5 hours at 70 F, dropping to approximately 2.5 hours at 90 F, so on hot days plan for faster working and mix smaller batches. For topsides, allow 48 hours cure before sanding with 320-grit and applying topside paint. Pettit's Aluma Protect (4400/4401) is a 2-part strontium chromate epoxy primer that follows the same principle - 2 coats over sandblasted aluminum, then overcoated with their Pettit Protect 4700/4701 before antifouling. Neither product tolerates being left uncoated; both chalk if exposed without a topcoat.

Sand between the primer layers only if the instructions specify it, and never sand between the last primer coat and the antifouling. The sanding schedule matters: follow the product TDS exactly, not a general rule.

Antifouling paint for aluminum: the copper rule

Standard antifouling paints contain cuprous oxide as the active biocide. Applied to aluminum, cuprous oxide triggers galvanic corrosion - aluminum is anodic relative to copper, so it becomes the sacrificial metal. Pitting starts fast and concentrates at welds, rivet lines, and any area where the paint film is thinnest. This is the single most expensive mistake in aluminum boat ownership.

The correct antifouling options for aluminum use biocides other than cuprous oxide. Two categories work:

A critical clarification: Interlux Trilux 33 contains cuprous thiocyanate, which is a reduced-copper compound, not the cuprous oxide found in standard antifoulings. Interlux designates it as safe for aluminum. Even so, Interlux is explicit that Trilux 33 must be applied over a proper primer, never directly to bare aluminum. The primer is not optional.

The bottom paint guide on this site covers the broader antifouling decision - hard vs. ablative, timing windows, application method - and applies to fiberglass as well. For aluminum-specific work, the bottom painting guide covers those variables with the additional filter of copper content. Hard modified-epoxy antifoulings often contain cuprous oxide at high concentrations and should be assumed incompatible with aluminum unless the label explicitly states otherwise.

Also note: ablative antifouling has no maximum dry window and can be painted in fall for any launch date. Hard modified-epoxy antifoulings have a 60-day maximum window before launching, which makes fall application for a spring launch a waste of product regardless of hull material.

Anode selection: the freshwater vs. saltwater split that most owners get wrong

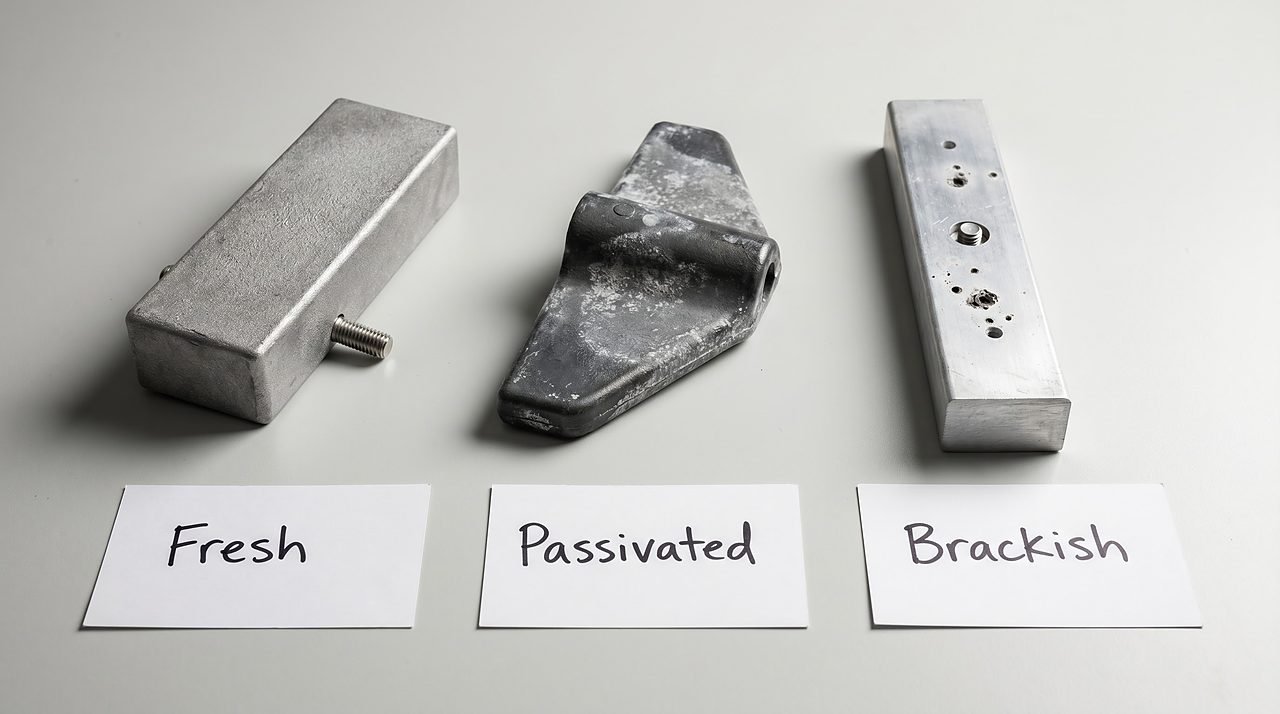

This is where more money is lost on aluminum boats than almost anywhere else. Zinc anodes do not work in freshwater. They form a hard, dense oxide coating on the surface that insulates them from the water, stopping the electrochemical reaction entirely. A zinc anode that looks nearly unchanged after a full freshwater season is not a sign the boat was well-protected; it is a sign the anode passivated and provided zero protection while the hull corroded.

Martyr Anodes, one of the major anode manufacturers, states it plainly in their freshwater guidance: "Traditional zinc or aluminum anodes are just not effective as they do not produce the voltage necessary to work properly" in fresh water, and their recommendation is unambiguous: "ONLY USE MAGNESIUM ANODES IN FRESH WATER." The NACE (National Association of Corrosion Engineers) standard cited on the same page notes that aluminum anodes face a passivation risk in fresh water when driving voltage drops below the threshold needed for complete cathodic protection.

The correct selection by water type:

One check worth doing at every haul-out: compare your current anode weight against what it weighed when new. An anode that consumed 30 to 50% of its mass is working. One that looks nearly pristine after a full season in freshwater is passivated and needs to be replaced with the correct metal immediately.

The broader maintenance rhythm for anodes sits within your annual haul-out checklist. The boat maintenance schedule guide includes anode inspection as a spring and fall item alongside impeller checks and lower-unit service.

Topside paint for aluminum: what sticks and what peels

Above the waterline, aluminum topsides need a paint system designed to handle the metal's expansion and contraction across temperature cycles. A paint that is too rigid will crack and delaminate as the hull flexes and expands.

The sequence is the same as below the waterline in its basics - clean metal, etch or conversion coat, epoxy primer - but the topcoat options differ. Two-part linear polyurethane (LPU) paints like Interlux Perfection or Pettit EZ-Poxy topcoats bond well over epoxy primers and have enough flexibility for aluminum. One-part polyurethane enamels are more forgiving to apply but sacrifice some durability. Single-stage automotive alkyd paints are sometimes used on aluminum work boats for cost reasons; they bond adequately over epoxy primer but chalk faster and need more frequent recoating.

For bare aluminum that has never been painted, start with a chemical etch wash, follow with 2 coats of the epoxy primer (within the 1-hour window after etch wash application), allow 48 hours cure, sand lightly with 320-grit, then apply 2 coats of your chosen topside paint. Do not use a gel primer or a standard fiberglass primer directly on aluminum - they are not formulated to handle the oxide layer or the thermal movement.

Riveted hulls vs. welded hulls: a paint system note

Jon boats and older aluminum skiffs are almost always riveted, not welded. That matters for painting because rivet lines are a flex point - the hull skin moves slightly relative to the rivet heads with every wave impact, and a paint system that is too rigid will crack at those joints within a season. Two-part LPU paints, which are very hard when cured, can micro-crack along rivet seams on flexible smaller hulls. A single-part polyurethane or a flexible alkyd over the epoxy primer is often a better match for a riveted flat-bottom boat than a rigid two-part system.

Rivet-line sealing is also worth attention before priming. Any rivet that has begun to work loose or weep will leak water under the paint film and cause blistering. Inspect each rivet before painting: a loose rivet will show a faint rust ring or dark stain on the aluminum skin around it. Seal working rivets with a polysulfide or aluminum-compatible polyurethane sealant before applying the primer coat. Painting over a leaking rivet traps the problem and guarantees a paint failure within a season.

Pontoon tube care: a specific sub-sequence

Pontoon tubes spend their lives in a more demanding environment than most aluminum boat hulls: partial immersion at variable waterlines, direct UV on the above-water sections, and algae growth on the wetted surfaces. The typical restoration problem is heavy oxidation on the topsides of the tubes and a mix of growth, staining, and minor pitting below the waterline.

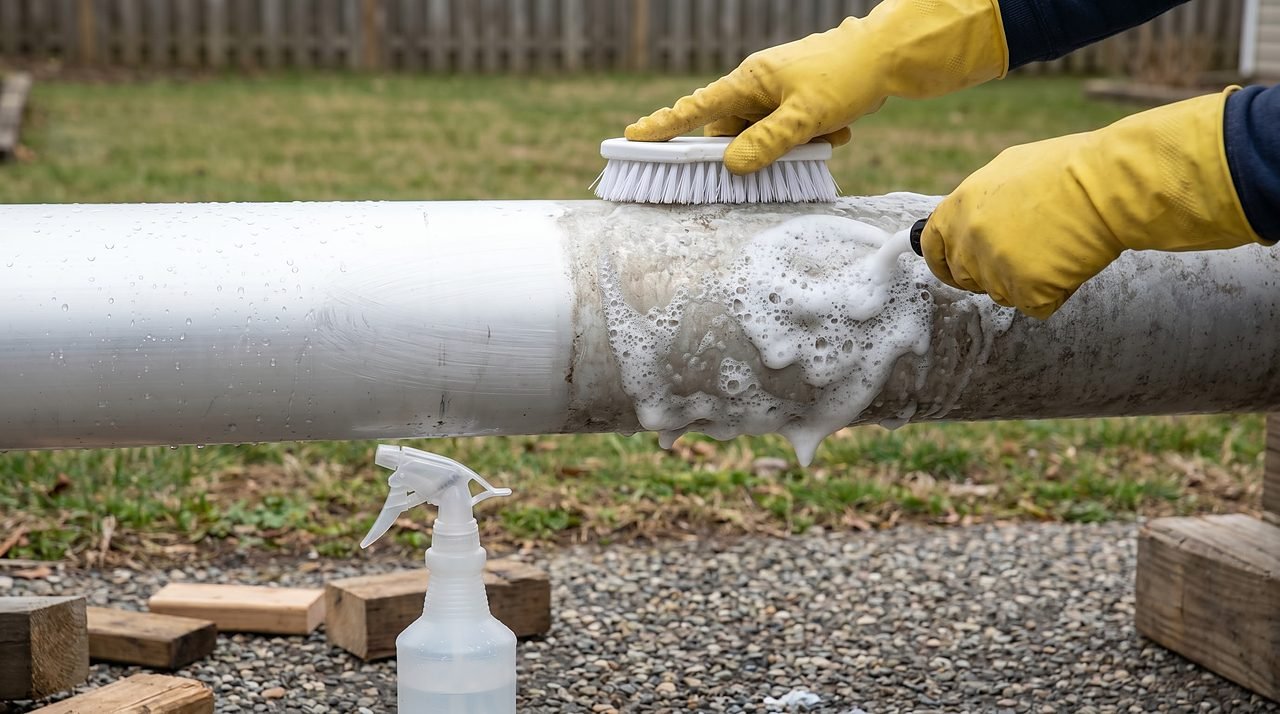

The chemical-first approach works best on pontoon tube oxidation because of the surface area involved. Apply an aluminum cleaner designed for pontoons in small sections, let it foam briefly (not dry), scrub with a soft nylon brush, and rinse immediately. Stubborn horizontal water line stains respond to a second application held slightly longer - but never past 2 to 3 minutes without rinsing, and watch the edges of the section carefully. Concentrated acid runs at the lower edge of your working section and can streak if not rinsed promptly.

After cleaning, protect the above-water sections with a dedicated aluminum polish or a wax rated for bare metal. Carnauba wax on bare aluminum is better than nothing but does not bond well; a polymer sealant formulated for metal gives longer protection. Products designed specifically for bare aluminum - such as Star brite Aluminum Polish with PTEF or 3M Marine Metal Restorer and Polish - include polymer protectants that outlast carnauba on bare metal by several months in UV exposure. Apply after the cleaning and brightening step while the surface is still clean and dry, and reapply at the start of each season.

For the below-waterline sections of pontoon tubes, the same antifouling rules apply as for any aluminum hull: copper-free only, over a proper epoxy primer. Many pontoon owners skip antifouling entirely on freshwater lakes with low fouling pressure and rely on seasonal cleaning instead. On saltwater or high-fouling freshwater systems, a copper-free antifouling coat on a properly primed tube is the better long-term choice.

If the tubes show pitting deeper than surface oxidation - small craters or channels in the metal - that is corrosion that has gotten past the oxide layer. Shallow pitting can be left stable once the source is removed (correct the anode, remove any contact with dissimilar metals). Deep pitting that has penetrated the tube wall, or areas where the metal flexes under hand pressure, needs welding before any paint work. Paint over a structurally compromised tube does not fix it.
